V70 Line-Interactive UPS – Shipping January 2027
700VA–1500VA 120VAC
Short-Depth Rackmount UPS
Compact, shallow-depth UPS power designed for entry-level servers, networks, retail POS, VoIP, AV, and security systems in space-constrained and regulated environments.
700–1500 VA · 120VAC · Short-Depth Line-Interactive Rack UPS
New · Shipping January 2027
V70 short-depth rackmount UPS
The V70 Series is a short-depth rackmount UPS for shallow racks, wall-mount enclosures, and space-constrained IT environments where traditional rack UPS systems don’t fit. It delivers cost-effective line-interactive power protection with automatic voltage regulation (AVR) in a compact, TAA-compliant form factor — compliance with the Trade Agreements Act is uncommon in this short-depth, value class — built for regulated distributed IT, AV, security, retail POS, and edge deployments.
V70-1500: 1440 VA / 900 W in a 2U chassis, 10.5 in deep.
Plan with the UPS selector →
Dependable, cost-effective protection in a shallow chassis
Line-interactive topology with automatic voltage regulation corrects under- and over-voltage conditions without unnecessary battery use (five of the ten common power problems), extending battery life and maintaining uptime. With a short-depth chassis, included mounting hardware, and optional remote monitoring, the V70 simplifies deployment in IDF closets, AV cabinets, retail enclosures, kiosks, and security head-ends — without the depth and complexity of legacy rack UPS systems.
A 9-inch-deep chassis for shallow racks and wall-mount cabinets; the 700 VA model is a space-saving 1U.
Rack and wall-mount brackets included; tower pedestals on the 1000 and 1500 VA models for flexible installation.
Stabilizes sags and swells without switching to battery, with a simulated sine wave output for everyday loads.
A front-panel LCD shows load, battery, and status; an optional Web/SNMP card adds remote monitoring and alerts.
Easy, on-site battery replacement and auto-restart after a full discharge when utility power returns.
Advanced surge suppression plus a $25,000 connected-equipment protection policy (USA and Canada) for attached devices.
The short-depth, value line-interactive option

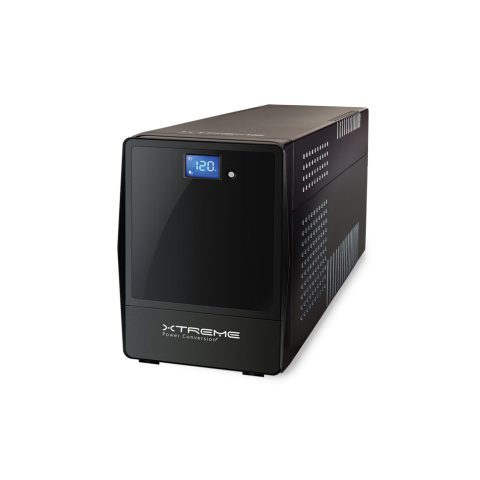

The V70 sits in the line-interactive tier of the Xtreme Power distributed UPS portfolio — a step up from the entry S71 in features and rack/wall/tower flexibility, with the pure-sine-wave P80 above it. The portfolio steps up by topology overall, from standby through line-interactive to online and lithium.
Need more capacity in this topology? See the larger P80 line-interactive UPS →
Three short-depth models

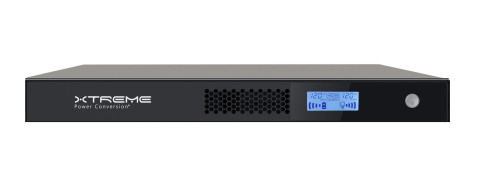

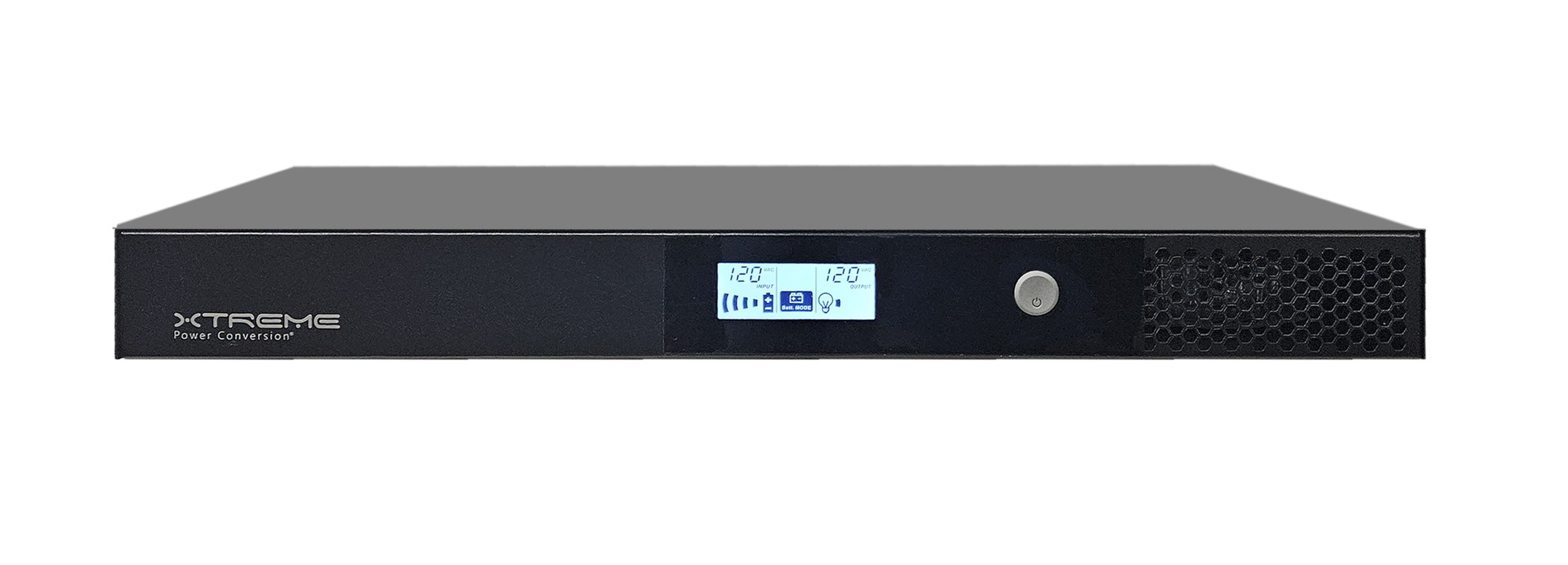

The V70-700 is a 1U chassis, 9.2 in deep (shown); the V70-1000 and V70-1500 ship in a 2U chassis.
| Model | Capacity | Chassis | Depth | Outlets | Battery |
|---|---|---|---|---|---|
| V70-700 | 700 VA / 420 W | 1U | 9.2 in | 6 × NEMA 5-15R | (2) 6V 10Ah |
| V70-1000 | 1000 VA / 600 W | 2U | 9 in | 8 × NEMA 5-15R | (1) 12V 10Ah |
| V70-1500 | 1440 VA / 900 W | 2U | 10.5 in | 8 × NEMA 5-15R | (2) 12V 9Ah |
Confirm datasheet for a specific configuration.
Estimated runtime by load
| System load →Model ↓ | 70 VA42 W | 100 VA60 W | 150 VA90 W | 250 VA150 W | 350 VA210 W | 500 VA300 W | 600 VA360 W | 700 VA420 W | 1000 VA600 W | 1200 VA720 W | 1500 VA900 W |
|---|---|---|---|---|---|---|---|---|---|---|---|
| V70-700 | 120 | 60 | 43 | 23 | 13 | 8 | 7 | 4.5 | — | — | — |
| V70-1000 | — | 60 | 43 | 23 | 13 | 8 | 7 | 4.5 | 2.5 | — | — |
| V70-1500 | — | — | 80 | 40 | 27 | 18 | 14 | 11 | 7 | 4.5 | 3 |
Runtimes in approximate minutes. Actual runtime varies with battery age, temperature, and load. Size it with the UPS selector →
Built for short-depth deployments
The V70 suits short-depth UPS applications across commercial, AV, and IT environments where depth, mounting flexibility, and compliance matter.
Protect AV racks, displays, and processing equipment in shallow cabinets.
Backup for control processors and smart-home systems.
Maintain uptime for voice and network services.
UPS for cameras, DVRs/NVRs, and firewalls.
Protect switches, routers, and wireless access points.
Prevent POS, kiosk, and signage downtime in retail and hospitality.

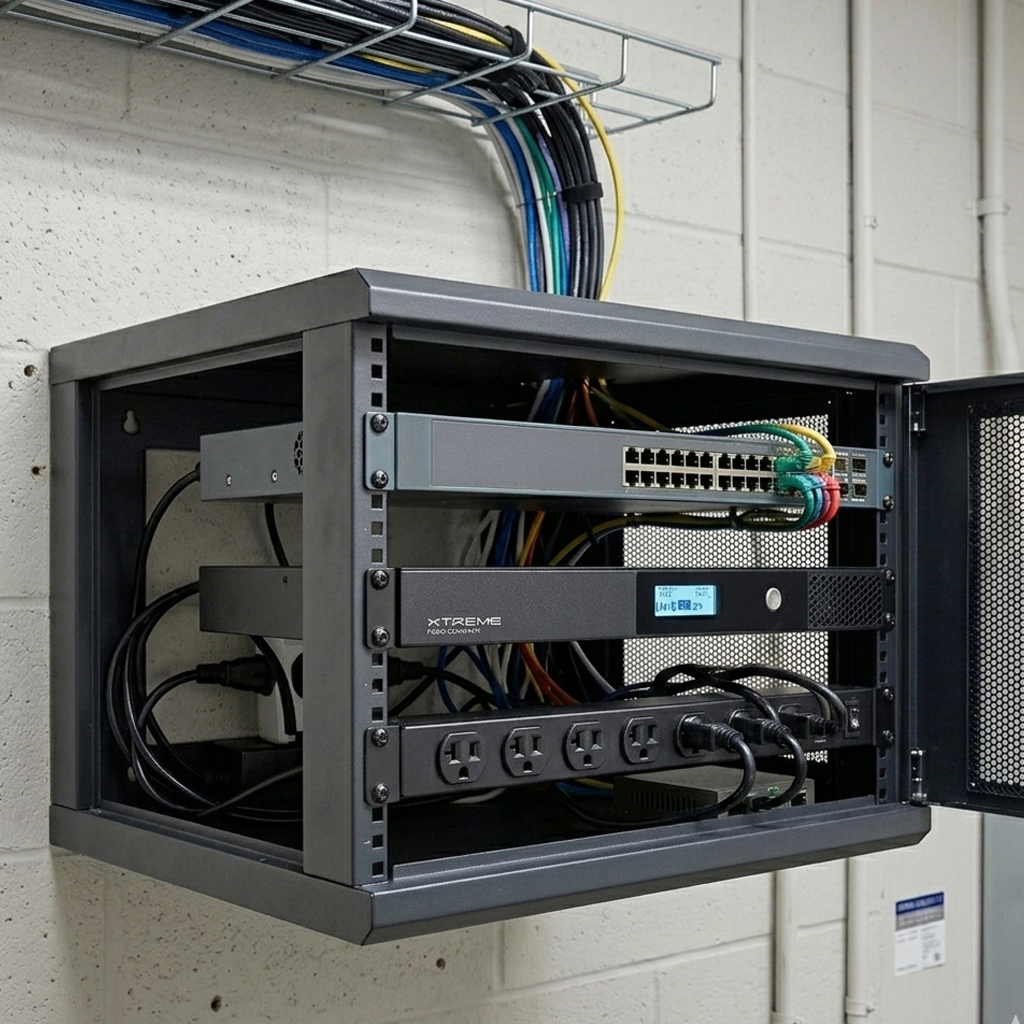

V70-700 mounted in wall mount shallow depth rack
V70 specifications
| Topology | Line-interactive with automatic voltage regulation (AVR) |
| Capacity | 700 VA / 420 W · 1000 VA / 600 W · 1440 VA / 900 W |
| Output waveform | Simulated sine wave |
| Input voltage | 120 VAC nominal, 82–148 VAC range, 50/60 Hz auto-sensing |
| Output voltage | 120 VAC |
| Transfer time | 2–6 ms typical |
| Chassis depth | 9.2 in (700 VA), 9 in (1000 VA), 10.5 in (1500 VA); width 17.2 in |
| Form factor | 1U (700 VA) / 2U (1000 & 1500 VA); rack, wall, or tower |
| Display | Smart front-panel LCD (load, battery, status, alarms) |
| Battery | Sealed, maintenance-free lead-acid (VRLA); 4–6 h recharge to 90% |

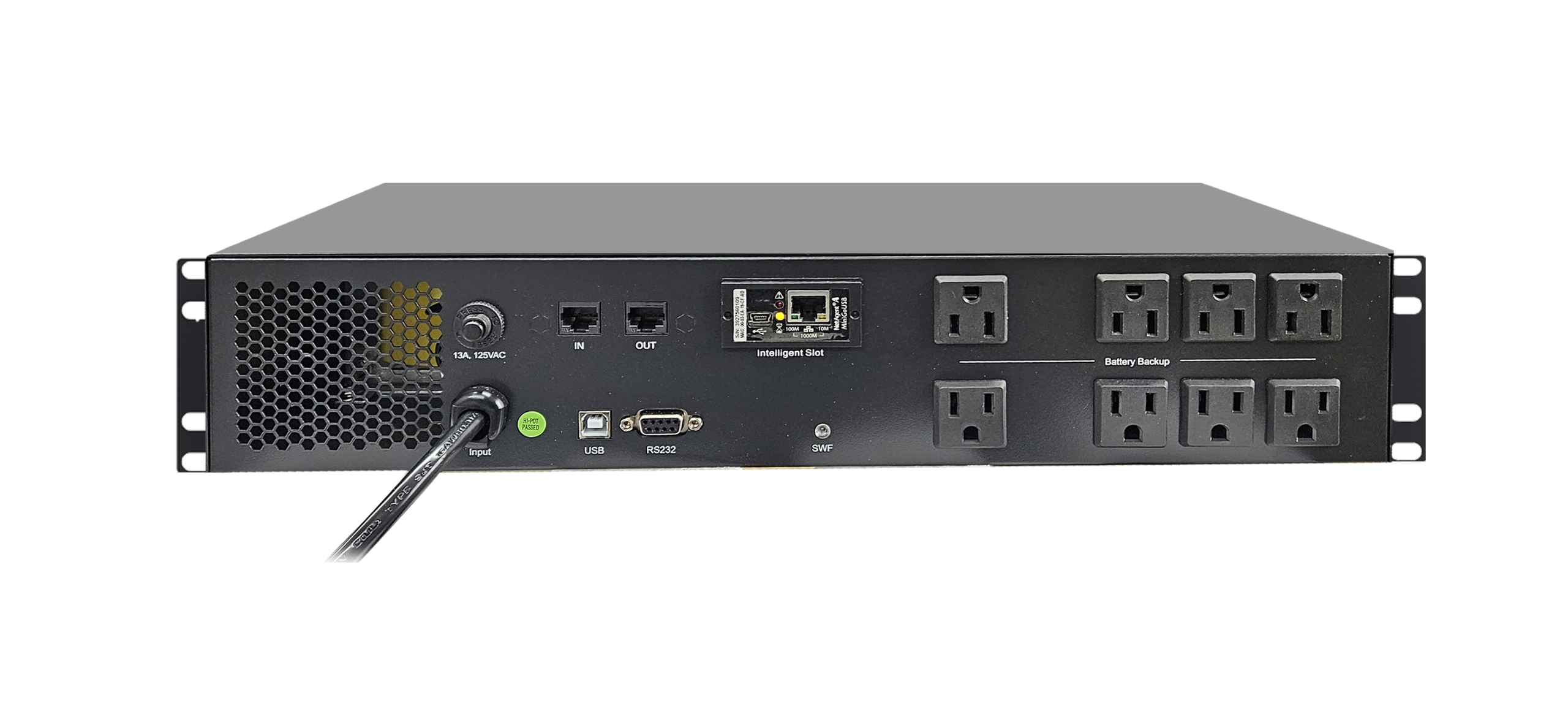

| Communications | RS-232 and HID USB; slot for optional Web/SNMP card; RJ45 data-line protection |
| Operating environment | 0–40 °C (32–104 °F), < 45 dBA, up to 6,500 ft |
| Efficiency (DOE) | Average load-adjusted efficiency 98.9% (V70-700), 98.7% (V70-1000), 99.0% (V70-1500); up to 99.1% at full load; 2.8–4.4 W at no load |
| Approvals | cTUVus (UL 1778), RoHS, FCC Class B, DOE certified (10 CFR Part 430), TAA compliant |
| Warranty | 3-year electronics / 3-year battery (USA & Canada); optional 5-year extended |
| Availability | Shipping January 2027 |
Options: 5-year extended warranty, bypass distribution module (XBDM), power distribution unit (XPDU). Includes a $25,000 connected-equipment protection policy.
V70 short-depth UPS — frequently asked questions
What makes the V70 short-depth, and why does that matter?
Chassis depth of 9 to 10.5 inches, against roughly 15 to 24 inches for a conventional rack UPS. That is what lets it fit a shallow wall-mount rack, an AV cabinet, or a network closet enclosure where a standard-depth unit physically will not go. Depth, not capacity, is usually the constraint in those locations.
Is the V70 1U or 2U?
Both, depending on model. The V70-700 is a 1U chassis at 9.2 inches deep. The V70-1000 and V70-1500 are 2U, at 9 and 10.5 inches deep respectively. Confirm the depth against your enclosure before ordering, since the 2U models differ from each other.
Does the V70 produce a pure sine wave output?
No, it produces a simulated sine wave, which suits everyday IT and network loads. If the load has an active power factor corrected supply, or is an instrument or AV component that is sensitive to waveform shape, specify the P80 for pure sine wave output instead.
What is the difference between the V70 and the P80?
Waveform and capacity. The V70 is simulated sine wave up to 1440 VA in a short-depth chassis. The P80 is pure sine wave, spans 800 to 3000 VA, converts between rack and tower, and supports external battery packs for extended runtime. Choose the V70 when depth is the constraint; choose the P80 when waveform quality or runtime is.
Does the V70 replace the V80?
Yes. The V70 supersedes the V80, which is discontinued. If you are supporting an installed base of V80 units, the V70 is the current equivalent.
How much runtime does the V70 provide?
See the runtime table above for estimated minutes by load. The V70 carries internal batteries only, with no external pack option, so runtime is fixed by model. If you need to extend runtime, the P80 supports external battery packs.
Is the V70 TAA compliant?
Yes. The V70 is compliant with the Trade Agreements Act, alongside cTUVus (UL 1778), RoHS, FCC Class B and DOE certification. TAA compliance is uncommon in the short-depth value class, where most of the field is not eligible for federal or institutional procurement at all. If a shallow rack has to be filled on a government or education contract, that combination narrows the options considerably.
Is the V70 DOE certified, and how efficient is it?
Yes. All three models are certified to the U.S. Department of Energy efficiency standard for UPS (10 CFR Part 430), required for UPS sold in the U.S. with a NEMA 5-15P plug. Tested to the DOE procedure, the average load-adjusted efficiency is 98.9% for the V70-700, 98.7% for the V70-1000 and 99.0% for the V70-1500, each above its DOE minimum, with up to 99.1% at full load and 2.8 to 4.4 W at no load.
Documents and related links
Planning a 2027 project or refresh?
The V70 is available now for early specification, budgeting, and design-in. Our team can help size and plan the right UPS for shallow racks, AV systems, retail, and distributed IT.
