XPDS Rack Surge Power Distribution Unit / PDU
15A, 20A
120V
Rack-mount PDU with surge protection for Audio-Visual, Telecom, and Security Equipment
15A / 20A · 120VAC · Surge-Protected Rack Power Distribution

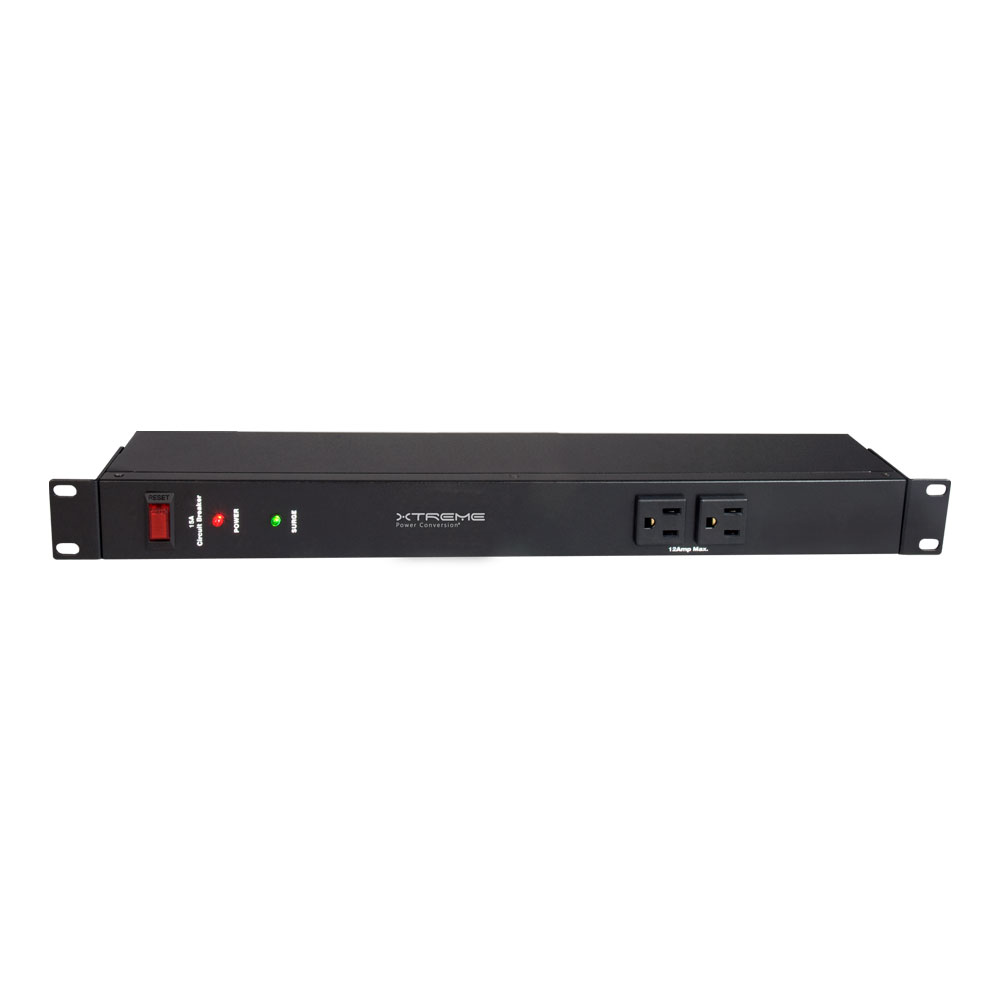

XPDS surge rack power distribution unit
The XPDS Series delivers professional-grade surge protection and rack power distribution for AV systems, telecom equipment, networking hardware, and security installations. A 342-joule suppression circuit absorbs transient spikes, a front-panel green LED confirms protection is active, and 10 outlets (2 front, 8 rear) distribute power in either a 1U rackmount or 0U vertical configuration – in a rugged steel enclosure with a UL1077 branch breaker and a 3-year full warranty.
Professional-grade rack surge protection
Engineered for demanding installations, the XPDS safeguards critical electronics by absorbing energy spikes caused by storms and electrical surges, while distributing clean power across 10 receptacles. It protects sensitive AV, IT, telecom, and security devices from the transient surges and noisy circuits that cause failures and downtime – combining surge suppression, power distribution, and real-time surge-status monitoring in a single compact 1U or 0U unit. A rugged steel enclosure and UL-listed branch breaker make it a smarter alternative to basic power strips and low-grade surge bars.
What the XPDS delivers
A front green LED confirms the surge circuit is active and protecting; when it extinguishes, the suppressor has taken a catastrophic surge and needs replacement.
Absorbs transient surges and spikes to protect mission-critical AV, IT, telecom, and security equipment.
Ten total receptacles split front and rear for easy access and flexible cable management.
Integrated branch-circuit breaker with a protective cover increases electrical safety.
A durable metal chassis withstands commercial and industrial environments.
Fits 1U rackmount rails or 0U vertical mounting in cabinets and closets.
Know your protection is working
Unlike basic surge strips that fail silently, the XPDS continuously monitors its own suppression circuit. The front green LED stays lit while protection is active. If the LED is not illuminated, the suppressor has absorbed one or more catastrophic surges and the unit needs to be replaced – a clear, immediate visual cue rather than an unprotected device you cannot see.
Two models, 15A or 20A
| Model | Input (cord / plug) | Output receptacles | Voltage | Breaker | Dimensions (W×D×H) | Weight |
|---|---|---|---|---|---|---|
| XPDS1015HV | 12 ft, 5-15P | (10) 5-15R | 120V | 15A | 19 × 3.75 × 1.7 in (1U) | 4.4 lb |
| XPDS1020HV | 12 ft, L5-20P | (10) 5-15/20R | 120V | 20A | 19 × 3.75 × 1.7 in (1U) | 4.6 lb |
Specifications from the XPDS datasheet (Rev 10/16/25). Both models are 120V, 1U (19 × 3.75 × 1.7 in), with 10 receptacles (2 front, 8 rear), a 342-joule suppression circuit, and front-panel surge-status LED. The 20A model adds 5-15/20R combination outlets.
Inputs, outputs, and mounting
Where the XPDS fits
The XPDS is the surge-protected distribution layer within a rack power architecture – adding monitored MOV suppression to standard rack distribution. Choose the basic XPDU when surge protection is not required, the XPDS when sensitive AV, security, or edge electronics need transient protection, and the intelligent SPDU when you need per-outlet switching, metering, and remote reboot.
Where the XPDS is deployed
Protect amplifiers, switchers, mixing consoles, and digital signage from voltage spikes.
Reliable, surge-protected power for always-on displays and unattended installations.
Dependable power for cameras, NVRs/DVRs, door controllers, and sensors.
Safeguard switches, routers, access points, and telecom gear.
Ideal for IDF cabinets, small server racks, and edge-compute hardware.
Protects sensitive electronics in harsh or unpredictable power environments.
XPDS specifications
| Specification | Detail |
|---|---|
| Type | Surge-protected rack power distribution unit |
| Available models | XPDS1015HV (15A) / XPDS1020HV (20A) |
| Input voltage | 120 VAC, single phase |
| Input connection | 12-ft cord; 5-15P (15A) / L5-20P (20A) |
| Surge energy rating | 342 joules |
| Outlets | 10 total (2 front, 8 rear); 5-15R (15A) / 5-15/20R (20A) |
| Circuit protection | UL1077 branch breaker with protective cover |
| Surge status | Front-panel green LED indicator |
| Mounting | 1U rackmount or 0U vertical |
| Chassis | Industrial-grade metal housing |
| Dimensions | 19 × 3.75 × 1.7 in (1U) |
| Weight | 4.4 lb (15A) / 4.6 lb (20A) |
| Certifications | UL 1449, cUL, CE; UL1077-listed branch breaker |
| Warranty | 3 years, full (USA & Canada); surge suppressor replaced free under warranty |
Documents and related products
Protect your business
Protect your AV, telecom, and security equipment with the XPDS Series Rack Surge PDU – the professional standard for reliable surge suppression and rack power distribution. Xtreme Power supports integrators and IT teams with surge strategy, rack power design, and deployment standardization.
