JX Series Isolation Transformer Power Conditioner
200VA
120VAC
Protect point-of-sale systems, medical equipment, and other sensitive electronics with advanced isolation transformer technology.
Isolation Transformer Power Conditioner · 200VA · 120VAC

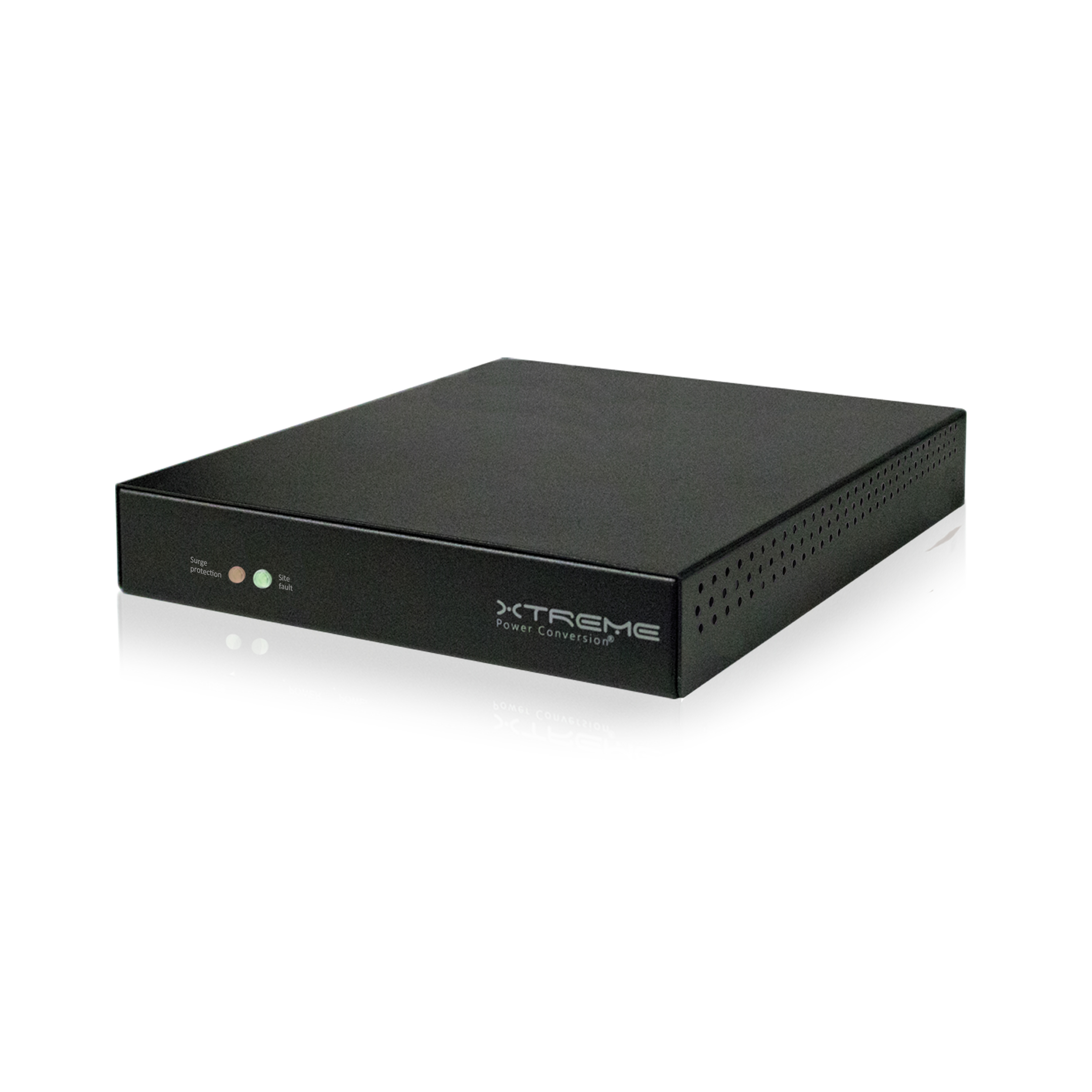

JX Series Isolation Transformer Power Conditioner
The Xtreme Power JX Series delivers clean, isolated power for sensitive electronics in POS systems, kiosks, Starlink equipment, security cameras, DVRs, and embedded devices. Its ultra-slim flat-pack design and toroidal isolation transformer provide superior noise filtering, surge suppression, and common-mode noise elimination — ideal for tight installations where conventional transformers won’t fit.
Clean, isolated power in an ultra-slim package
Using a toroidal isolation transformer with neutral-to-ground bonding, the JX eliminates ground-loop interference and prevents equipment resets caused by electrical noise. The flat-pack enclosure is just 1.25 inches tall, and included mounting brackets allow installation on walls, under counters, inside enclosures, or in rack environments — fitting applications where conventional transformers are simply too large.
What a common mode noise problem looks like
Nobody searches for an isolation transformer. They search for the symptom. If any of these describe the site, the underlying condition is usually common mode noise or a ground loop, and neither a surge strip nor a bigger UPS will touch it.
- Terminals that lock up or rebootA POS lane or kiosk that freezes intermittently with no software cause, often worse at certain times of day or when other equipment cycles.
- Hum through speakersConstant low-frequency hum in an audio or paging system that does not change with source or volume.
- Bars drifting through videoFaint horizontal bands moving through a display, signage panel, or camera feed.
- Noise that appears on connectionEquipment behaves until it is cabled to something on another circuit, then the trouble starts.
- Card readers and scanners misreadingIntermittent read failures on peripherals sharing a circuit with motors, compressors, or lighting dimmers.
- Symptoms that follow the outletMove the equipment to a different circuit and the problem changes or disappears. That points at the ground reference, not the device.
Common mode noise is measured between ground and either neutral or line. It is the tenth of the ten common power problems and the only one that filtering, voltage regulation, and even online double-conversion do not address. Breaking the path takes galvanic separation, which is what the JX-200 provides.
One caution on diagnosis. A ground-lift adapter will often make the symptom disappear, and it does so by defeating a safety ground — a code violation and a shock hazard. Use it as a test only. If lifting the ground clears the problem, you have confirmed common mode noise and an isolation transformer will fix it properly.
Engineered for noise-sensitive electronics
Just 1.25 inches tall — fits kiosks, POS stations, under counters, and enclosures where conventional transformers won’t.

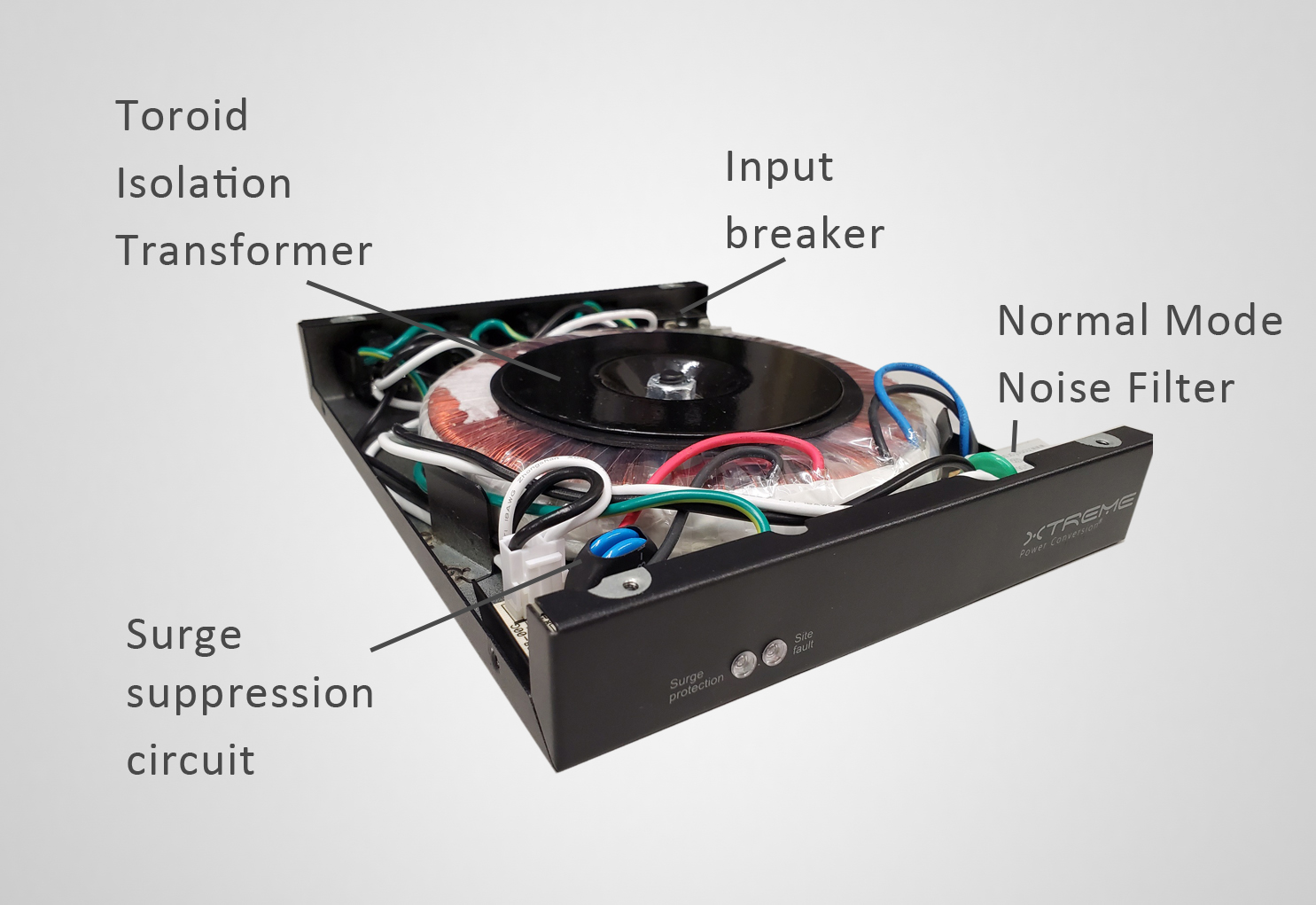

Provides complete line isolation for sensitive electronics, with superior electrical-noise filtering in a compact toroidal core.
Removes electrical noise from the line — let-through under 10 V normal mode and under 0.5 V common mode.
An included surge diverter protects connected devices from voltage spikes and electrical transients.
Eliminates ground-loop interference and stabilizes noisy circuits — preventing equipment resets and video distortion.
Detachable brackets for wall, rack, under-counter, or enclosure mounting — hardware ships in the box.
Where the JX Series is deployed
The JX Series is engineered for equipment that requires stable, noise-free, surge-protected isolated power:
- POS terminals & registers — prevents transaction errors and electrical interference
- Starlink & connectivity equipment — surge-protected, noise-free power for routers and antennas
- Kiosks & ATMs — shields displays, card readers, and embedded controllers from electrical noise
- Security cameras, DVRs & NVRs — eliminates ground loops that cause video distortion and dropouts
- Instrumentation & medical devices — stable isolated power for sensitive measurement and monitoring equipment
- Embedded electronics & AV systems — ideal for compact, noise-sensitive applications
Related deployment guides
JX-200 specifications
| Specification | Detail |
|---|---|
| Model | JX-200 |
| Type | Isolation transformer power conditioner (toroidal) |
| Capacity | 200 VA (200 W) |

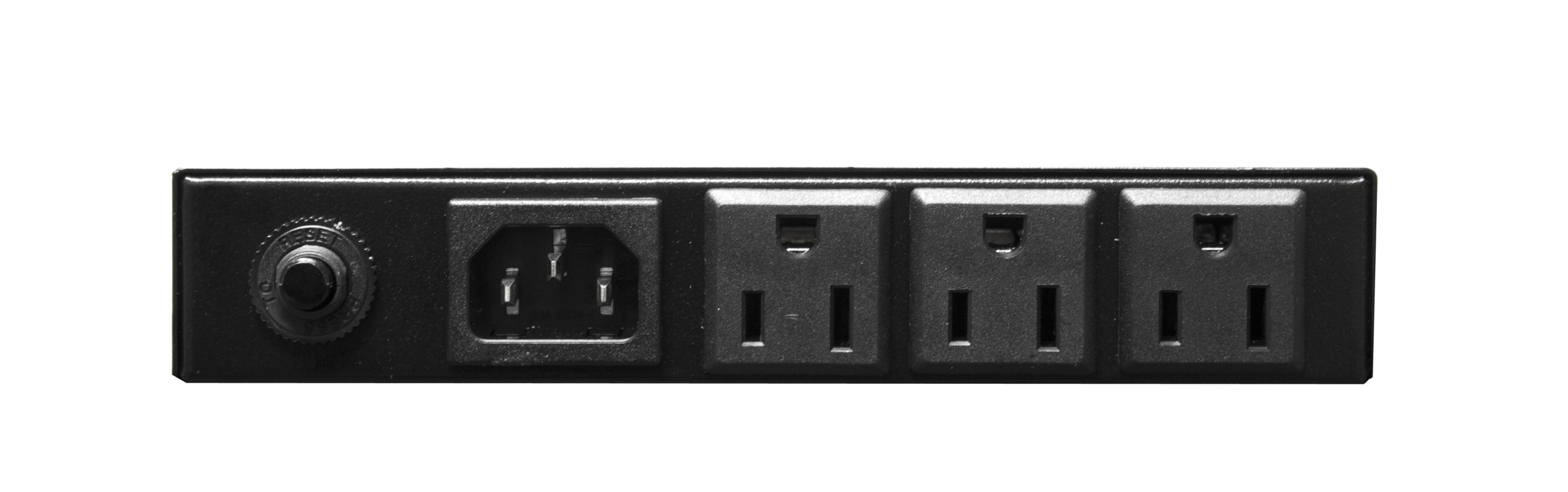

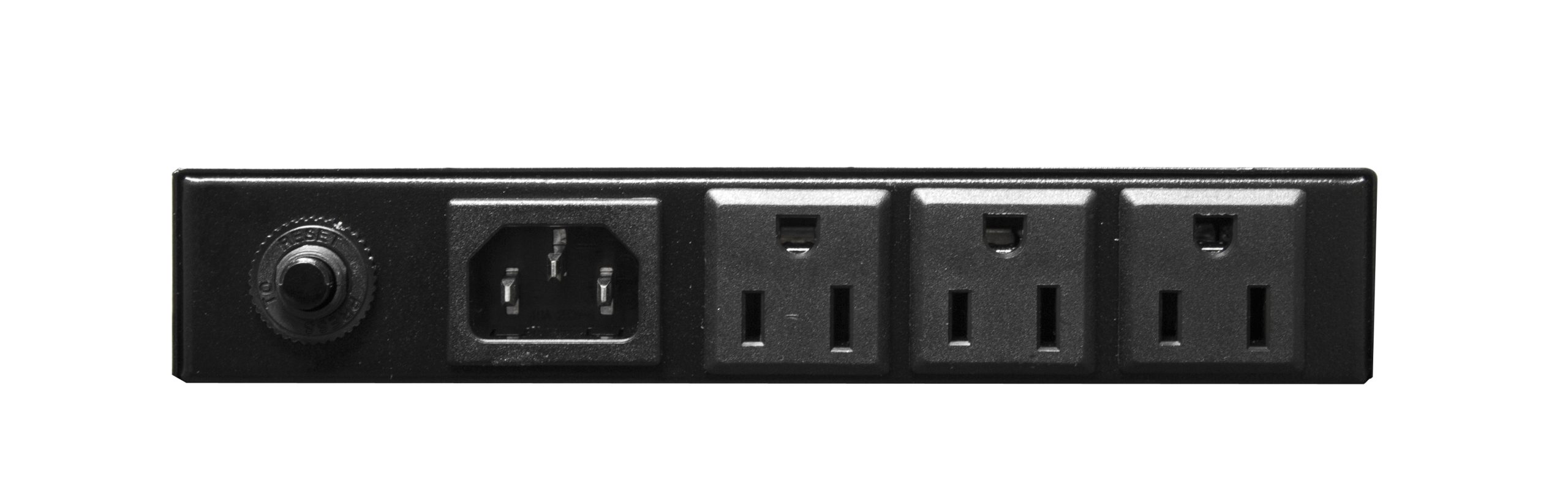

| Input | 120 VAC, 50/60 Hz; 5 A / 125 VAC breaker |
| Output | 120 VAC, 50/60 Hz; surge diverter included |
| Let-through noise | <10 V normal mode · <0.5 V common mode |
| Isolation | Toroidal isolation transformer with neutral-to-ground bonding |
| Receptacles | (3) NEMA 5-15R |
| Line cord | C13 to 5-15P |
| Dimensions (W×D×H) | 6.9 × 8.5 × 1.25 in (175 × 216 × 32 mm); wall-mount brackets add 0.6 in per side |
| Weight | 6.6 lb (3.0 kg) |
| Indicators | 2 LEDs (green / red) |
| Operating temp | 32–104 °F (0–40 °C) |
| Humidity / altitude | 0–95%; up to 11,500 ft |
| Certifications | UL 60950-1, CE, RoHS |
| Included in box | Detachable mounting brackets, user manual |
| Options | Offset right-angle 5-15P line cord, DIN-rail mounting kit |
| Warranty | 5 years (USA & Canada) |

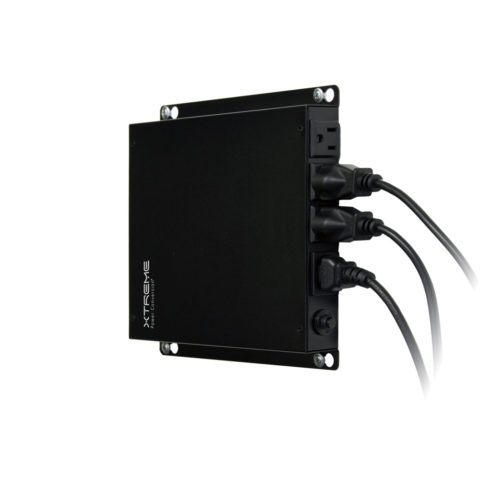

Pairs with the J60-350 for isolated backup power
The JX-200 conditions and isolates, but it does not hold the load up in an outage. Where the equipment needs both, the J60-350 is the matched partner: it was designed to the same footprint, so the two stack or wall-mount as one slim assembly rather than as two unrelated boxes.
JX-200 with a J60-350
| Component | Role | Rating | Notes |
|---|---|---|---|
| J60-350 | Battery backup | 350 VA / 200 W | LiFePO₄, rated to 50 °C, TAA compliant, wall or DIN-rail, 5-year warranty |
| JX-200 | Isolation and conditioning | 200 VA / 200 W | Toroidal transformer, neutral-to-ground bonding, 1.25″ profile, 5-year warranty |
Both are 200 W devices. The VA figures differ only because VA and watts diverge on low power factor loads, which is largely a legacy of older equipment. Size the protected load at 200 W and the pair is matched.
Wire the JX-200 downstream. Utility feeds the J60-350, the J60-350 output feeds the JX-200, and the protected equipment plugs into the JX-200. Putting the transformer upstream would clean the power going into the UPS, which is not the problem it solves. Full detail on sizing and wiring is on the UPS with isolation transformer page.
Comparing the JX-200 to other platforms
Certifications
Documentation
Protect your sensitive electronics
The JX Series is the most compact, reliable way to deliver clean, isolated, surge-protected power in POS, kiosk, Starlink, and security environments. Talk to a specialist about specification and design-in.
JX-200 isolation transformer — frequently asked questions
Is the JX-200 TAA compliant?
No. The JX-200 is not TAA compliant. Note that the J60-350 it pairs with is, so on a regulated contract the two halves do not carry the same answer and the pair is not eligible. Where a TAA-required project needs isolation, the TX91 family carries the isolation transformer inside a TAA-compliant UPS, which gives you one part number and one compliance answer.
What does an isolation transformer do that a surge suppressor does not?
A surge suppressor clamps voltage spikes. An isolation transformer separates the load from the supply entirely: primary and secondary share no copper, so power crosses as magnetic flux. That breaks the common-mode path between source and load, gives the equipment its own neutral-to-ground reference, and blocks DC riding on the incoming supply. Common mode noise is the one condition on the list of ten common power problems that filtering and even double conversion do not address.
Does the JX-200 provide battery backup?
No. It conditions and isolates, but the load drops when utility power does. Where the equipment needs both, pair it with a J60-350 upstream. The two were designed to the same footprint so they stack or wall-mount as one assembly, and both are 200 W devices.
The J60-350 is 350 VA and the JX-200 is 200 VA. Do they match?
Yes, on the number that matters. The J60-350 is 350 VA / 200 W and the JX-200 is 200 VA / 200 W. Both are 200 W. The VA figures differ because VA and watts diverge on low power factor loads, which is mostly a legacy of older equipment. Size the protected load at 200 W and the pair is matched.
Where does the JX-200 go in the power chain?
Downstream of any UPS, immediately before the load. Isolation is established at the transformer output and nowhere else, so the protected equipment should plug directly into the JX-200 receptacles rather than into a strip after it. Keep it close to the equipment as well: everything past the secondary is unprotected cable that picks up interference and adds voltage drop.
Will it fix hum in an audio or AV system?
Often, yes. Hum in audio and horizontal bars in video usually trace to a ground loop between components fed from different circuits, which is common mode noise by another name. Galvanic separation breaks the loop at the source. It is the proper fix rather than lifting a ground pin, which defeats a safety ground and leaves the cause in place.
What can I run on 200 watts?
A single point-of-sale terminal, a kiosk or signage player, an automation or control processor, a network switch, a camera or DVR, or a small instrument. Add up nameplate wattage rather than working from VA ratings, and leave headroom. If the load is larger, the rack-mount isolation PDUs start at 1.5 kW.
How does it mount?

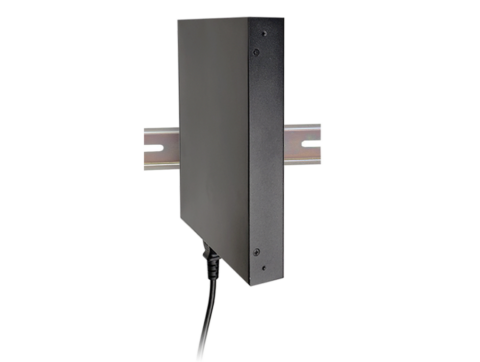

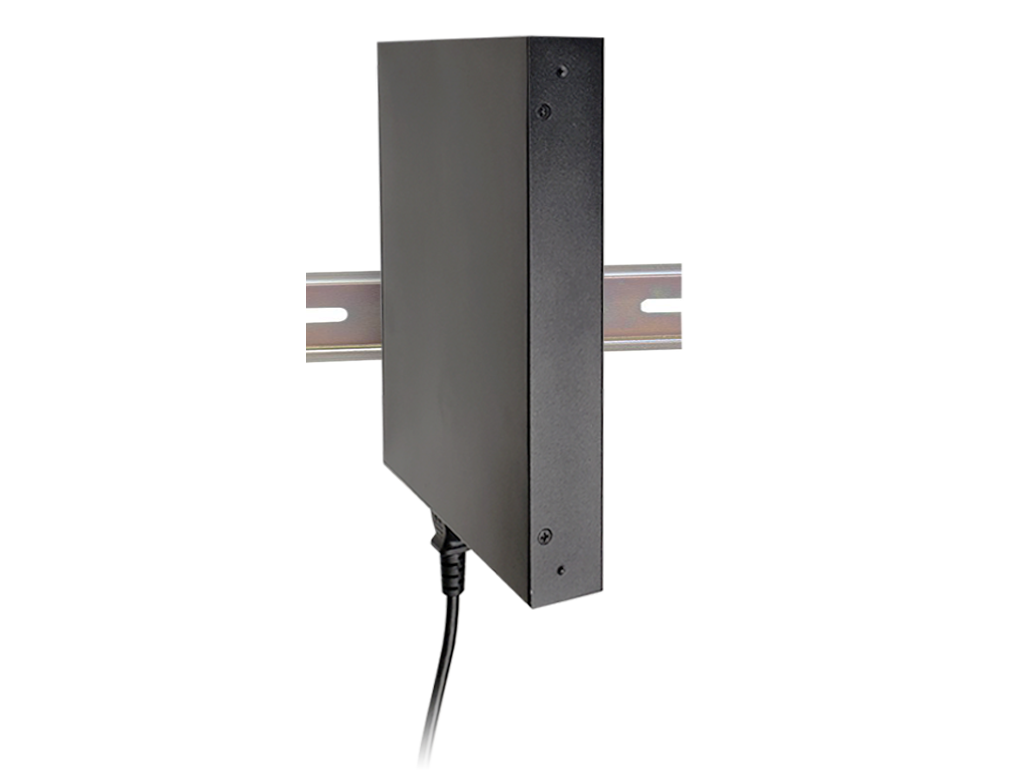

Wall, under-counter, or DIN rail. The chassis is 1.25 inches deep at 6.9 by 8.5 inches, so it fits inside millwork, behind a display, or in a structured wiring enclosure where a conventional transformer will not go. Wall-mount brackets add 0.6 inches per side.
Is there a warranty?
Five years.
