J60C / J60Ci Short-Depth Lithium Rack UPS – 1U UPS for Shallow Cabinets
600 VA | 120V / 230V | 1U Short-Depth Lithium UPS
Short-depth lithium UPS engineered for shallow cabinets, wall-mounted enclosures, and distributed edge infrastructure requiring compact deployment, long service life, and reliable rack-level power continuity.
600 VA · 120V / 230V · 1U Short-Depth Lithium UPS
J60C / J60Ci Short-Depth Lithium Rack UPS
A short-depth lithium UPS engineered for shallow cabinets, wall-mounted enclosures, and distributed edge infrastructure. At just 8.5 inches deep, the J60C fits network cabinets and AV racks where standard rack UPS platforms won’t — and LiFePO₄ batteries deliver long service life with minimal maintenance.
15-year lithium battery life in a space-saving 1U
The J60C brings lithium-ion battery technology to an 8.5-inch-deep 1U chassis — ideal for short-depth racks, with extra room left over for cable management. Its LiFePO₄ batteries last 3–4× longer than typical lead-acid, and up to 15 years of service life lowers cost of ownership by minimizing UPS maintenance.
A smart LCD adds local status and metering, and an optional Web/SNMP card provides remote management plus per-receptacle on/off control to reboot connected loads. The J60C protects small edge, retail, banking, healthcare, and education environments — and supports IDF/MDF closets, back-office, and network equipment. Learn more in the lithium UPS guide →

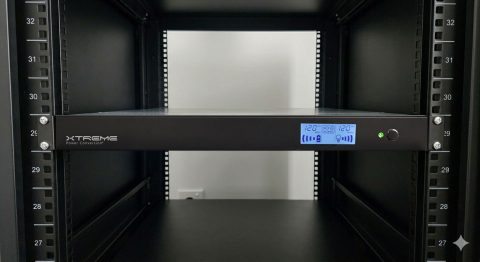

Built for shallow, space-constrained racks
8.5-inch depth
Fits shallow cabinets, wall enclosures, and other space-constrained applications where full-depth rack UPS systems can’t be installed — and leaves room for cable management.
LiFePO₄ — up to 15 years
Lithium Iron Phosphate batteries provide protection for up to 15 years or 3,000–5,000 cycles — 3–4× longer than typical VRLA — reducing replacement cycles and maintenance.

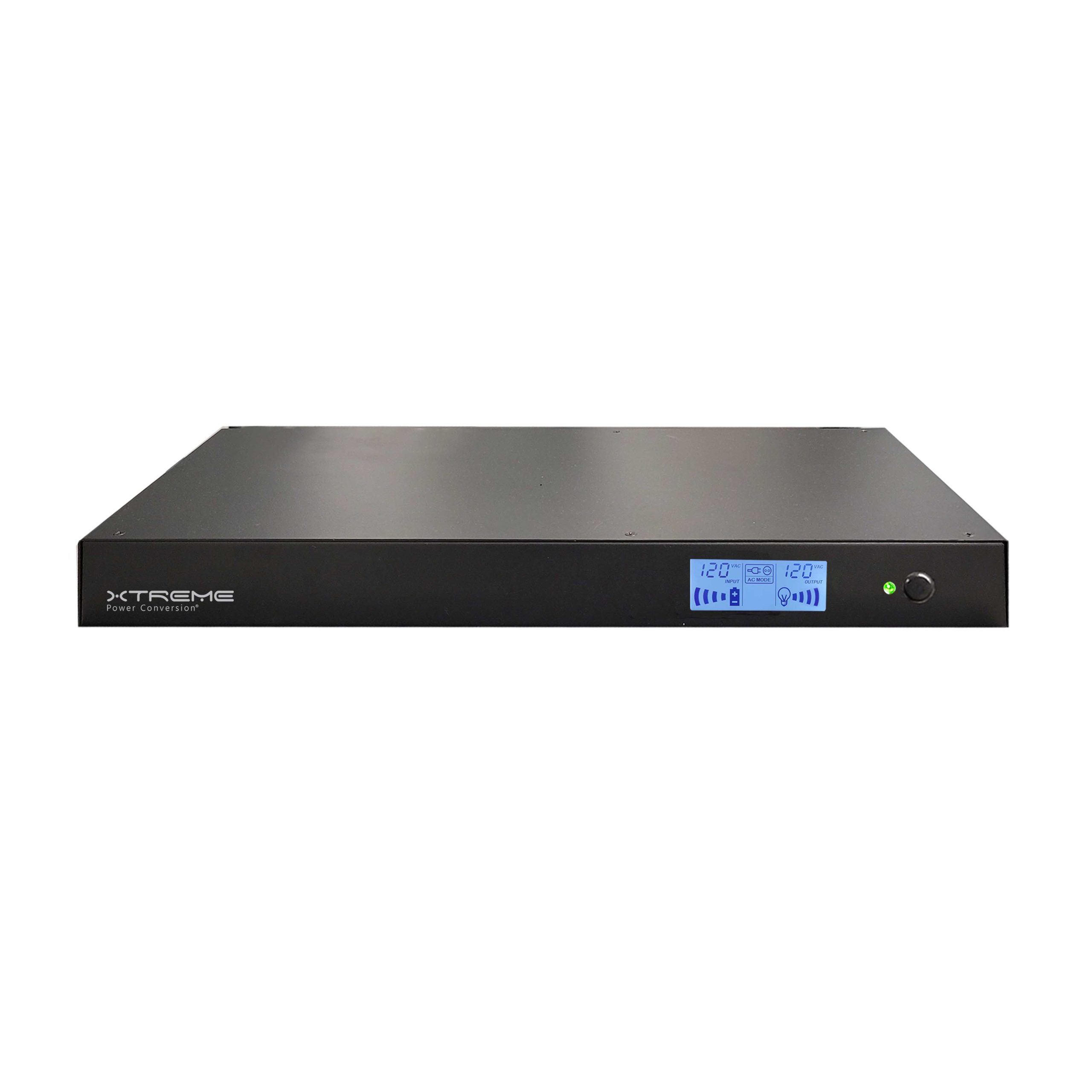

Front-panel display
The LCD delivers vital monitoring and precise UPS status and metering directly from the front panel.
Remote per-receptacle reboot
With the optional Web/SNMP card, switch J60C output power remotely to reboot connected loads — plus full UPS monitoring and management.
Temperature & humidity
An optional Environmental Monitoring Device tracks temperature and humidity at the cabinet (requires the Web/SNMP card).
Up to 98% efficiency
The J60C operates at up to 98% efficiency in normal mode, lowering utility cost and reducing heat output in enclosed cabinets.
The cabinet-level continuity layer
The J60C enables rack-level power protection where cabinet depth rules out standard UPS systems. Combining a compact 1U form factor with a short-depth design, it deploys directly inside shallow enclosures and distributed infrastructure — aligning with modern edge and network architectures where protection lives locally rather than centrally. Its standby topology delivers efficient ride-through and controlled shutdown without the cost and complexity of a larger online UPS. See the rack power architecture guide →
Where the J60C fits in the Xtreme Power lithium lineup
The J60C is the right choice when cabinet depth is the constraint — its 8.5-inch short-depth 1U fits shallow racks and wall-mount enclosures where standard UPS systems won’t. For embedded or device-level protection, consider the J60. When form factor is standard 2U rack/tower, consider the P91 Li. For high-density 1U online double-conversion, step up to the J90.
Where the J60C is deployed
The J60C is deployed across distributed environments where shallow cabinet depth limits equipment choice but reliable battery backup is still required: network closets and shallow IT racks, AV systems and media installations, security and surveillance infrastructure, retail edge systems and kiosks, and telecommunications cabinets. A 600 VA system typically supports shallow-rack equipment in the 100–300 W range, with runtime intended for ride-through and controlled shutdown. Size it with the UPS selector →
Lithium UPS for mobile AV and IT carts
The J60C’s ultra-short-depth 1U fits the shallow racks and cabinets built into mobile AV and IT carts, and LiFePO₄ chemistry handles the repeated daily discharge-and-recharge cycling that comes with carts being unplugged, moved, and reconnected. It’s the rack-integrated counterpart to the embedded J60 for cart builds that already carry rackmount equipment.
Mobile AV systems
Classroom, conference-room, training, and event carts. The short-depth 1U slots into mobile racks and cabinets that won’t accept a full-depth UPS, with quiet operation for shared spaces.
Workstation & network carts
Carts carrying rackmount switches, routers, and compute. With the optional Web/SNMP card, per-receptacle reboot power-cycles a hung device remotely — no site visit for a frozen switch.
Mobile-cart UPS guide →

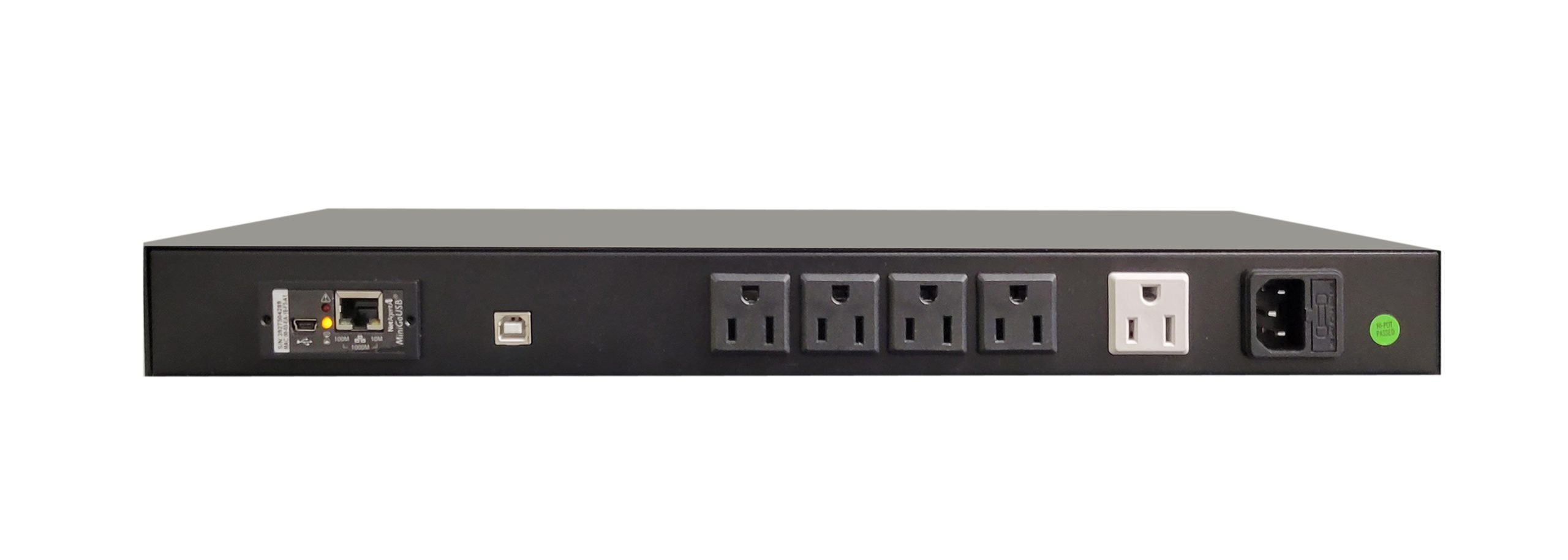

J60C-600 and J60Ci-600
Both models share the same mechanical design, LiFePO₄ battery architecture, and 600 VA / 360 W rating. Voltage and receptacle type are the primary difference.
| Model | Voltage | Receptacles | Region |
|---|---|---|---|
| J60C-600 | 120 VAC | (5) NEMA 5-15R — 4 battery backup + 1 surge only | North America |
| J60Ci-600 | 230 VAC | (5) IEC C13 — 4 battery backup + 1 surge only | International |
Full specifications
| Capacity | |
| Power rating | 600 VA / 360 W |
| Input | |
| Voltage | 120 VAC (J60C) · 230 VAC (J60Ci) |
| Frequency | 50 / 60 Hz |
| Output | |
| Topology | Standby |
| Voltage | 120 VAC (J60C) · 230 VAC (J60Ci) |
| Waveform | Sine wave (normal) · simulated sine wave (battery mode) |
| Frequency | 50 / 60 Hz |
| Power conditioning | Noise filtering and surge suppression |
| Transfer time | 2–6 ms (typical) |
| Battery | |
| Type | Lithium Iron Phosphate (LiFePO₄) |
| Configuration | (16) LiFePO₄ 18650 cells, 4400 mAh |
| Design life | Up to 15 years / 3,000–5,000 cycles |
| Physical | |
| Dimensions (W×D×H) | 17.2 × 8.5 × 1.7 in (438 × 215 × 44 mm) |
| Weight | 7.8 lb (3.5 kg) |
| Line cord | Detachable 5-15P to C13 (C14 inlet) |
| Receptacles | (5) 5-15R or (5) IEC C13 — 4 battery backup + 1 surge only |
| Environment | |
| Operating temperature | 0–40 °C (32–104 °F) · extended operation to 50 °C with reduced 2-year warranty |
| Humidity | 0–90% (non-condensing) |
| Altitude | Up to 11,500 ft |
| Efficiency | Up to 98% (normal mode) |
| Communications | |
| Standard | USB interface (cable and software included) |
| Web/SNMP card | Optional — UPS monitoring plus receptacle on/off control |
| Environmental monitoring | Optional device — temperature and humidity (requires Web/SNMP card) |
| Approvals | |
| J60C (120V) | UL-1778 · cTUVus · FCC · CE · RoHS · TAA compliant |
| J60Ci (230V) | CE · RoHS · TAA compliant |
| Warranty | |
| Coverage | 5 years electronics + 5 years battery (USA & Canada) · 2 years where ambient is 40–50 °C |
J60C / J60Ci-600 runtime by load
| Load (W) | 30 | 40 | 80 | 120 | 160 | 200 | 240 | 280 | 320 | 360 |
|---|---|---|---|---|---|---|---|---|---|---|
| Runtime (min) | 86 | 64 | 35 | 23 | 17 | 14 | 11 | 9 | 8 | 6 |
Runtimes are shown in minutes and will vary based on battery age and site conditions.
Standards & compliance
cTUVus
FCC
CE
RoHS
TAA compliant
UL-1778, cTUVus, and FCC apply to the J60C (120V); the J60Ci (230V) carries CE and RoHS. Both models are TAA compliant.
How the J60C compares
The J60C is commonly evaluated against compact rack UPS platforms such as the APC Smart-UPS SCL and Eaton 5P short-depth systems, particularly where cabinet depth is limited and lithium service life is preferred over VRLA.
View J60C comparisons →
Documents, guides & related products
Plan with confidence
Xtreme Power Conversion supports engineers, contractors, and infrastructure planners deploying UPS systems for shallow-rack environments and distributed infrastructure.
| MODEL NUMBER | J60C-600 | J60Ci-600 | |
| CAPACITY | Power rating | 600VA (360W) | 600VA (360W) |
| INPUT | Voltage | 120VAC | 230VAC |
| Frequency | 50/60Hz | ||
| OUTPUT | Voltage | 120VAC | 230VAC |
| Waveform | Sine wave (normal), simulated sine wave (battery mode) | ||
| Frequency | 50/60Hz | ||
| Power Conditioning | Noise Filtering and Surge Suppression | ||
| Transfer time | 2-6 ms (typical) | ||
| BATTERY | Battery type | Lithium Iron Phosphate (LiFePo4) | |
| Battery quantity and size | (16) LiFePO4 18650 cells, 4400mAh | ||
| PHYSICAL | Dimensions (W x D x H) | 17.2 x 8.5 x 1.7 in (438 x 215 x 44 mm) | |
| Weight | 7.8 lbs (3.5kgs) | ||
| Line cord | Detachable 5–15P to C13 | C14 inlet | |
| Receptacles | (5) 5–15R (4 battery back up + 1 surge only) | (5) IEC C13 (4 battery back up + 1 surge only) | |
| ENVIRONMENT | Temperature | 32–104°F (0–40°C) | |
| Humidity | 0–90% | ||
| Altitude | 11,500 ft above sea level | ||
| COMMUNICATIONS | Standard communications | USB Interface including cable and software | |
| INTERFACE | Web/SNMP card option | Optional Web/SNMP card providing UPS monitoring and receptacle On/Off control | |
| Environmental monitoring device | Measures temperature and humidity (requires Web/SNMP card option) | ||
| APPROVALS (pending) | UL-1778, cTUVus, FCC, RoHSCE, RoHS, TAA compliant (120V) CE, RoHS, TAA compliant (230V) | ||
| WARRANTY | 5 years electronics, 5 years battery warranty (USA & Canada)* | ||
| AVAILABLE OPTIONS | Web/SNMP card, Environmental Monitoring Device | ||
| INCLUDED IN BOX | ViewPower CD, user manual, 5–15P to C13 line cord (120VAC unit only) | ||
