Short depth rackmount UPS systems are designed for installations where standard-depth UPS equipment cannot physically fit. These systems are commonly deployed in shallow racks, wall-mounted cabinets, and distributed infrastructure environments where depth constraints limit equipment selection.
Short depth rackmount UPS systems are typically defined as systems with installation depths of less than 12 inches. This form factor enables reliable online power protection without requiring changes to rack design, making it well suited for network infrastructure, retail edge deployments, and AV systems.
Network cabling and edge infrastructure where compact UPS protection helps maintain uptime and connectivity
Compare Short Depth UPS Options
For detailed comparisons of short-depth rackmount UPS systems and competitive alternatives:
J60C UPS Comparisons
https://xpcc.com/j60c-ups-comparisons/
Why Short Depth UPS Systems Are Required
Many real-world installations cannot accommodate traditional rackmount UPS systems due to depth limitations.
Common constraints include:
- Wall-mounted network cabinets
- Shallow racks in IDF and MDF closets
- Structured wiring enclosures
- Retail and branch edge installations
- AV equipment cabinets
Standard UPS systems often exceed available depth, creating installation challenges or requiring infrastructure changes. Short depth rackmount UPS systems solve this by delivering full UPS functionality within a compact footprint.
Typical Applications for Short Depth Rackmount UPS Systems
Short depth UPS systems are used across a wide range of distributed infrastructure environments.
IDF and MDF Closets
Intermediate and main distribution frame closets frequently utilize shallow racks or wall-mounted cabinets.
Key requirements:
- Short-depth form factor
- Rack compatibility
- Reliable runtime for network continuity
Network Infrastructure
Switches, routers, and security appliances are often deployed in shallow enclosures.
Key requirements:
- Compact rackmount UPS systems
- Remote monitoring capability
- Reliable operation in distributed environments
Retail and Edge Deployments
Retail locations and distributed edge environments rely on shallow cabinets and space-constrained installations.
Key requirements:
- Compact footprint
- Reliable runtime for transactions and connectivity
- Minimal maintenance
AV Systems
AV racks and structured wiring enclosures require short-depth equipment to fit within cabinet constraints.
Key requirements:
- Quiet operation
- Compact form factor
- Clean integration with AV systems
Deployment Constraints and Considerations
Short depth UPS systems must be selected based on real installation constraints.
Typical considerations include:
- Maximum allowable rack depth
- Clearance for cabling and airflow
- Mounting type (rack, wall, or enclosure)
- Thermal environment and ventilation
- Service accessibility
Physical fit is often the primary constraint before electrical sizing.
Key Engineering Considerations
When selecting a short depth rackmount UPS system, key factors include:
- Depth compatibility with available cabinet space
- Battery technology, with lithium systems offering longer service life
- Operating temperature capability in non-conditioned environments
- Runtime requirements based on outage duration or generator transfer
- Mounting flexibility for rack or enclosure installations
- Network monitoring capability for distributed deployments
Short Depth Rackmount UPS Depth and Capacity Comparison
All systems shown are designed for shallow rack environments and maintain installation depths under 12 inches.
Short depth rackmount UPS systems are typically defined as systems with installation depths of less than 12 inches. Within this constraint, there is a direct relationship between available rack depth and output capacity.
The comparison below includes currently available systems as well as upcoming platforms, illustrating how depth, power capacity, and battery technology vary across short-depth UPS designs.
| UPS Model | Rack Height | Rack Depth | Output Capacity | Battery Technology |
| J60C-600 | 1U | 8.5″ | 600VA / 360W | LiFePO₄ Lithium |
| J60Ci-600 | 1U | 8.5″ | 600VA / 360W | LiFePO₄ Lithium |
| V70-700 | 1U | 9.2″ | 700VA / 420W | Lead-Acid |
| V70-1000 | 2U | 9.0″ | 1000VA / 600W | Lead-Acid |
| V70-1500 | 2U | 10.5″ | 1500VA / 900W | Lead-Acid |
| P91-1kLi | 2U | 11.6″ | 1000VA / 900W | LiFePO₄ Lithium |
How to Interpret Depth vs Capacity
- Ultra-shallow installations (under 9 inches) are best suited for compact 1U platforms such as J60C and J60Ci
- As depth increases toward 10–12 inches, higher capacity systems such as V70 and P91 Li become viable
- Lithium-based systems provide longer service life and improved thermal performance compared to lead-acid alternatives
- Selecting the correct platform requires balancing physical fit constraints with required runtime and load capacity
Recommended Short Depth Rackmount UPS Solutions

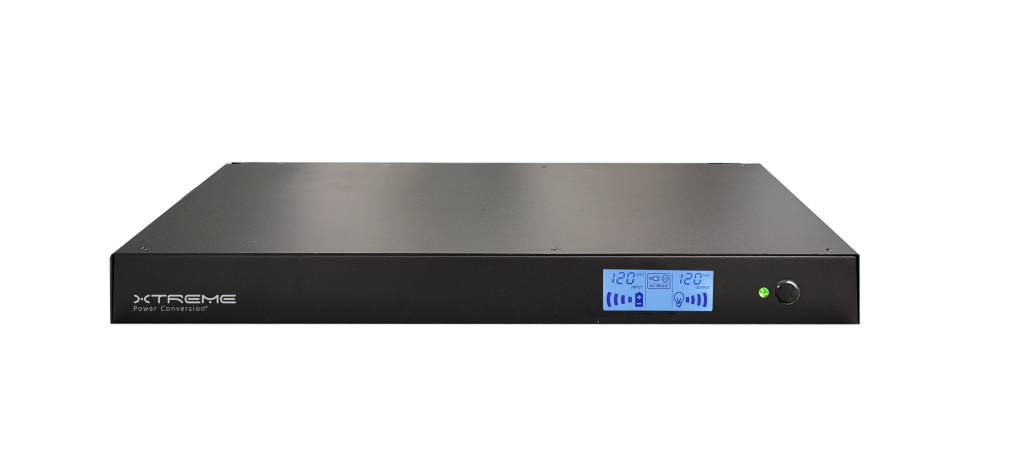

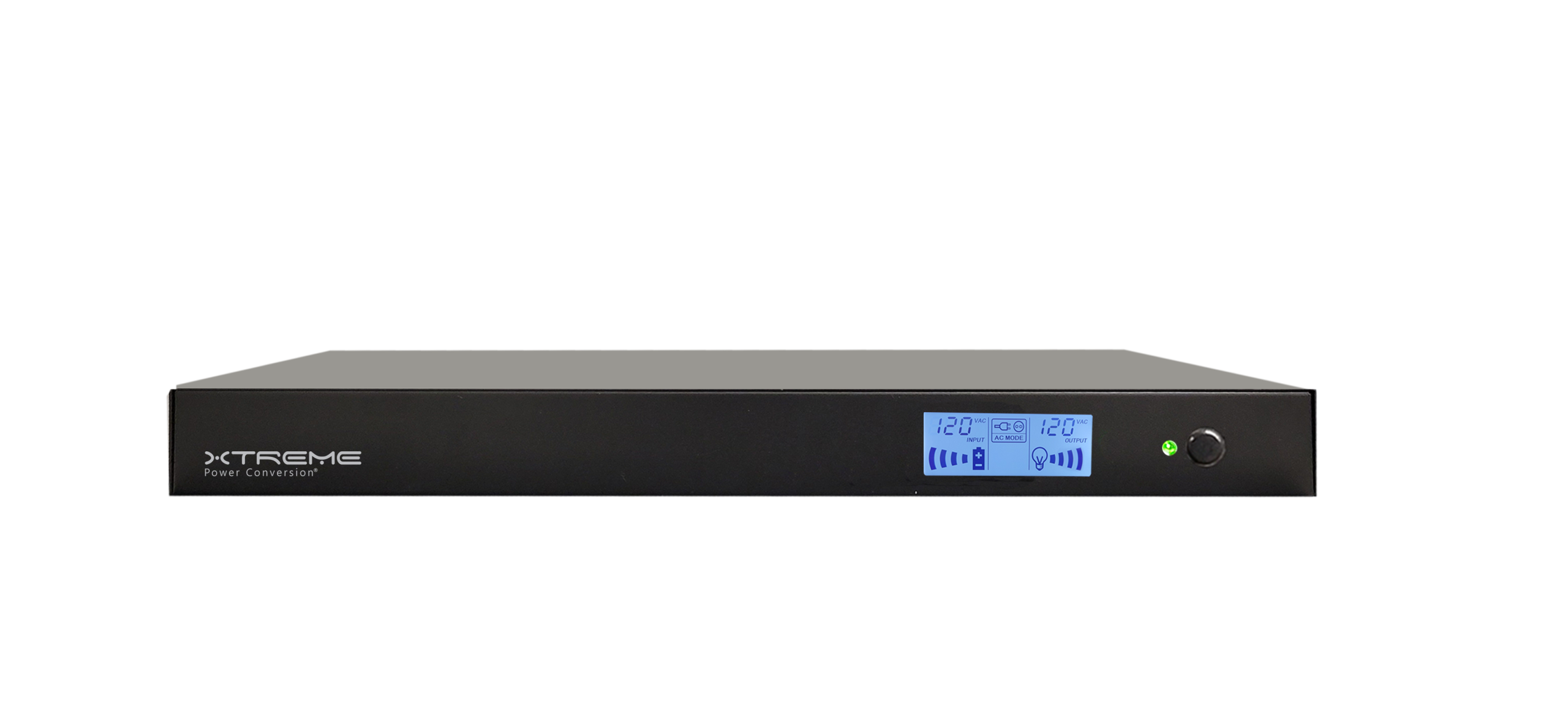

J60C / J60Ci Series Short-Depth 1U UPS

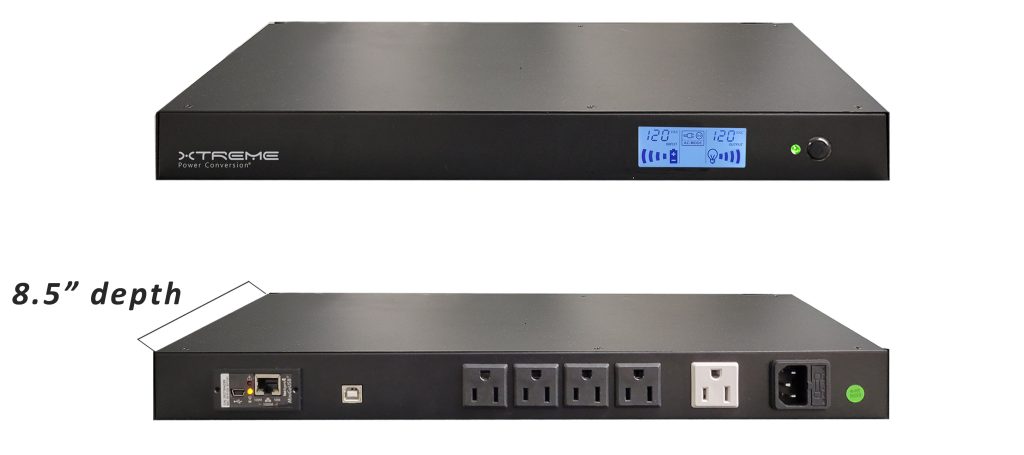

Short-depth 1U lithium UPS systems with an installation depth of approximately 8.5 inches, designed for shallow racks and wall-mounted cabinets.
https://xpcc.com/products/j60c-1u/

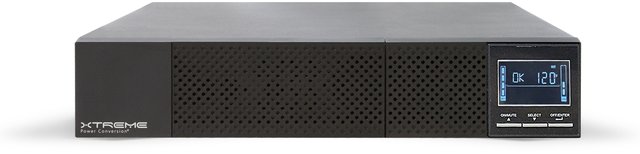

P91 Li Series UPS
The P91 Li platform provides online double-conversion power protection for distributed infrastructure. A new short-depth model, the P91-1kLi (11.6″ depth), will be available in September 2026, expanding the platform into shallow rack applications while maintaining higher capacity and runtime flexibility.
https://xpcc.com/products/p91_1-3/

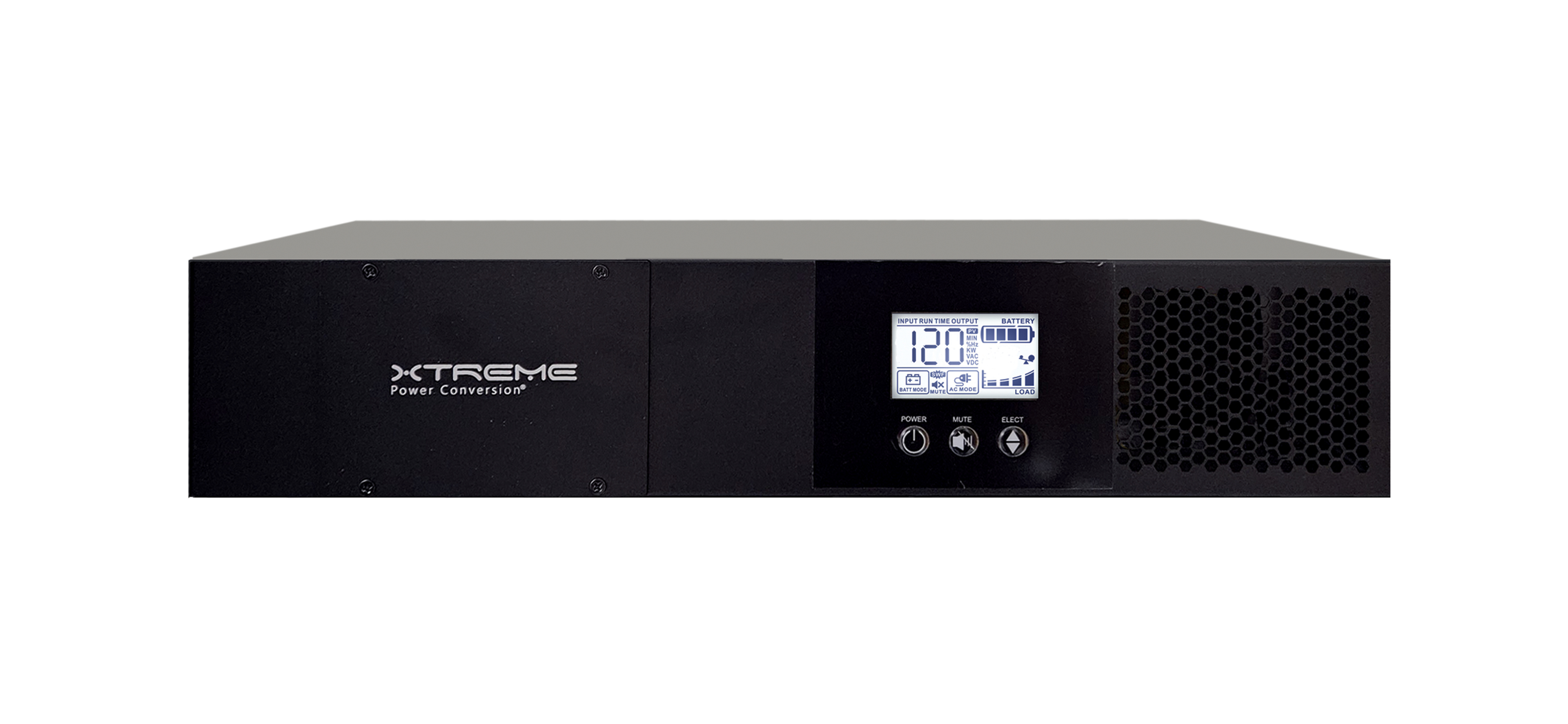

V70 Series Short-Depth UPS Platform (Available September 2026)
The V70 Series is a short-depth UPS platform designed to support a range of distributed infrastructure applications while maintaining compact installation depth.
https://xpcc.com/products/v70/
Choosing the Right UPS for Short Depth Installations
- Use J60C or J60Ci for primary short-depth 1U rack deployments
- Use P91 Li for higher capacity or extended runtime requirements, including upcoming short-depth configurations
- Use V70 Series for future deployments requiring expanded flexibility
Common UPS Configurations for Shallow Rack Deployments
| Deployment Type | Typical UPS |
| Wall-mounted cabinet | J60C / J60Ci |
| Shallow rack (IDF closet) | J60C / J60Ci |
| Higher capacity shallow deployment | P91 Li |
| Short-depth higher capacity (2026) | P91-1kLi |
| Future scalable shallow deployments | V70 Series |
Related Applications
Short-depth rackmount UPS systems are commonly used across:
- UPS for Network Infrastructure
https://xpcc.com/ups-for-network-infrastructure/ - UPS for Retail and Edge Applications
https://xpcc.com/ups-for-retail-edge-applications/ - UPS for AV Systems
https://xpcc.com/ups-for-av-systems/
Selection and Design Resources
UPS Sizing Tool
https://xpcc.com/ups-sizing-tool/
UPS for IDF / MDF Closets
https://xpcc.com/ups-for-idf-mdf-closets/
Lithium UPS Advantages in Short Depth Deployments
Lithium UPS systems are well suited for short-depth applications due to:
- Compact form factor and higher energy density
- Extended service life reducing maintenance cycles
- Improved thermal performance in constrained environments
- Predictable lifecycle for distributed infrastructure
Learn more:
https://xpcc.com/lithium-ups-guide/
https://xpcc.com/lithium-ups-vs-lead-acid-ups/
Plan With Confidence
Xtreme Power Conversion supports UPS sizing, installation planning, and infrastructure design for shallow rack and space-constrained environments.
