Web/SNMP Cards
UPS Management
Provide real-time monitoring, management, and control of remotely connected UPS from a web browser.
Web/SNMP Cards
Add real-time monitoring, management, and control of a remotely connected Xtreme Power UPS from any web browser. The included software lets you manage, maintain, and monitor the UPS while enabling graceful shutdowns and tracking environmental conditions.
status, load & battery
centralized
UPS MIB · PPC MIB
USA & Canada
Remote visibility and control for your UPS
Xtreme Power UPS capabilities can be enhanced with the addition of an optional Web/SNMP card. From a web browser you get real-time visibility into the UPS, the ability to manage and maintain it remotely, and automated protection for the systems it supports.
The included software enables graceful, unattended shutdowns of connected equipment during extended outages and lets you monitor environmental conditions at the rack. Standards-based SNMP and a full secure protocol stack make the cards straightforward to fold into existing network-management and identity systems.
Built for standards-based remote management
Monitor status, load, battery, and power conditions for a remotely connected UPS from any web browser.
The included software triggers orderly, unattended shutdowns of connected systems during extended outages.
Track temperature, humidity, and other site conditions with optional environmental probes on supported models.
RADIUS support lets the cards authenticate against your existing centralized identity infrastructure.
Speaks UPS MIB, RFC1628, and PPC MIB across SNMPv1, SNMPv2, and SNMPv3 for integration with your NMS.
HTTPS, SSL, SSH, IPv4/IPv6 and a full TCP/IP protocol suite, with a multi-language web interface.
Web/SNMP card compatibility guide
Each Web/SNMP card is matched to specific Xtreme Power UPS models. Find your UPS in the table to identify the correct card and part number.
| Model | Part number | Compatible Xtreme Power UPS |
|---|---|---|

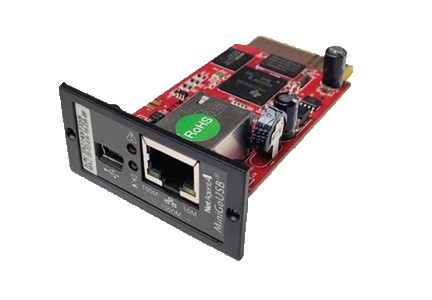

| SNMP-2PV3 | 90000675 | J90, P80 (g), P91 (g, Li), T91 100–3000 VA, TX91 (L), TXVR, V80 (Li, XR, HT) |
| SNMP-M90S | 90000698 | M90S-2S, M90S-4S, M90S-6S |
| SNMP-2P3 | 90000566 | M90U, M90LU, M90U-80, M90U-140 |
| SNMP-2PG1 | 90001245 | E91, R91, X90, M90C |
| SNMP-R90 | 90000266 | R91 |
| SNMP-J60 | 90000261 | J60 (c, i) |
| SNMP-USB | 90000281 | A60, S71, P91c-1000 |
Model selection guide
Full specifications and per-model differences across the Web/SNMP card family.
| Specification | SNMP-2PV3 | SNMP-M90S | SNMP-2P3 | SNMP-2PG1 | SNMP-R90 | SNMP-J60 | SNMP-USB |
|---|---|---|---|---|---|---|---|
| CPU | ARM9 180 MHz, 32-bit | ||||||
| Port | 2 ports | 1 port | |||||
| Flash memory | 8 MB | ||||||
| Web multi-language | Yes | ||||||
| Power source | Internal | External* | |||||
| Watchdog | Yes | ||||||
| LAN interface | 10/100/1000M | 10M/100M UTP | |||||
| LAN protocol | TCP/IP, HTTP, HTTPS, SSL, SSH, SMTP, SNTP, DHCP, Telnet, BOOTP, DNS, DDNS, PPPoE, RADIUS, IPv4, IPv6 | ||||||
| MIB | PPC MIB, RFC1628, SNMPv1, SNMPv2, SNMPv3 | ||||||
| Real-time clock (RTC) | Yes | ||||||
| Warranty | 3 years (USA and Canada) | ||||||
| UPS power cycle | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| External box | ✓ | ✓ | ✓ | ||||
| Internal card/module | ✓ | ✓ | ✓ | ✓ | |||
| MODBUS over TCP/IP | ✓ | ||||||
| SNMP-EMPV2 / EMD / TMPH** | ✓ | ✓ | ✓ | ||||
| LCD display | ✓ | ||||||
| Dimensions (W×D×H) | 2.0 × 3.1 × 0.9 in | 2.7 × 4.9 × 1.1 in | 2.7 × 4.9 × 1.1 in | 2.7 × 4.9 × 1.1 in | 1.9 × 2.5 × 0.75 in | 2.0 × 4.0 × 1.4 in | 1.7 × 2.2 × 0.75 in |
*External power supply required. **Environmental monitoring via optional SNMP-EMPV2 / EMD / TMPH probes.
Datasheets & references
Not sure which card fits your UPS?
Tell us your UPS model and we will confirm the correct Web/SNMP card, part number, and any environmental-monitoring options for your deployment.
[table colalign=”left|center|center|center|center|center|center”]
MODEL NUMBER,SNMP-2PV3,SNMP-M90S,SNMP-USB,SNMP-2PG1,SNMP-R90,SNMP-J60, SNMP-USB
CPU,ARM9 180MHz 32Bit[attr colspan=”7″]
Port,2 ports[attr colspan=”4″], 1 ports [attr colspan=”3″]
Flash memory,8MB[attr colspan=”7″]
Web multi-language,Yes[attr colspan=”7″]
Power source,Internal [attr colspan=”4″], External*[attr colspan=”3″]
Watch Dog,Yes[attr colspan=”7″]
LAN interface, 10/100/1000M, 10M/100M UTP[attr colspan=”6″]
LAN protocol,”TCP/IP, HTTP, HTTPS, SSL, SSH, SMTP, SNTP, DHCP, Telnet, BOOTP, DNS, DDNS, PPPoE, RADIUS, IPv4, IPv6″[attr colspan=”7″]
MIB, PPC MIB, RFC1628, SNMPv1, SNMPv2, SNMPv3 [attr colspan=”7″]
Real time clock (RTC),Yes[attr colspan=”7″]
Warranty,3 years (USA and Canada) [attr colspan=”7″]
UPS power cycle ,X,X,X,X,X,,X
External box,,,,X,X,,X
Internal card/module,X,X,X,,,
MODBUS over TCP/IP compatible, X,X,X,X,,,
SNMP-EMPV2 / EMD / TMPH compatible**,X,,X,X,,,
LCD display,,,,,,,X
Dimensions (W x D x H),2.0 x 3.1 x 0.9 in,2.7 x 4.9 x 1.1 in[attr colspan=”3″], 1.9 x 2.5 x .75 in,1.9 x 2.5 x .75 in,1.7 x 2.2 x .75 in
[/table]
*External 120V power adapter included. **EMPV2 must be used with 2PV3 / EMD must be used with the 2P3 / TMPH must be used with 2PG1
