J40 Ultra-Slim Surge PDU – 120V & 230V Compact Surge Protection Power Distribution
10A | 120VAC / 230VAC | Ultra-Slim Surge PDU
Ultra-slim surge protection and power distribution designed for digital signage, kiosks, and POS systems requiring compact installation, reliable protection, and simple power control.
10A · 120VAC / 230VAC · Ultra-Slim Surge PDU

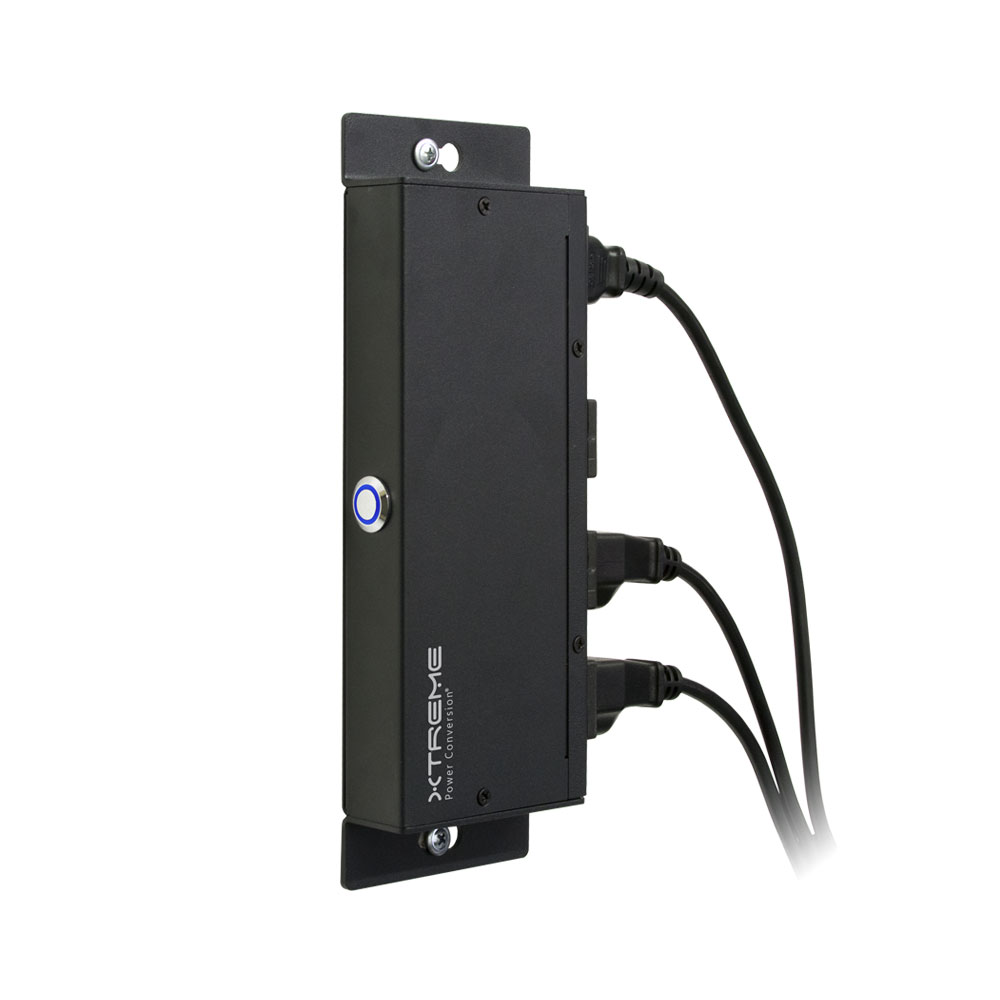

J40 ultra-slim surge PDU
The J40 Series delivers advanced surge suppression and power distribution in an ultra-slim, low-profile chassis built for space-constrained commercial electronics. Engineered for digital signage, kiosks, gaming systems, and point-of-sale, it installs flat behind thin displays and inside compact enclosures – with side-facing receptacles, up to 2400 joules of thermal-fuse MOV protection, an illuminated reset button for instant power status and restoration, and a 5-year warranty.
Ultra-slim surge protection architecture
The J40 is designed for installations where traditional PDUs or UPS systems cannot fit. Its ultra-slim profile and side-facing connections allow mounting behind displays, inside kiosks, and within compact enclosures – bringing surge protection and distribution directly to the point of use without adding enclosure depth or impacting system design. An illuminated reset button provides immediate power-status visibility and quick manual power cycling without unplugging equipment, supporting fast recovery in operational environments.
What the J40 delivers
Advanced surge suppression absorbs spikes, surges, and transients to safeguard sensitive connected electronics.
Clear visual power status plus instant manual power restoration without unplugging equipment.
A low-profile chassis (1.22 in deep) installs flat behind thin displays and inside compact enclosures.
Thermal-fused MOV modules guard against overvoltage and heat, compliant with UL 1449 (3rd Edition).
Side-mounted inlet and outlets enable clean integration and cable routing in tight, shallow spaces.
Brackets included for mounting in any orientation; optional right-angle, offset input cord for tight installs.
Surge protection with quick power reset
The J40 provides surge suppression for sensitive electronics exposed to unstable power, while the integrated illuminated reset button lets users quickly restore power after a trip event without accessing upstream sources. On the J40E, the illuminated reset is remote-mounted on a 10-ft cable – enabling control in embedded or otherwise inaccessible installations. This combination of protection and convenient control reduces downtime and simplifies field service.
Three models: J40, J40E, J40i
| Model | Voltage | Input | Outlets | Power reset | Dimensions (W×D×H) | Weight |
|---|---|---|---|---|---|---|
| J40 | 120VAC | IEC C14 inlet | (3) 5-15R | Unit-side, illuminated | 8.07 × 3.35 × 1.22 in | 2.0 lb |
| J40E | 120VAC | IEC C14 inlet | (3) 5-15R | Remote, 10-ft cable | 8.07 × 3.35 × 1.22 in | 2.0 lb |
| J40i | 208/230V | IEC C14 inlet | (3) IEC C13 | Unit-side, illuminated | 8.07 × 3.35 × 1.22 in | 2.0 lb |
All models: 10A input capacity, 50/60 Hz, 2400-joule suppression, illuminated reset, IEC C14 inlet (optional detachable right-angle cord). J40 and J40E are 120V (5-15R); J40i is 208/230V (IEC C13); J40E adds a remote illuminated reset on a 10-ft cable. Specifications from the J40 datasheet (J40.03U, Rev 10/15/25).

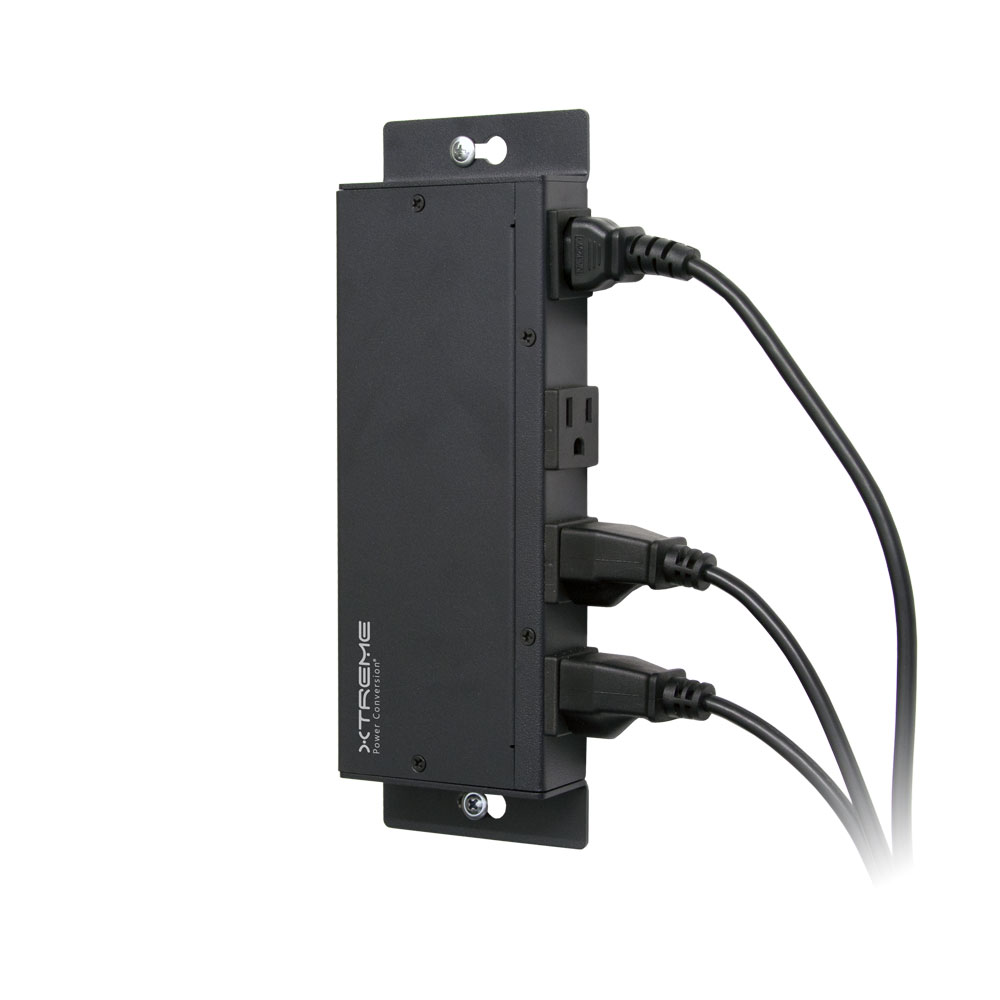

Inputs, outputs, and mounting
The J40 in the Xtreme Power portfolio

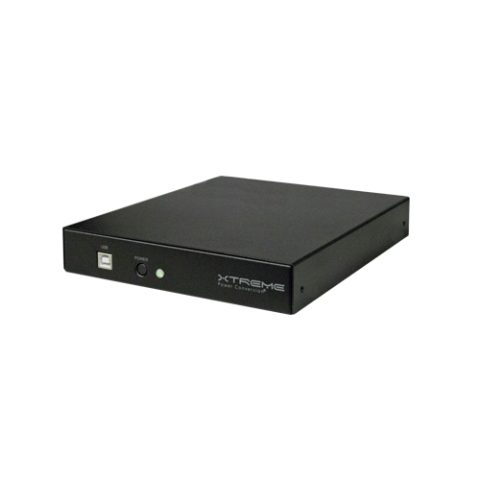

The J40 is the compact surge protection and distribution platform in the Xtreme Power line, used where space is limited and power-quality protection is required. As needs grow, the portfolio scales: J40 for surge protection and compact distribution, J60 for ultra-compact lithium UPS backup, J90 for rack-mounted online UPS, and SPDU for monitored, switched rack distribution.
Where the J40 is deployed
Flat-mount protection behind thin displays in hotels, restaurants, healthcare, airports, and campuses.
Compact surge protection and quick reset access for unattended interactive systems.
Reliable, protected power and convenient reset for always-on POS equipment.
Protected power for networked devices and displays in transportation environments.
Surge protection for embedded electronics in space-constrained commercial installs.
J40E remote reset restores power in embedded or hard-to-reach enclosures.
J40 specifications
| Specification | Detail |
|---|---|
| Type | Ultra-slim surge PDU (surge protection + distribution; not a UPS) |
| Models | J40 (120V), J40E (120V, remote reset), J40i (208/230V) |
| Input capacity | 10A |
| Voltage | 120 VAC (J40 / J40E) / 208-230 VAC (J40i), 50/60 Hz |
| Input connection | IEC C14 inlet; optional detachable right-angle / offset cord |
| Outlets | (3) NEMA 5-15R (120V) / (3) IEC C13 (230V) |
| Surge rating | Up to 2400 joules |
| Surge technology | Thermal-fuse MOV, UL 1449 (3rd Edition) |
| Power reset | Illuminated reset button; unit-side (J40 / J40i) or remote 10-ft cable (J40E) |
| Mounting | Wall, ceiling, or surface (brackets included, any orientation) |
| Form factor | Ultra-slim, flat-mount; side-facing inlet and receptacles |
| Dimensions | 8.07 × 3.35 × 1.22 in (W×D×H) |
| Weight | 2.0 lb |
| Operating temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 0% to 90% |
| Altitude | Up to 11,500 ft |
| Warranty | 5 years (USA & Canada) |
