Modular Single-Phase UPS

Single-phase online UPS

Modular single-phase UPS

The M90S family is an online double-conversion UPS for single-phase and split-phase service, at unity power factor. The 4S, 6S and 12S scale in 6 kW hot-swap power modules with N+1 redundancy in the same frame; the 2S is a fixed 6 kW entry model; the M90Si-6S uses 10 kW modules for 208-240V international sites. Every model has a maintenance bypass, so it can be serviced without dropping the load.

Compare models

ModelPower modulesCapacityInput and outputInstallation

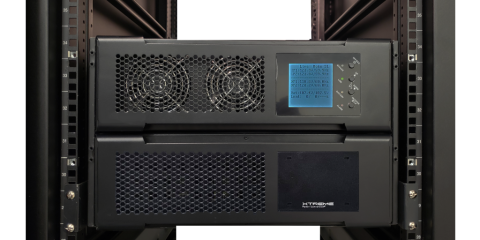

M90S-2SFixed 6 kW (not N+1)6 kW120/208V or 120/240VRack (6U) or tower; L14-30P cord or hardwired

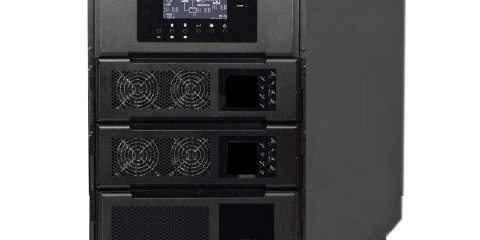

M90S-4S6 kW modules6-12 kW120/208V or 120/240VFloor-standing; rack kit optional; L14-30P cord at 6 kW, hardwired at 12 kW
M90S-6S6 kW modules6-24 kW120/208V or 120/240VFloor-standing; rack kit optional; L14-30P cord at 6 kW
M90S-12S6 kW modules6-48 kW120/208V or 120/240VHardwired
M90Si-6S10 kW modules10-30 kW230V in; 208, 220, 230 or 240V outHardwired

M90S, split-phase

120/208V or 120/240V, unity power factor, up to 98% efficiency in ECO mode. The 4S, 6S and 12S add capacity in 6 kW modules.

International

The same modular design for 208-240V single-phase service, with 10 kW modules.

Replacing an APC Symmetra LX? See Symmetra LX replacement →

How to choose

If you needStart with
A compact 6 kW online UPS, rack or tower, that plugs inM90S-2S
Start at 6 kW and grow to 12 kWM90S-4S
Up to 24 kW with N+1, or a Symmetra LX replacementM90S-6S
Up to 48 kW in one hardwired systemM90S-12S
208-240V international single-phase serviceM90Si-6S
Above 48 kW, or three-phase service availableA three-phase modular UPS

Frequently asked questions

Why choose a modular UPS?
Power modules are hot-swappable, so a failed module can be replaced without dropping the load, and one extra module gives N+1 redundancy. You can also buy the capacity you need now and add modules later instead of replacing the UPS.
Is the M90S-2S modular and redundant?
No. The M90S-2S is a fixed 6 kW system, not N+1 and not capacity-scaling. For growth or redundancy, choose the M90S-4S, 6S or 12S.
When should I choose the M90S instead of a P91 5-10k?
Choose the M90S when you need N+1 redundancy, expect the load to grow, or need more than 10 kW. The P91 5-10k is the simpler choice for a fixed load up to 10 kW where redundancy is not required.
What if my building has no three-phase service?
That is where the M90S fits: it delivers modular, redundant protection up to 48 kW from single-phase, split-phase service.
What warranty comes with the M90S?
3 years on electronics and 3 years on batteries in the USA and Canada (1 year elsewhere), with a $50,000 load protection policy in the USA and Canada.
Is the M90S TAA compliant?
Yes. All M90S models are TAA compliant and UL 1778 / cUL listed.
