A70i Line-Interactive UPS – Compact 230V UPS with AVR for Automation and Network Equipment (600–1000 VA)
600-1000VA
230VAC
Reliable battery backup and power protection for your business electronics
600–1000 VA · 230 VAC · Line-Interactive UPS · Automatic Voltage Regulation

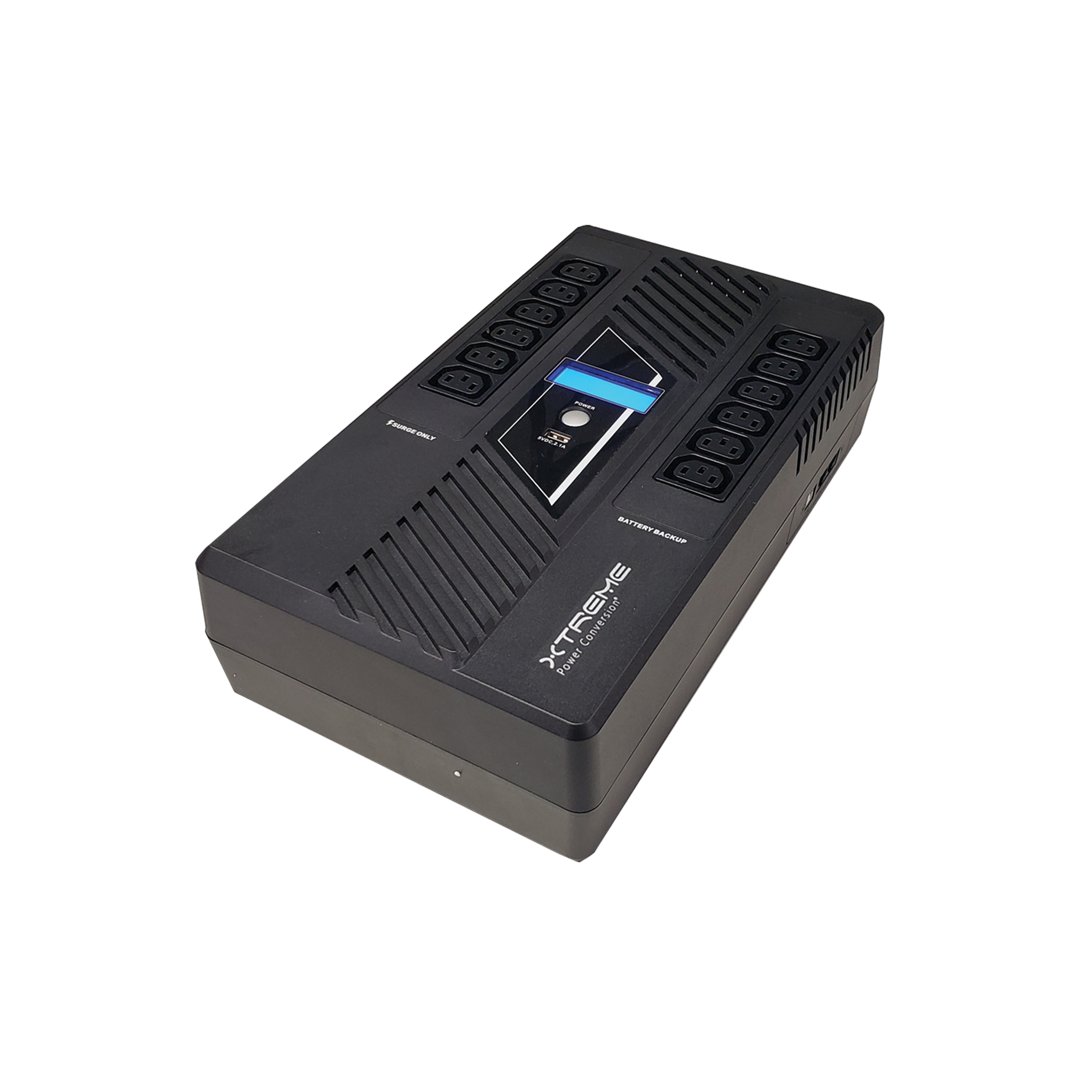

A70i compact line-interactive UPS
The A70i is the entry-level 230 V line-interactive UPS in the Xtreme Power portfolio — 600–1000 VA of compact, device-level protection for automation, network, and small-office equipment. Automatic Voltage Regulation (AVR) corrects voltage sag and surge without draining the battery, while an LCD, HID-compliant USB, a USB device-charging port, and RJ45 surge protection round out a simple, flexible deployment. CE / RoHS, backed by a 3-year warranty and a $25,000 load-protection policy.
Entry-level 230 V protection with AVR
The A70i provides reliable battery backup and voltage stability for environments that need dependable protection without rack infrastructure. Line-interactive topology with AVR corrects common power problems — voltage sag, surge, and brownout — without switching to battery, transferring to backup only for true outages. It is engineered for localized continuity and controlled shutdown rather than extended runtime, with a compact chassis that installs almost anywhere.
What the A70i delivers
AVR corrects sustained under- and over-voltage without switching to battery — stabilizing output on weak or fluctuating 230 V supplies and reducing battery cycling.
A lightweight chassis sits horizontally on a desk or floor, stands vertically as a tower, or mounts on a wall via keyhole slots — fitting space-constrained, rack-free sites.
An HID-compliant USB port gives plug-and-play monitoring and safe shutdown; a separate USB-A 5 V / 2.4 A port charges phones and tablets during an outage.
Integrated RJ45 (10/100) surge protection shields networked gear from spikes; of the (12) C13 outlets, (6) are battery-backed and (6) are surge-only.
The battery swaps from a bottom compartment, and after a full discharge the A70i auto-restarts when utility returns — no truck roll to power-cycle.
Connected-equipment protection plus a 3-year electronics and battery warranty (USA and Canada) back every A70i.
The global entry tier
The A70i operates as the entry-level 230 V platform within the Xtreme Power architecture — deployed at the device or small-system level in distributed and edge environments where compact, flexible protection matters more than runtime depth.
Choose the A70i for compact, cost-effective device-level protection on 230 V circuits with AVR; step up to the P80g for rack-level capacity, or to the lithium J60i / J90i for extended battery lifecycle and high-temperature tolerance.
Three models, 600–1000 VA
| Model | Capacity | Battery | Dimensions (W×D×H) | Weight |
|---|---|---|---|---|
| A70i-600 | 600 VA / 360 W | (1) 12V 7Ah | 13.5 × 7.8 × 3.9 in | 9.7 lb |
| A70i-800 | 800 VA / 480 W | (1) 12V 9Ah | 13.5 × 7.8 × 3.9 in | 12.1 lb |
| A70i-1000 | 1000 VA / 600 W | (1) 12V 9Ah | 13.5 × 7.8 × 3.9 in | 14.1 lb |
All models share (12) IEC C13 receptacles — (6) battery-backed and (6) surge-only — with an IEC C14 inlet. Capacity guidance: 600 VA for small devices, routers, and embedded electronics; 800 VA for network equipment and automation; 1000 VA for higher-load small infrastructure and office systems.
Runtime by load
The A70i uses internal batteries sized for ride-through and controlled shutdown. Runtime is shown in minutes at each load level, from light load to full load (100% = 360 / 480 / 600 W at 0.6 power factor).
| Model | 10% | 20% | 30% | 40% | 50% | 60% | 70% | 80% | 90% | 100% |
|---|---|---|---|---|---|---|---|---|---|---|
| A70i-600 | 51 | 26 | 15 | 9 | 6 | 5 | 4 | 3 | 2 | 1 |
| A70i-800 | 49 | 25 | 15 | 10 | 7 | 5 | 3.5 | 3 | 2 | 1.5 |
| A70i-1000 | 37 | 18 | 11 | 7 | 5 | 3 | 2 | 1.5 | 1 | <1 |
Estimated minutes; values vary with battery age, temperature, and load profile. The A70i is optimized for localized device protection and controlled shutdown rather than extended runtime, and does not support external battery expansion.
Device-level continuity for 230 V environments
The A70i is deployed wherever compact, flexible 230 V protection is required: automation and control systems, network equipment and communications devices, small-office and home-office setups, security and access-control systems, and distributed edge or embedded systems. These environments prioritize simple deployment, a small footprint, and reliable operation over extended runtime.
A70i specifications
| Topology | Line-interactive with automatic voltage regulation (AVR) |
| Capacity | 600 / 800 / 1000 VA (360 / 480 / 600 W) |
| Input voltage | 220 / 230 / 240 VAC, 50/60 Hz auto-sensing |
| Output voltage | 220 / 230 / 240 VAC |
| Output waveform | Simulated sine wave |
| Output frequency | 50/60 Hz ±1 Hz |
| Transfer time | 6 ms typical |
| Battery | Sealed maintenance-free lead acid; (1) 12V 7Ah (600 VA), (1) 12V 9Ah (800 / 1000 VA) |
| Recharge | 8 h to 90% |
| Receptacles | (12) IEC C13 — (6) battery backup + (6) surge only |
| Input | IEC C14 inlet |
| Dimensions | 13.5 × 7.8 × 3.9 in (343 × 198 × 99 mm), all models |
| Weight | 9.7 / 12.1 / 14.1 lb (600 / 800 / 1000 VA) |
| USB charging | USB-A, 5 V / 2.4 A |
| Data-line surge | RJ45 (10/100) |
| Display | LCD — input/output voltage, load level, battery capacity |
| Communications | HID-compliant USB |
| Environment | 0–40°C, 0–90% RH, up to 11,500 ft |
| Approvals | CE, RoHS |
| Warranty | 3 years electronics, 3 years battery (USA and Canada) |
| Load protection | $25,000 connected-equipment policy |
Documents and related links
Plan your A70i deployment
Talk to an Xtreme Power specialist about device-level protection for distributed and global 230 V environments — capacity selection, mounting, and standardizing a simple entry-tier UPS across many sites.
| MODEL NUMBER | A70i-600 | A70i-800 | A70i-1000 | |
| CAPACITY | Power rating | 600VA/360W | 800VA/480W | 1000VA/600W |
| INPUT | Voltage | 220/230/240VAC | ||
| Frequency | 50/60Hz auto-sensing | |||
| OUTPUT | Voltage | 220/230/240VAC | ||
| Waveform | Simulated sine wave | |||
| Frequency | 50/60 Hz ± 1Hz | |||
| Transfer time | 6ms typical | |||
| BATTERY | Battery type | Sealed, maintenance free lead acid | ||
| Battery quantity and size | 12V 7AH | 12V 9AH | 12V 9AH | |
| Recharge | 8 hours to 90% capacity | |||
| PHYSICAL | UPS dimensions (W x D x H) | 13.5 x 7.8 x 3.9 in (343 x 198 x 99 mm) | ||
| UPS weight | 9.7 lbs (4.4kg) | 12.1 lbs (5.5kg) | 14.1 lbs (6.4kg) | |
| Input | IEC C14 Inlet | |||
| Receptacles | (12) IEC C13 receptacles (6 battery back up + 6 Surge only) | |||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | ||
| Humidity | 0–90% | |||
| Altitude | 11,500 ft (3505m) above sea level | |||
| INDICATORS & | Display | LCD display | ||
| ALARMS | USB charging port | USB A-type 5V, 2.4A | ||
| Data Line Surge Protection | RJ45 (10/100) | |||
| APPROVALS | CE, RoHS | |||
| WARRANTY | 3 years electronics, 3 years battery (USA and Canada) | |||
| COMMUNICATIONS INTERFACE | HID compliant USB | |||
| INCLUDED IN BOX | USB cable and user manual | |||
