AX8-110: 110 kW of 800 VDC power for AI and GPU racks

The AX8-110 converts three-phase AC into a tightly regulated 800 VDC bus, delivering 110 kW from six 18.5 kW hot-swappable PSU modules. Every PSU carries 1570 J of integrated bulk capacitance, absorbing the step loads of GPU compute cycles at well above nominal output. The 7U AX8E-110 adds four 27.5 kW LFP battery modules for ride-through, each with an integrated DC-DC converter that holds the bus at a regulated 800 VDC for the entire discharge.

110 kW
Shelf capacity
800 VDC
Regulated output
3U / 7U
PSU only / PSU + BBU
97.5%
Peak efficiency
160%
Step load absorbed
90 s+
Ride-through at full load

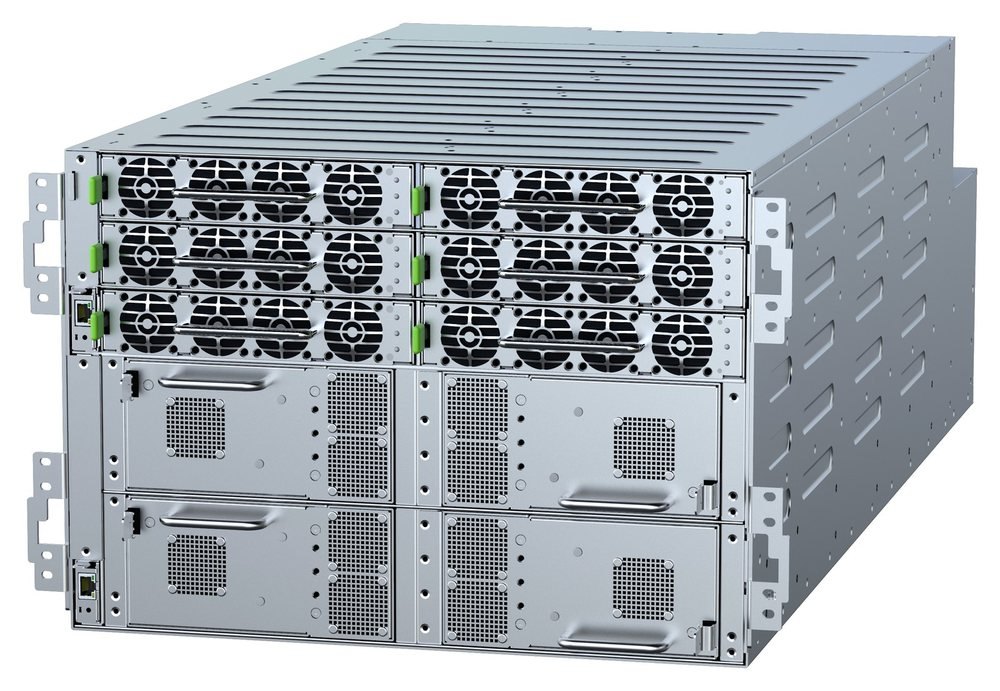

Xtreme Power AX8E-110 7U 800 VDC power shelf, front oblique view showing six hot-swappable PSU modules above four LFP battery backup modules

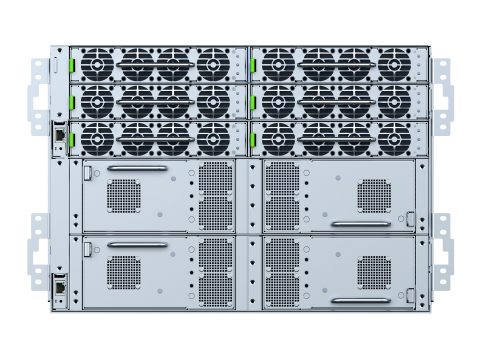

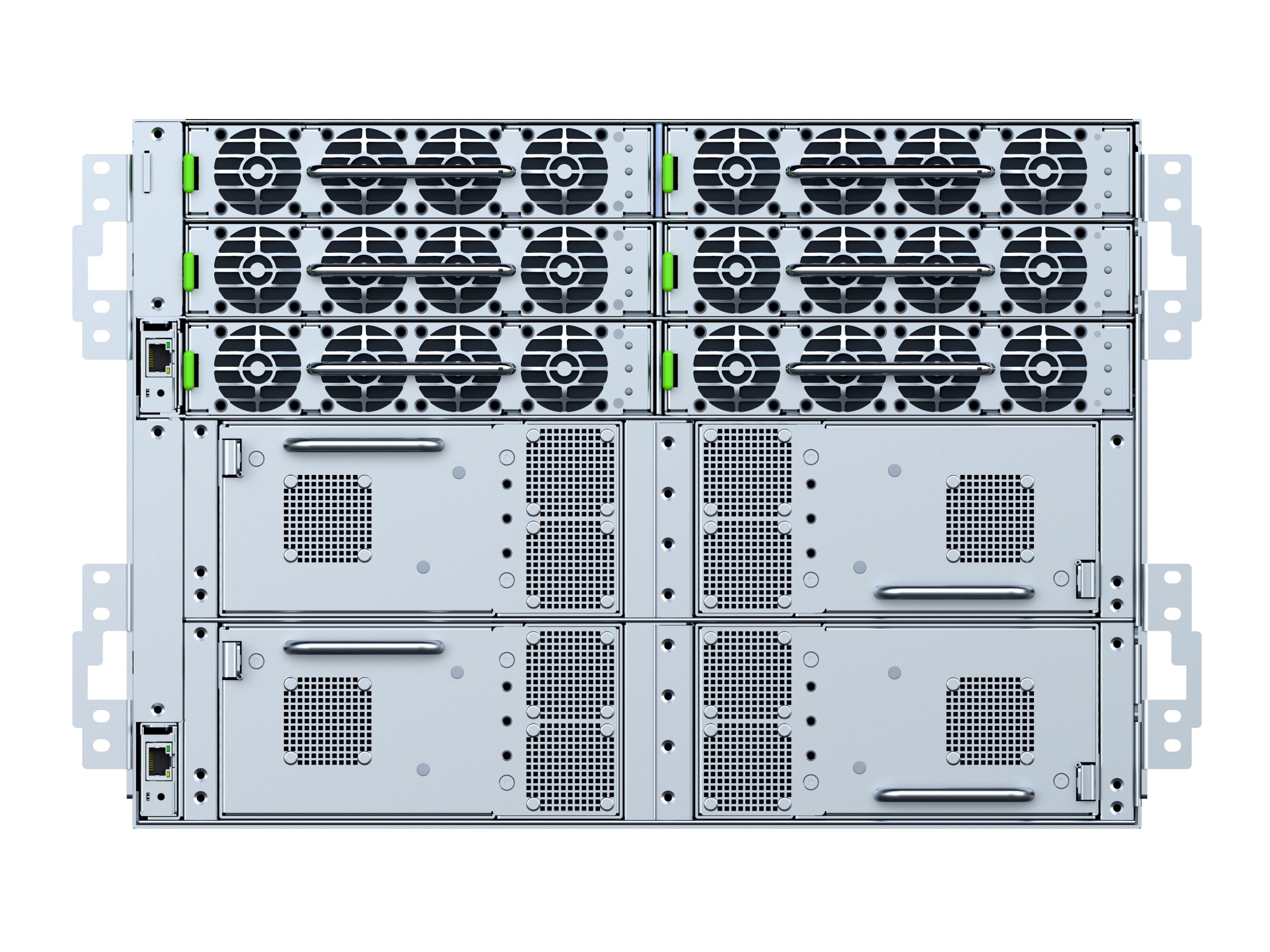

AX8E-110 — the 7U configuration, with the six-module PSU section above the four-module BBU section.

Overview

Built for the load profile AI racks actually produce

AI compute does not draw steady power. GPU clusters swing from near-idle to peak and back in milliseconds, thousands of times an hour, and those transitions propagate in both directions — upstream toward the utility connection and downstream into whatever is holding the bus. Power infrastructure designed for steady IT load behaves differently under this profile than its datasheet suggests.

The AX8-110 is built around that problem. Bulk capacitance sits in every PSU module rather than in a central bank, sized at 1570 J per module: 1200 J so that step loads above nominal output are absorbed locally, and 370 J held in reserve for hold-up. The battery is not part of the transient path. It stays in standby for outages, which is what it is warranted for.

Completes the system: the DX8-90 DC power shelf steps the 800 VDC bus down to 54 VDC at the rack — 90 kW from six 15 kW DC-DC modules, connected directly to the AX8-110 with no intermediate PDU or bus.

DX8-90 →

Dynamic Response

Step loads handled without the battery

Conventional double-conversion designs are typically validated to a 100% step load without engaging batteries. Beyond nominal is where battery involvement usually begins — and every transient that touches the battery consumes cycle life that was meant for outages.

The AX8-110 PSU holds 160% for a 400 µs moving average, 136% for a 50 ms moving average, and 100% for a 1 s moving average, all within regulation and all absorbed in bulk capacitance. Nothing is passed upstream to the mains or downstream to the battery.

Averaging window Load absorbed within regulation
400 µs moving average 160% of rated output
50 ms moving average 136% of rated output
1 s moving average 100% of rated output
160%136%100%0%Time →Dashed: 160% at 400 µs average, 136% at 50 ms averageBBU stays in standbyNo discharge, no cycle life consumed by load steps. Peaks absorbed by each PSU’s 1200 J smoothing reserve.Duty cycles per published AI load test practice. Transient widths not to scale;the one-second moving average stays below 100% throughout.
AI rack load against the PSU capability envelope. Peaks to 160% are absorbed in bulk capacitance within regulation, and the battery is never triggered.

Dynamic performance has been verified against the OCP Part 9.3.3 dynamic and pulse load test profiles — 24 profiles in total, including 10 to 150% steps at 20 Hz, 100 Hz, 500 Hz and 4 kHz at a 1 A/µs slew rate, and pulse profiles to 175% peak. Output stayed within ±3% (776 to 824 VDC) with 3 ms settling on every profile, and the battery was not triggered on any of them.

Input power quality holds under the same conditions: power factor above 0.99 and input current THD below 8.5% worst case, typically under 6%, measured under dynamic load rather than at steady state.

Configurations

Two shelves, one PSU core

AX8-110 — 3U

PSU only

Six PSU8-185 modules delivering 110 kW of 800 VDC in three rack units. Populated in twos: 2, 4 or 6 modules. Where ride-through is handled elsewhere in the architecture, this is the whole shelf.

AX8E-110 — 7U

PSU + battery backup

The same six-module PSU section plus a 4U battery section carrying up to four BBU8-275 LFP modules. Installed BBU capacity must meet or exceed installed PSU capacity.

Redundancy Capacity Protects against
N+0 110 kW No PSU redundancy; full shelf output
N+1 92 kW Loss of any one PSU module
N+N 55 kW Loss of one AC feed or half the PSU modules

Each shelf has a single 800 VDC output feeding one DX8-90. Two AC inputs connect directly to facility tap-boxes with no intermediate PDU, and a removable Power Monitoring Controller coordinates PSU and BBU modules across the shelf.

Key Features

What sets the AX8-110 apart

Density

110 kW in 3U
Six 18.5 kW modules deliver high-density 800 VDC power for AI and GPU racks.
Transients

PSU capacitor load smoothing
1570 J per module; 1200 J absorbs GPU step loads to 160% without waking the battery.
Ride-through

Regulated 800 VDC on battery
An integrated DC-DC converter holds the bus at 800 VDC for the full discharge — no rail droop as the pack depletes.
Service life

Ride-through held to end of life
Full 110 kW for 90 seconds or more, sustained across the rated service life as cells age.
Serviceability

Hot-swappable PSU and BBU
Both module types are serviced from the front, with no shelf downtime and no interruption to the bus.
Verification

Tested to published profiles
Dynamic response verified against OCP Part 9.3.3 dynamic and pulse load profiles, not an in-house method.

AI Infrastructure Power

Where the AX8-110 sits in the 800 VDC chain

800 VDC Power Chain

Source
FACILITY AC
415 / 480 VAC three-phase, two inputs
Rectification
AX8-110 / AX8E-110
110 kW AC to 800 VDC, optional battery ride-through
Conversion
DX8-90
90 kW 800 VDC to 54 VDC at the rack
Load
GPU / AI COMPUTE
54 VDC delivered at the rack

Converting from 800 VDC to 54 VDC at the rack rather than distributing low-voltage DC from a central source is what makes the architecture work: 90 kW at 800 VDC is about 114 A on the run into the rack, where the same power at 52 VDC would be about 1730 A.

Specifications

Shelf and PSU

Parameter AX8-110 / AX8E-110
Rack height 3U (AX8-110) / 7U (AX8E-110)
Composition 6 × PSU8-185 (AX8-110); 6 × PSU8-185 + 4 × BBU8-275 (AX8E-110)
Population options 2, 4 or 6 PSU; on AX8E-110, 2 or 4 BBU with installed BBU capacity meeting or exceeding installed PSU capacity
System capacity 110 kW (N+0) / 92 kW (N+1) / 55 kW (N+N)
Output configuration One 800 VDC output per shelf, feeding one DX8-90 (90 kW). 92 kW at N+1 covers the DX8-90 with one PSU module out of service
AC input 415 to 480 VAC for full output; 400 to 480 VAC operating range, derating linearly below 415 VAC to hold 80 A per input. 3-phase wye, 3W + G. Two AC inputs, each feeding three PSU positions at 55 kW; both must be powered for full output. Feeds may share a source or be independent, per the site power architecture. Direct tap-box connection with no PDU
Input connector BizLink 117G0-168530-R1, 5-pin, 125 A rated. 100 A input cable set; 80 A working per input at 80% derating
Input power factor Above 0.99 across all tested dynamic and pulse load profiles
Input current THD Below 8.5% worst case, typically under 6%, measured under dynamic load
Output voltage 800 VDC (810 V no-load to 800 V at 100% load; 10 V droop, extending to 15 V at 150%)
Ripple and noise 8 Vpp maximum (20 MHz bandwidth)
Current sharing Active and droop; 137.5 A maximum shelf output
Dynamic load response Within ±3% (776 to 824 VDC), 3 ms settling — verified per OCP Part 9.3.3 dynamic and pulse load profiles
Output grounding Floating; 800 VDC and return insulated from PE. Insulation monitoring is provided at system level
Output protection Back-to-back JFET disconnect for short-circuit protection, plus fuses in the PSU and BBU
PSU module PSU8-185 — 18.5 kW AC-to-800 VDC, hot-swappable
PSU topology Two-stage: PFC front end and isolated DC-DC
Peak efficiency Exceeds 97.5%
Integrated capacitance 1570 J per module: 1200 J for AI load smoothing plus 370 J reserved for 20 ms or more hold-up to bridge to battery
Pulse load capability 160% for a 400 µs moving average; 136% for a 50 ms moving average; 100% for a 1 s moving average. Absorbed by PSU bulk capacitance, within regulation and without initiating BBU discharge
Verified step loads 10 to 150% steps at 20 Hz, 100 Hz, 500 Hz and 4 kHz, 1 A/µs slew; pulse profiles to 175% peak. Battery not triggered on any profile
PSU module weight 8.9 kg (19.6 lbs), estimated

Specifications

Battery backup — AX8E-110

Battery configuration is provisional. The pack is specified at 160S1P 21700 LFP in the 7U integrated shelf shown here. An alternative battery arrangement is under evaluation and may change pack energy, module count and shelf height. Contact us for the current configuration before designing to these figures.
Parameter AX8E-110
BBU module BBU8-275 — 27.5 kW LFP battery module, 2U, hot-swappable
Backup power 110 kW
Backup time 90 seconds or more at 110 kW (full load, from full charge, 25°C)
Chemistry LFP, 160S1P 21700, 1280 Wh per module
Battery voltage, internal pack 368 to 576 VDC (2.3 to 3.6 V/cell, 512 V typical)
Delivered energy 2,750 Wh or more at 110 kW (four modules; derived from the rated backup time)
BBU output voltage 807 to 800 VDC (0 to 100% load; 7 V droop, 10.5 V at 150%)
Output regulation 776 to 824 VDC including load transient (±3% dynamic, balanced load); 760 V minimum under any dynamic condition
Output ripple 8 V peak-to-peak maximum
DC-DC converter Integrated; boosts pack to a regulated 800 VDC bus. 98% typical discharge efficiency. State-of-health boost ceiling 840 V
Startup time 10 ms or less from discharger activation to full output, including 150% peak load condition. Less than the PSU hold-up time
Transfer initiation All BBU modules enter discharge immediately on assertion of AC_LOSS_L or Sync_Start_L
Pulse capability 150% of rated output (41.25 kW per BBU, 165 kW per shelf); 1 A/µs slew rate; allowable pulse width per derating curve. Average output including peak load must not exceed 100%
Charging 720 W charge power; 1.25 A CC / 576 V CV; 95% efficiency or better; 2 h from 0 to 100% SOC
Standby charging Periodic recharge; no continuous float charge. Sleep mode for storage over 1 year at 30% charge
Insulation monitoring Pack insulation detection, separate from the 800 VDC bus; fault below 1000 Ω/V
Design life 90 s or more at 110 kW held through 6 yr at 25°C, 4 yr or more at 35°C; DC-DC board rated 10 yr
BBU module dimensions 931.6 × 175 × 84.7 mm (D × W × H), 2U
BBU module weight 19 kg (41.9 lbs), estimated

Communication and Control

Autonomous modules, supervised from the shelf

Each battery module carries its own integral BMS and runs its own state machine — sleep, standby, charge, discharge, periodic recharge, and a self-initiated state-of-health test every 90 days. Protections are local and latching: nothing upstream can override a safety trip. The Power Monitoring Controller supervises rather than controls, coordinating synchronized start and stop across modules, overriding charge current where needed, handling addressing, and collecting telemetry.

Parameter Specification
Controller Power Monitoring Controller (PMC), removable and hot-pluggable
Management 1 × gigabit Ethernet RJ45 per PMC to the top-of-rack switch; DMTF Redfish over HTTPS (PMC details)
Auxiliary output 50 VDC / 4 A
AC loss signaling Each PSU asserts AC_LOSS_L on AC loss after a 4 to 5 ms validation delay, when bulk capacitor energy falls to a 5 ms reserve, or on UVP / OVP / UFP / OFP fault. Each BBU accepts two AC_LOSS_L inputs
Transfer coordination Active AC_LOSS_L pulls Sync_Start_L low for immediate shelf-wide BBU discharge. On AC recovery the PSU revalidates for 500 ms before handback.
BBU self-test Automatic state-of-health test every 90 days via forced partial discharge; boost to 840 V maximum during test
BBU status signaling Power-loss siren asserts after 45 s or more of discharge (configurable); ready / not-ready alert; shelf redundancy status; black-box fault logging

Mechanical and Environmental

Rack integration

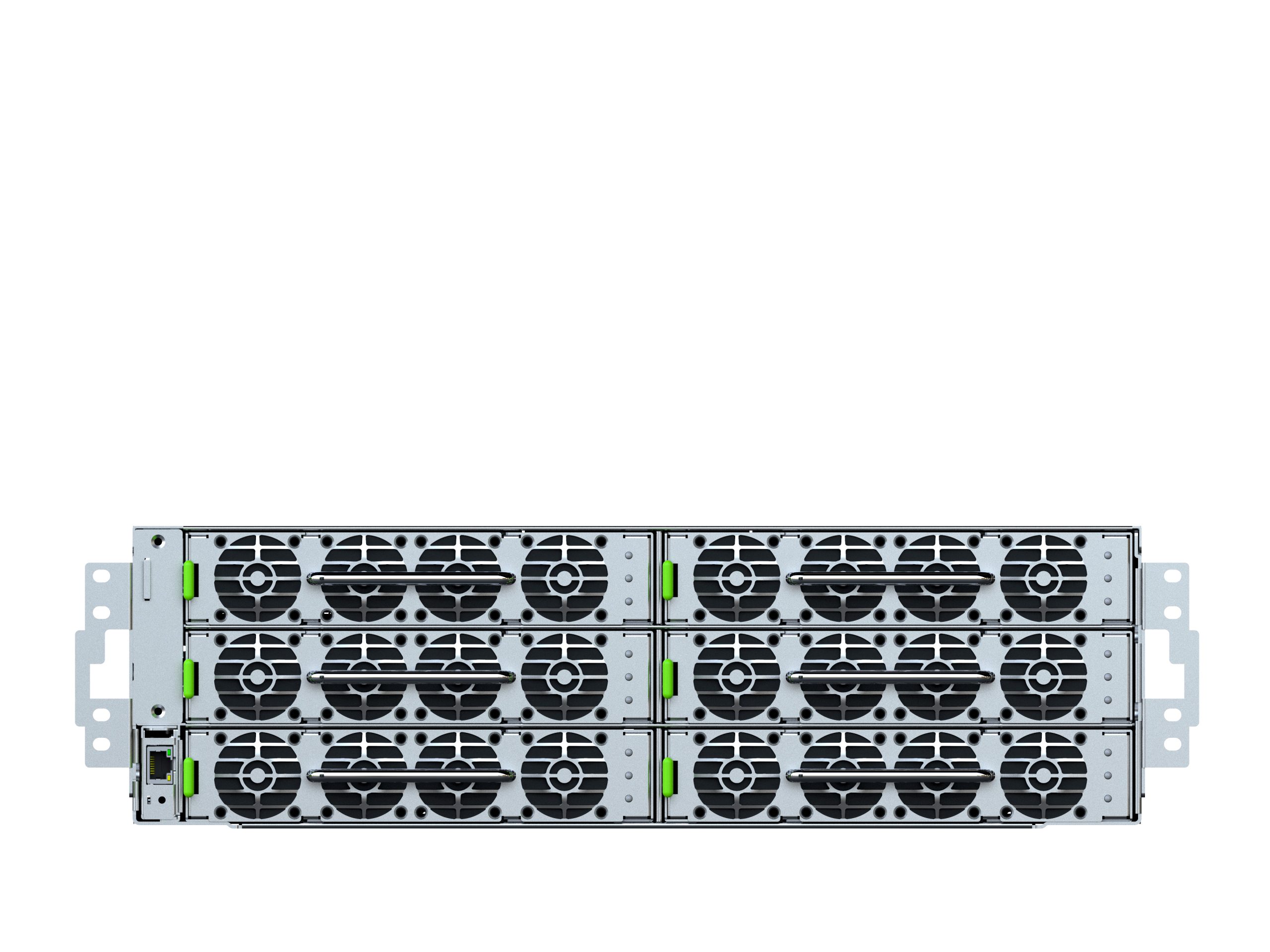

Xtreme Power AX8-110 3U 800 VDC power shelf front view showing six hot-swappable PSU modules and the Power Monitoring Controller slot
AX8-110 — 110 kW, 3U PSU shelf, front view. Six PSU8-185 modules, front-serviceable, with the removable Power Monitoring Controller at the left. Front views are shown at matched scale.
Xtreme Power AX8E-110 7U 800 VDC power shelf front view showing the six-module PSU section above the four-module LFP battery backup section
AX8E-110 — 110 kW, 7U PSU and BBU shelf, front view. The 3U PSU section is identical to the AX8-110; the 4U battery section below carries four BBU8-275 modules in mirrored pairs.
Xtreme Power AX8-110 3U 800 VDC power shelf rear view showing two AC input connectors, the central 800 VDC output connector, and RJ45 signal ports
AX8-110 — 3U rear view. Two AC input connectors left and right for direct tap-box connection, the 800 VDC output connector at center, and RJ45 signal ports for PSU-to-BBU signaling.

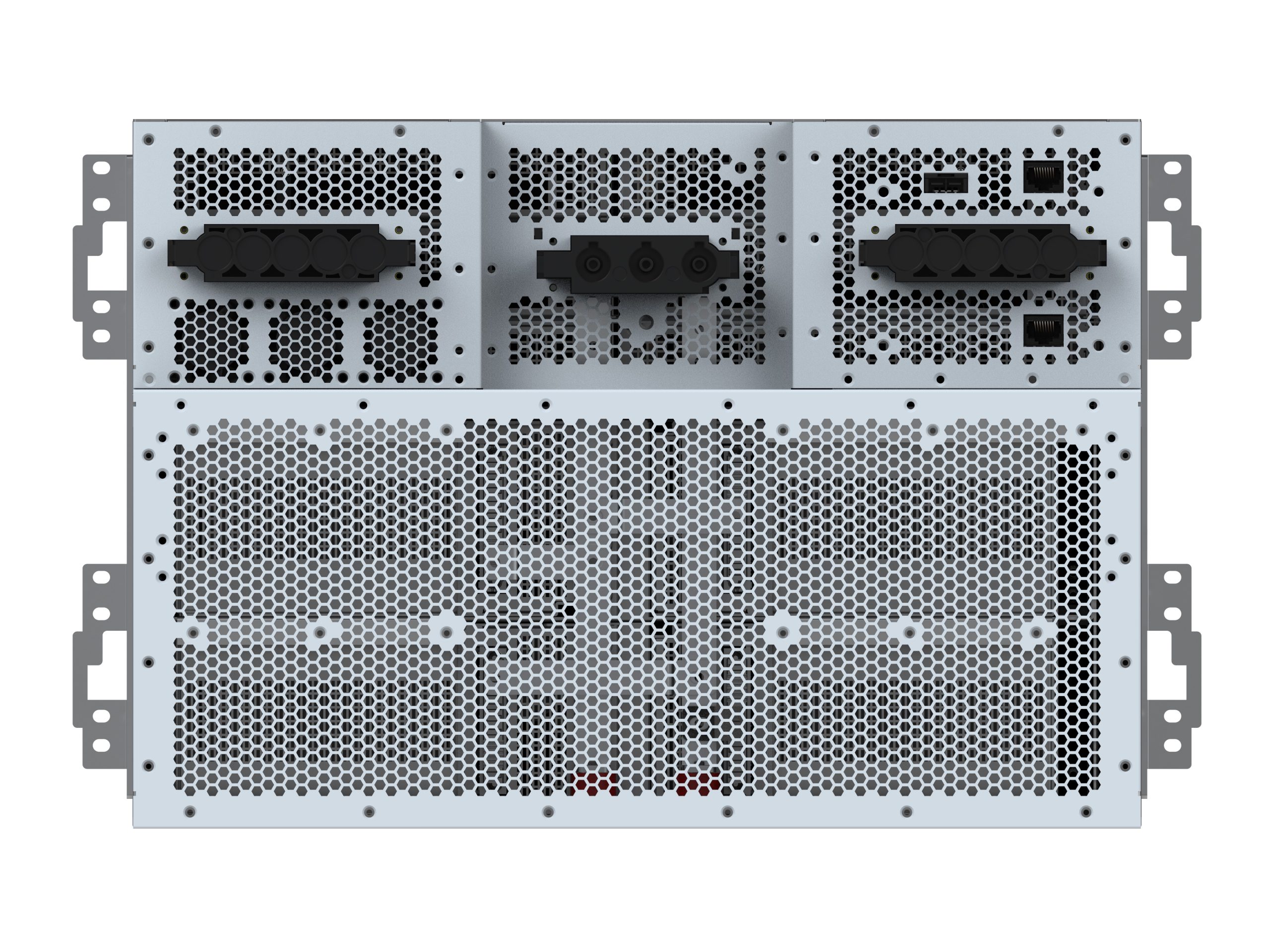

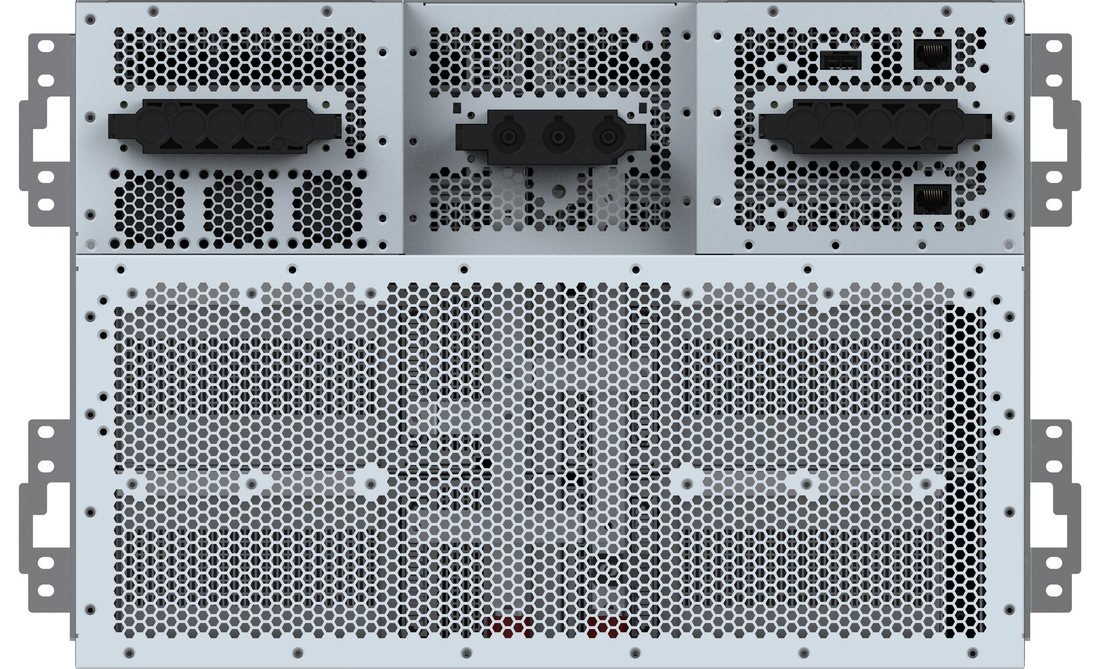

Xtreme Power AX8E-110 7U 800 VDC power shelf rear view showing the PSU-section connections above the full-width battery section
AX8E-110 — 7U rear view. PSU-section connections are identical to the AX8-110; the battery section occupies the full width below. Shown at the same scale as the 3U above.
Parameter Specification
Chassis dimensions 832 × 438 × 129.9 mm (3U) / 963 × 438 × 308 mm (7U), D × W × H
Weight, empty chassis 18.2 kg (40.1 lbs) 3U / 43.8 kg (96.6 lbs) 7U
Weight, fully configured 71.6 kg (157.9 lbs) with 6 PSU (AX8-110); 173.2 kg (381.8 lbs) with 6 PSU + 4 BBU (AX8E-110); estimated
Rack compatibility 19-inch EIA-310
Output connection Single 800 VDC output, 125 A rated; 800 VDC, return, PE and an S1–S2 interlock loop. Mates with the DX8-90 input and mounts at any rack location. Output shuts down within microseconds if the loop opens; interlock pins break before the power pins, and PE makes first and breaks last
Operating temperature 5 to +40°C (both configurations; AX8E-110 also battery-limited)
Long-term operating temperature +15 to +35°C for rated battery service life (AX8E-110)
Operating altitude 3050 m (10,000 ft) AX8-110 / 3000 m (9,840 ft) AX8E-110, battery-limited
Acoustic noise Target not to exceed 98 dBA with fans at full speed (design target, not a measured figure)

Compliance and Safety

Standards

UL / IEC / EN 62368-1
CE
CB
FCC / ICES-003 Class A
EN 55032 / EN 55035
EN 61000-3-11/-12
EN 61000-4-2/3/4/5/6/8/11
RoHS
REACH
Halogen-Free (IEC 61249-2-21)
WEEE

The AX8E-110 battery section adds UL 1973, IEC 62133, UL 9540A, and UN 38.3 / 3480 / 3481.

Dynamic load performance is verified against the OCP Part 9.3.3 test profiles. This is cited as test provenance for the measured results shown on this page, not as a claim of conformance to any rack architecture specification.

Designing an 800 VDC rack?

The AX8-110 is in development. We are working with infrastructure teams now on reference configurations, and can share current specifications, test data, and timelines under NDA.
