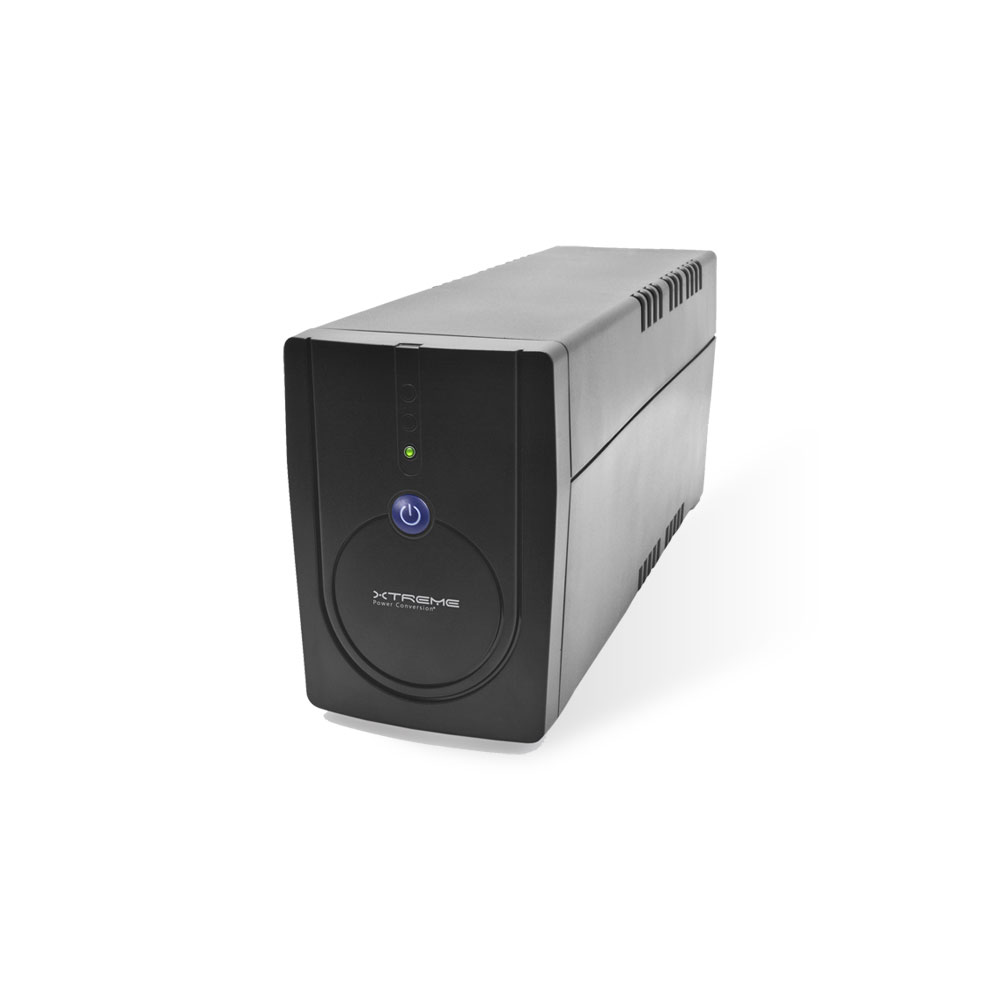

C60 Standby UPS
800VA
120VAC or 230VAC
Compact power outage protection in compact tower form factor.
The compact C60 is a single phase standby UPS designed to deliver power protection to small routers, switches, VoIP equipment, phone systems, and kiosks. A vital addition to any home office, it enables graceful shutdown of equipment during a longer power outage.
Product Snapshot
- Available in North American 120VAC or International 230VAC
- Compact size and lightweight design
- Primary applications: home or small office, routers, switches, kiosks, and telecom closets
- UL, FCC, RoHS compliant
- 2 years electronics, 2 years battery warranty (USA and Canada)
[table colalign=”left|left|center|center”]
,MODEL NUMBER,C60-800,C60i-800
INPUT,Capacity,800VA (480W)[attr colspan=”2″]
,Nominal voltage,120VAC,230VAC
,Voltage range,80–135VAC ± 5%,175–254VAC
,Frequency range,55–65Hz at 60Hz ± 1Hz,45–55Hz at 50Hz ± 1Hz
,Surge protection,158 J[attr colspan=”2″]
,AC power cord,”6 ft, IEC C13 to 5–15P”,IEC C14 inlet only
OUTPUT,Voltage (line mode),80–135VAC ± 5%,175–254VAC
,Voltage (battery mode),120VAC ± 10%,230VAC ± 10%
,Voltage regulation,± 2%[attr colspan=”2″]
,Frequency (line mode),55–65Hz at 60Hz ± 1Hz,45–55Hz at 50Hz ± 1Hz
,Frequency (battery mode),60Hz ± 1Hz,50Hz ± 1Hz
,Waveform,”Sine wave (normal), simulated sine wave (battery mode)”[attr colspan=”2″]
,Transfer time,2–6 ms[attr colspan=”2″]
,Outlets,(2) NEMA 5–15R,(2) IEC C13
,Overload capacity,110% +20% / -10% for 5 min; 120% +20% / -10% immediately off[attr colspan=”2″]
,Efficiency,> 95%[attr colspan=”2″]
BATTERY,UPS battery type,(1) 12V 9AH / 12VDC[attr colspan=”2″]
,UPS charge current,1A maximum[attr colspan=”2″]
,Recharge time,8 hours to 90% capacity[attr colspan=”2″]
PHYSICAL,Dimensions (W x D x H),4.0 x 13.0 x 5.7 in[attr colspan=”2″]
,Weight,7.5 lbs[attr colspan=”2″]
ENVIRONMENT,Temperature,32–104°F (0–40°C)[attr colspan=”2″]
,Humidity,0–90%[attr colspan=”2″]
,Altitude,”11,500 ft above sea level”[attr colspan=”2″]
INDICATORS & ALARMS,Line mode,Green LED illuminated[attr colspan=”2″]
,Battery mode,Green LED flashing every 10 sec[attr colspan=”2″]
,Battery low,Green LED flashing every 1 sec[attr colspan=”2″]
,Fault mode,Off[attr colspan=”2″]
,Audible alarm,Battery mode – every 10 sec; low battery – every 1 sec; overload – ever 0.5 sec; fault – constant alarm[attr colspan=”2″]
APPROVALS,,”UL 1778, FCC Class A, RoHS”,”TUV, CISPER 11 complaint, RoHs”
WARRANTY,,”2 years electronics, 2 years battery (USA and Canada)”[attr colspan=”2″]
[/table]
[table colwidth=”75″]
,Model,Description,Input Power Cord, Outlets, Unit Weight, Unit Dimensions

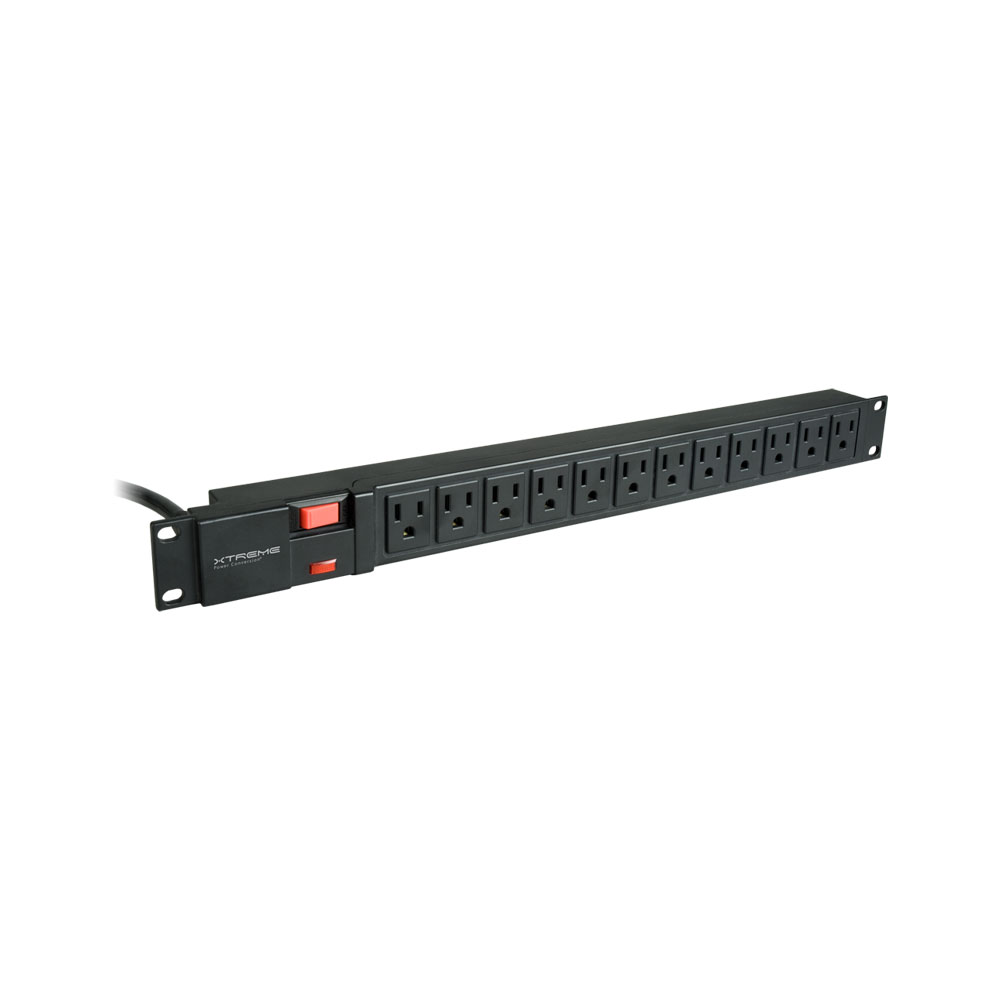

,XPD-1215HVPL,120V Value Power Distribution Unit,”5–15P, 6ft”,(12) 5–15R,1.4 lbs,19.0″ x 3.5″ x 1.75″

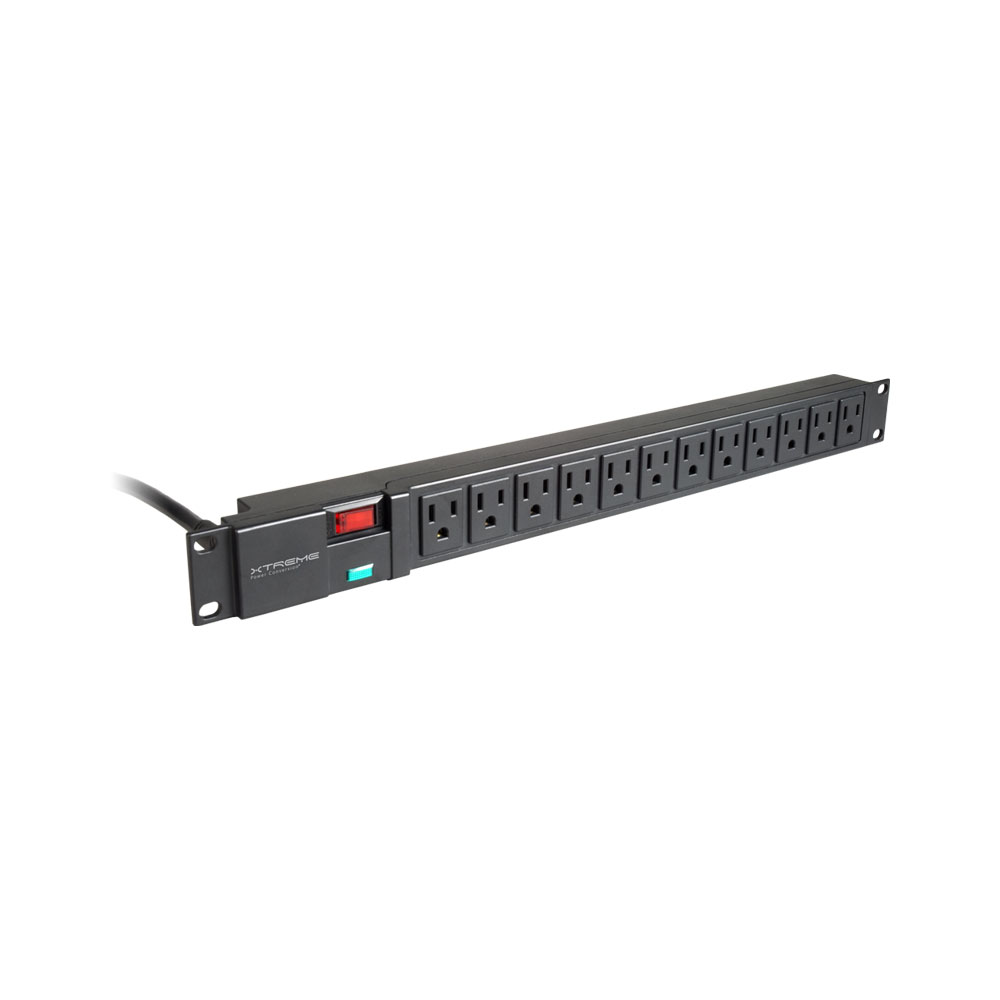

,XPS-1215HVP,120V Value Power Distribution Unit,”5–15P, 6ft”,(12) 5–15R,1.4 lbs,19.0″ x 3.5″ x 1.75″
[/table]
