UPS for Retail and Edge Applications
A POS reset mid-transaction costs the sale and the customer. A firewall reboot takes the whole store offline. A kitchen printer going dark during a dinner rush ripples through the entire operation. The right UPS — sized and placed correctly for each part of your store — prevents all three. This guide helps you find it.
Find the right UPS for your deployment
| Environment | Equipment | Recommended UPS | Typical runtime | Why |
|---|---|---|---|---|
| Wall-mounted devices and displays | POS terminals, digital menu boards, kiosks | J60 Series · 350VA, 600VA LithiumView product → | 10–30 min | Ultra-compact fanless UPS for direct device mounting — fits behind displays and kiosks where no cabinet is available. Wall, DIN rail, or flat mount. |
| Small cabinet or back office | Router, small switch, gateway | J60C Series · 600VA LithiumView product → | 10–30 min | Short-depth 1U UPS for shallow cabinets and compact back-office enclosures where standard rack UPS won’t fit. |
| Standard IDF or store rack | Switches, firewall, edge server | J90 Series · 1–3kVA LithiumView product → | 10–30 min | 1U online UPS with high-temperature operation, switchable outlets, and remote reboot capability. Best choice where reliability and remote management matter. |
| Standard IDF or store rack (cost-sensitive) | Switches, firewall, edge server | P91 Series 1–3 kVA StandardView product → | 5–15 min | Cost-effective rackmount online UPS for standard deployments. Same capacity as J90 at lower upfront cost — consider battery replacement lifecycle across distributed locations. |
| Large retail or restaurant location | Multiple systems, back-office IT | P91 Series 5–10 kVA StandardView product → | 15–45 min | Higher capacity for larger store environments with multiple systems and increased load. Appropriate where a single UPS protects the full back-office stack. |
| Kitchen and harsh electrical environments | Kitchen printers, POS peripherals, back-of-house equipment | JX Series + optional J60 View JX → | 5–15 min (with J60) | Kitchen electrical environments are genuinely noisy — compressors, refrigeration, and equipment cycling create conditions that damage sensitive electronics. JX provides isolation and conditioning. Pair with J60 for battery backup. |
| Multi-store or distributed retail | Remote IT infrastructure | Smart PDU (SPDU) View product → | N/A | Remote outlet-level monitoring, switching, and reboot capability across multiple locations. Eliminates truck rolls for simple device resets. |

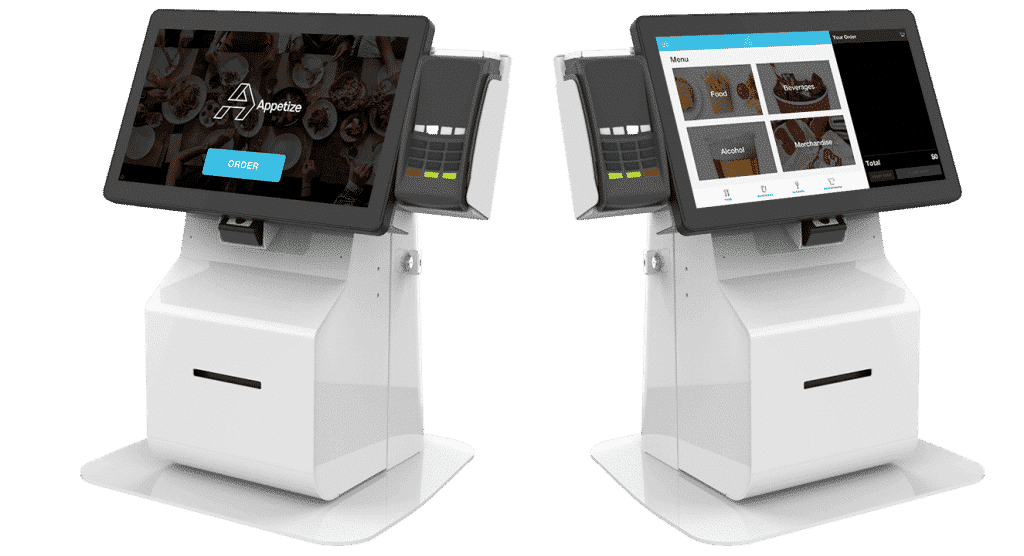

UPS for POS terminals, kiosks, and displays
Front-of-store equipment needs protection that fits the installation — not a standard UPS shoved on a shelf nearby. The J60 and J60C are designed for the environments where conventional UPS units don’t fit.

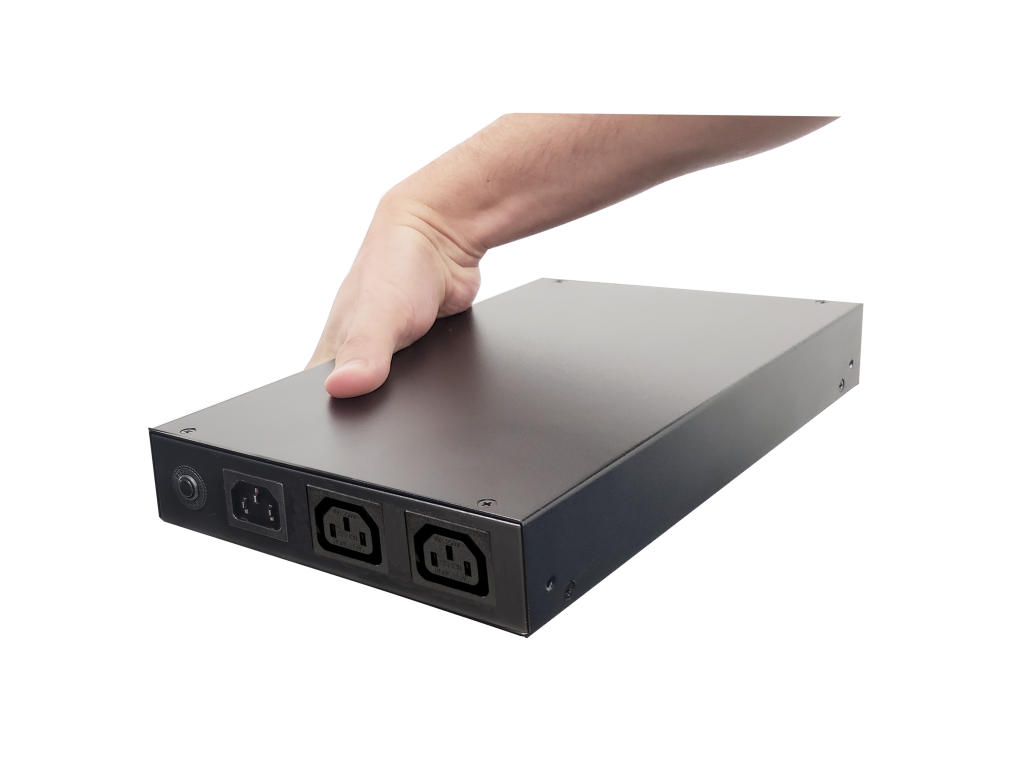

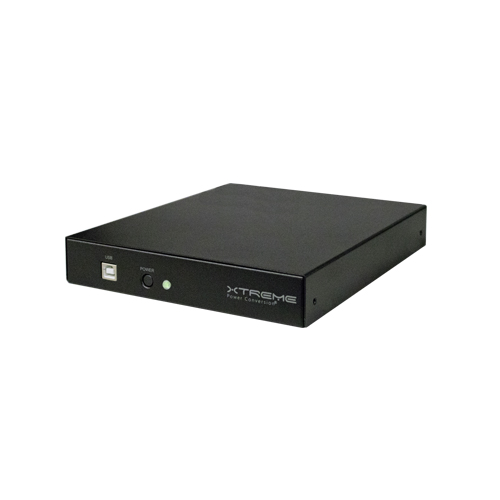

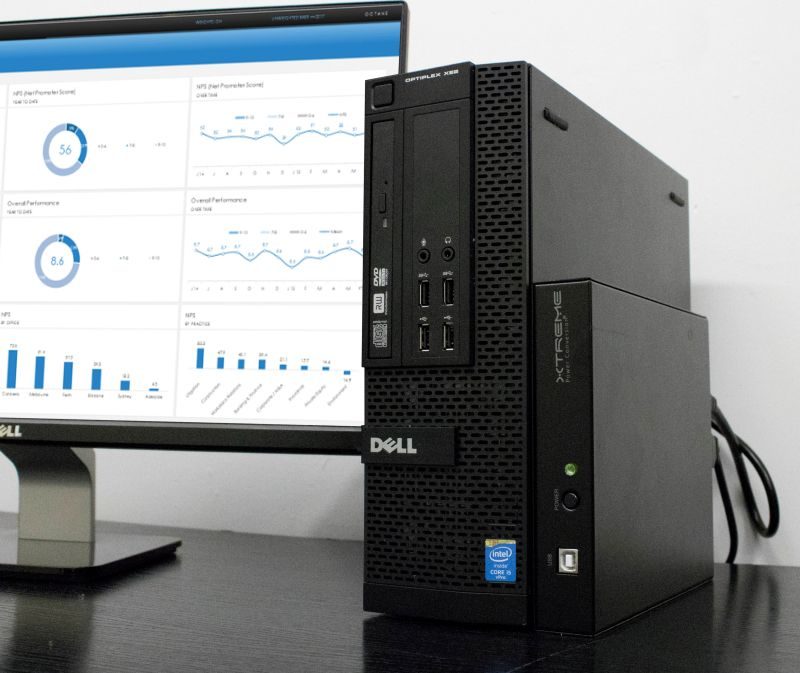

Designed for direct installation behind POS terminals, kiosk displays, and digital menu boards where a conventional UPS physically cannot go. Wall, DIN rail, or flat mount. Fanless design — no noise, no moving parts. LiFePO₄ battery eliminates replacement for the life of the kiosk.
View J60 →
Short-depth 1U form factor for structured wiring cabinets, wall-mount enclosures, and compact back-office installations. Same LiFePO₄ chemistry as the J60 — no battery replacement for the life of the deployment. Rack or wall mount.
View J60C →

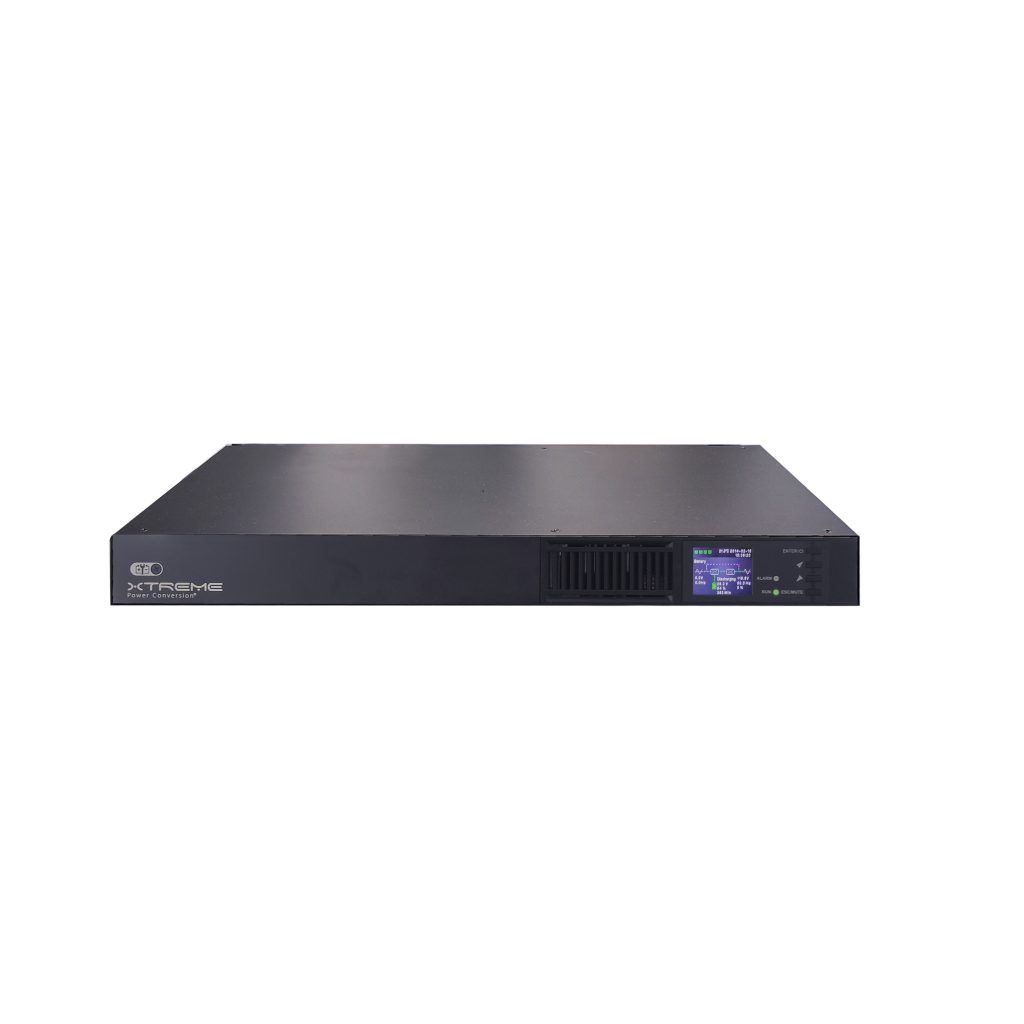

Continuous online power conditioning for store switches, firewalls, and edge servers. Switchable outlets enable remote reboot of individual devices without an on-site visit. High-temperature operation suits non-conditioned IDF locations. 1U rack or wall mount.
View J90 →Restaurant kitchens need more than backup power
A standard UPS protects against outages. It doesn’t protect against the electrical noise and voltage fluctuations that kitchen equipment generates continuously — the compressor cycling on the walk-in, the refrigeration units, the high-draw cooking equipment all sharing circuits with sensitive POS and printer electronics.
The solution is electrical isolation — a galvanic break between the kitchen electrical environment and the protected equipment — combined with battery backup for outage protection. The JX Series provides the isolation. The J60 provides the backup power.
- Walk-in refrigeration compressor cycling
- Commercial HVAC equipment startup transients
- Shared circuits between heavy and sensitive equipment
- Grounding variability in older commercial kitchens
- Voltage fluctuations from high-draw cooking equipment
- Electrical noise from variable-speed fan drives
- Kitchen display systems (KDS)
- Kitchen ticket printers
- Back-of-house POS terminals
- Order management systems
- Network equipment serving kitchen zones
Protecting store network racks and back-office infrastructure
Every retail location runs on its network — payments, inventory, loyalty programs, surveillance, and communications all pass through the store IDF. A network outage is a store outage. The J90 provides online protection with the remote management capability that distributed retail IT teams need most.
Why lithium matters for distributed retail
The economic case for lithium UPS is strongest in exactly the conditions that define distributed retail — multiple locations, limited on-site support, elevated ambient temperatures in back-of-house spaces, and battery replacement logistics that add up fast.
- Up to 15-year battery service life in ideal conditions
- No routine battery replacement across distributed locations
- Operates reliably in elevated ambient temperatures to 50°C
- Up to 70% smaller and lighter at equivalent capacity
- Fanless options for silent public-facing environments
- Higher upfront cost — lower total cost of ownership
- Battery replacement every 3–5 years
- Across 50 locations — 50 service visits per replacement cycle
- Capacity degrades in back-of-house ambient temperatures above 25°C
- Larger and heavier at equivalent capacity
- Lower upfront cost — higher lifecycle cost in distributed deployments
- Appropriate for cost-sensitive single-location deployments
For more detail: Lithium UPS vs lead acid UPS comparison →
Plan your retail power strategy
UPS sizing, model selection, and deployment planning for retail, restaurant, and distributed edge environments — from people who know the product line.
