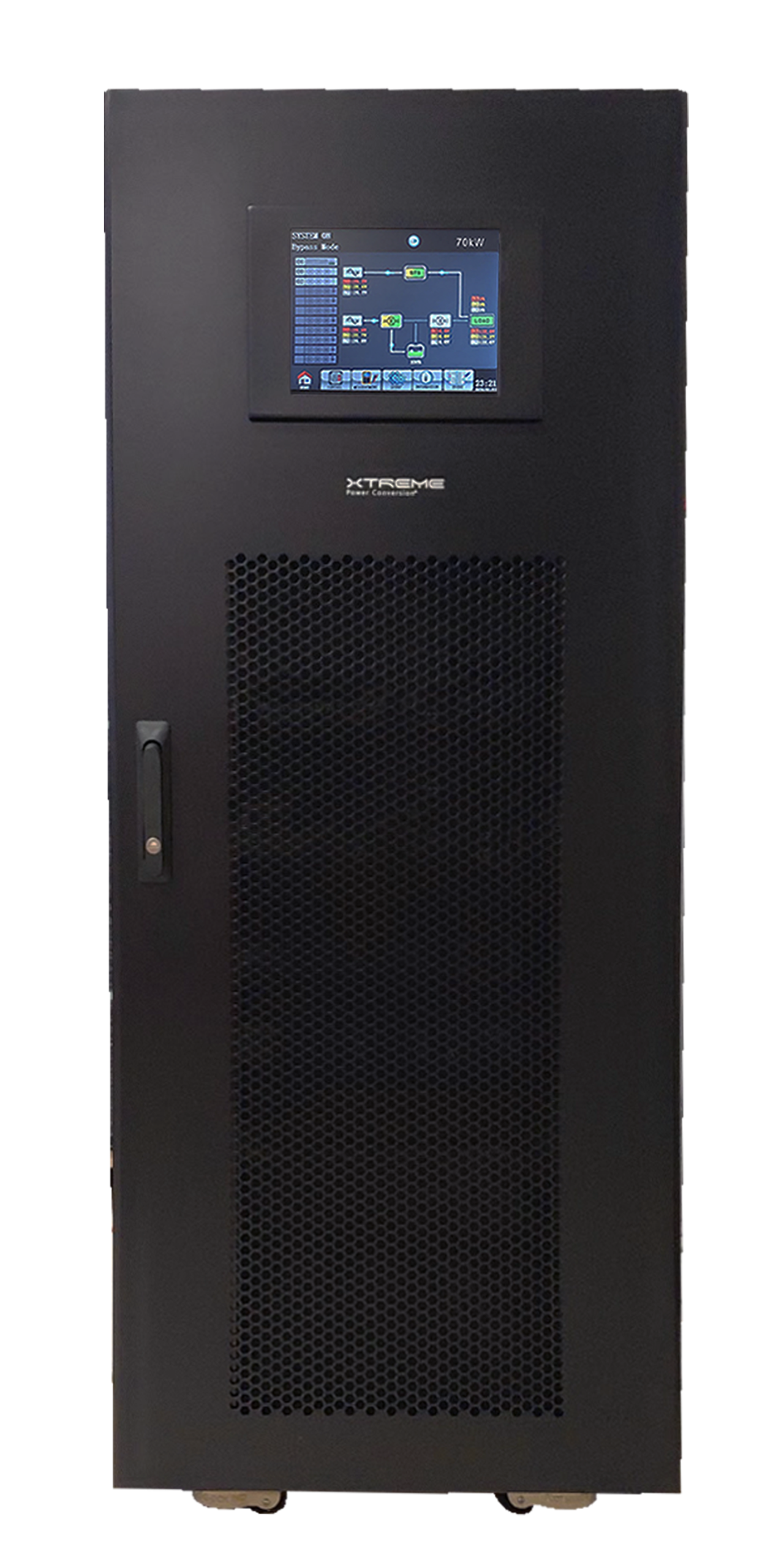

The Xtreme Power X90-1S is a compact, integrated 480V three-phase UPS platform designed for critical infrastructure where space, deployment simplicity, and service access are key design constraints.
This comparison hub evaluates the X90-1S against UPS platforms from Eaton, Schneider Electric, and Vertiv, focusing on real-world deployment differences in the 50–70 kW range.
Where X90-1S Fits
X90-1S is the compact, integrated 480V UPS platform within the Xtreme Power portfolio. It is positioned for applications where traditional multi-cabinet UPS systems introduce unnecessary complexity, footprint, and installation overhead.
It is commonly selected when electrical room space is limited, internal runtime is required without external battery cabinets, and simplified installation and service access are priorities—particularly in 480V 3-wire environments.
Comparison Matrix
This structure supports both platform-level evaluation and deployment-level comparison.
| Platform | Architecture | Comparison Page |
| Eaton 93PM | Modular UPS + external batteries | https://xpcc.com/x90-1s-vs-eaton-93pm/ |
| APC Galaxy VS | Modular UPS with internal + external batteries | https://xpcc.com/x90-1s-vs-apc-galaxy-vs/ |
| Vertiv APM2 | Modular UPS with scalable power and battery modules | https://xpcc.com/x90-1s-vs-vertiv-apm2/ |
How to Use This Page
Start with the comparison matrix to identify relevant platforms, then use the selector below to align system architecture with your deployment priorities. Each comparison page evaluates footprint, runtime strategy, installation complexity, and service model differences under real-world conditions.
Quick Selector — Choosing the Right 480V UPS Architecture
| If your priority is… | Recommended Platform | Why | Comparison Page |
| Smallest footprint and simplest installation | Xtreme Power X90-1S | Integrated UPS, batteries, and bypass in one cabinet | — |
| Replacing or comparing to Eaton 93PM | X90-1S vs Eaton 93PM | Eliminates external battery cabinets and reduces system complexity | https://xpcc.com/x90-1s-vs-eaton-93pm/ |
| Replacing or comparing to APC Galaxy VS | X90-1S vs Schneider Electric Galaxy VS | More compact system with simplified deployment | https://xpcc.com/x90-1s-vs-apc-galaxy-vs/ |
| Replacing or comparing to Vertiv APM2 | X90-1S vs Vertiv APM2 | Integrated architecture vs modular cabinet system | https://xpcc.com/x90-1s-vs-vertiv-apm2/ |
| Mobile or trailer-based deployment | X90-1S | Short cabinet height (58″) simplifies transport and installation | — |
| No rear clearance / against-wall install | X90-1S | Front-access service only | — |
| Need modular scalability beyond 70 kW | Vertiv APM2 or APC Galaxy VS | Modular expansion capability | See comparison pages |
| Need higher capacity in compact footprint | Xtreme Power X90-2S | Scales integrated architecture up to 140 kW | https://xpcc.com/products/x90-2s/ |
Architecture Positioning
The X90-1S is designed as an integrated UPS system, combining power electronics, batteries, and maintenance bypass into a single cabinet. This reduces system complexity and eliminates the need for separate battery enclosures in many applications.
Traditional UPS platforms such as Eaton 93PM, APC Galaxy VS, and Vertiv APM2 are based on modular or multi-cabinet architectures. While flexible, these designs typically increase footprint, installation complexity, and service scope.
X90-1S Integrated Design
- UPS, batteries, and bypass in a single cabinet
- Internal runtime without external battery cabinets
- Optional external battery cabinets for extended runtime
- Front-access service with no rear clearance required
Engineering Impact
- Reduced installed footprint
- Fewer field connections and faster installation
- Simplified maintenance access
- Improved suitability for space-constrained deployments
Why This Matters
At the 480V facility level, system architecture directly impacts installation cost, space utilization, and long-term serviceability. Systems that reduce cabinet count and simplify electrical integration can significantly lower deployment complexity while improving ongoing access for maintenance.
Deployment Environments
X90-1S is commonly deployed in:
- Industrial 480V 3-wire systems
- Edge data centers
- IDF and MDF environments
- Medical imaging systems
- Mobile and trailer-based systems
- Retrofit and space-constrained installations
Scaling Within the Xtreme Power Platform
For applications requiring higher capacity within a similarly compact footprint, the Xtreme Power X90-2S platform extends this architecture from 50 kW up to 140 kW while maintaining integrated system design and front-access service.
Explore X90-2S:
https://xpcc.com/products/x90-2s/
Related Architecture: Ai90 Rack UPS Platform
For high-density rack-level deployments, the Ai90 platform provides a rack-integrated UPS architecture supporting 50–70 kW systems within a 13U footprint.
Explore Ai90 platform:
https://xpcc.com/products/ai90/
Next Step
Select the comparison aligned with your application, then evaluate footprint, runtime strategy, and service model differences based on your deployment constraints.
Summary
The X90-1S represents a shift toward compact, integrated UPS architecture in 50–70 kW 480V applications. Compared to traditional modular and multi-cabinet systems, it reduces footprint, simplifies installation, and improves service accessibility while maintaining flexibility for extended runtime.
Plan With Confidence
Xtreme Power Conversion supports UPS sizing, runtime planning, and specification development for 480V facility UPS systems. Phone: (800) 582-4524
