Distributed Rack-Level Power vs Centralized Electrical Room Design
Modern infrastructure design increasingly requires flexibility, scalability, and efficient use of physical space. UPS architecture plays a critical role in how power protection is deployed, managed, and expanded.
Two primary approaches are used:
• Rack-based UPS architecture (distributed)
• Centralized UPS architecture (facility-level)
Each approach affects system layout, installation complexity, and long-term infrastructure planning.
Architecture Overview
Rack-Based UPS Architecture
Rack UPS systems are deployed directly within IT racks or equipment enclosures. Power protection is distributed across the infrastructure, aligning UPS capacity with individual racks or rows.
This approach is commonly used in:
• edge data centers
• AI and high-density compute environments
• telecommunications infrastructure
• distributed enterprise IT
Centralized UPS Architecture
Centralized UPS systems are installed in a dedicated electrical room or facility space. Power is distributed from a single UPS system to downstream loads through facility wiring and distribution systems.
This approach is commonly used in:
• traditional data centers
• large facility infrastructure
• legacy centralized IT environments

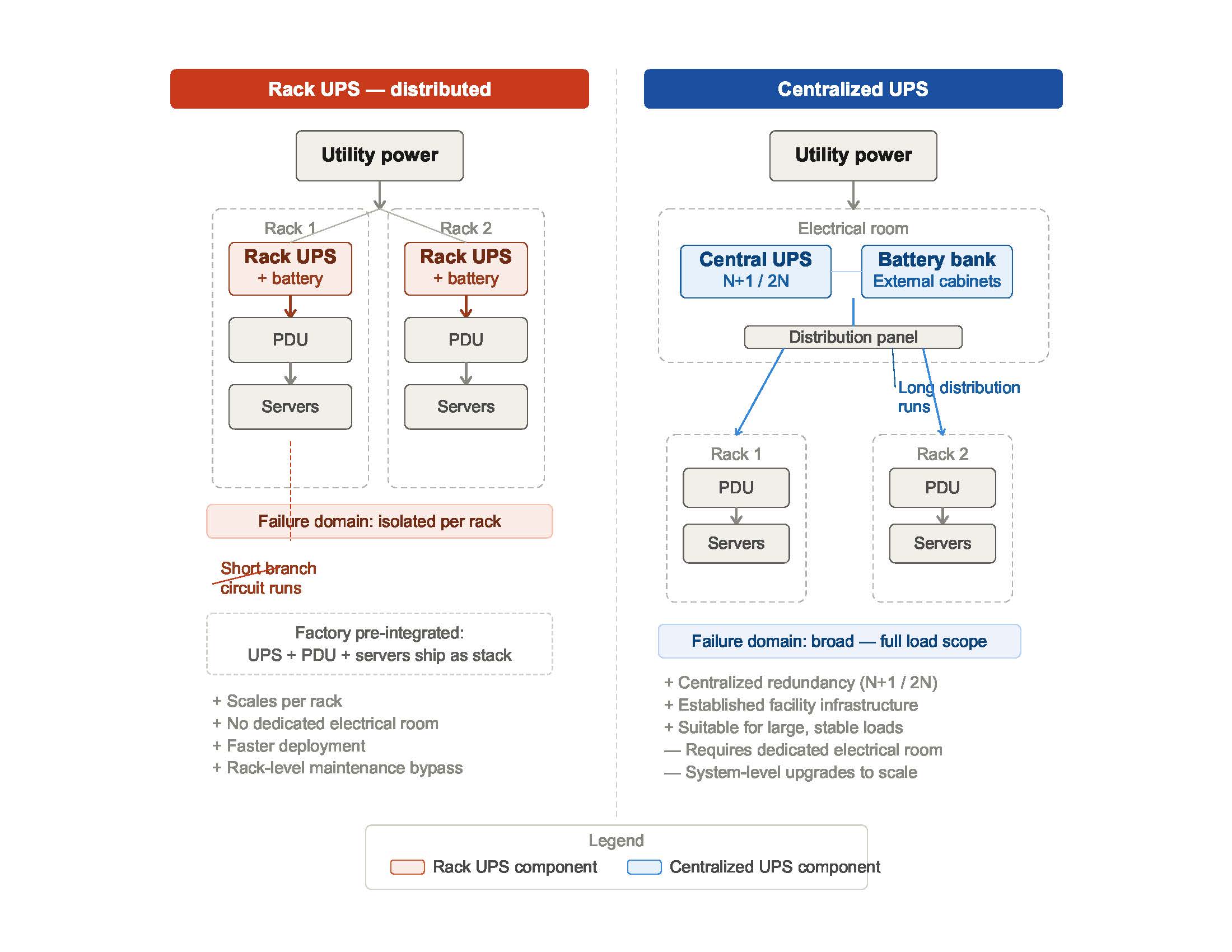

Rack UPS vs Centralized UPS Comparison
| Feature | Rack UPS (Distributed) | Centralized UPS |
| Deployment Location | Installed in IT rack | Installed in electrical room |
| Architecture Model | Distributed | Centralized |
| Footprint | Uses existing rack space | Requires dedicated floor space |
| Cabling | Short branch circuits | Long distribution runs |
| Scalability | Scales per rack or row | Scales at system level |
| Installation Complexity | Standard rack deployment | Requires facility planning |
| Deployment Speed | Faster, modular rollout | Longer installation timeline |
| Factory Integration | Pre-integrated with rack, servers, and PDUs | Installed and integrated on-site |
| Battery Location | Integrated within rack or nearby | External cabinets or large internal banks |
| Redundancy Strategy | Distributed redundancy | Centralized N+1 systems |
| Failure Impact | Localized to rack | Can affect larger system scope |
| Expansion Flexibility | Incremental | Requires system-level upgrades |
Infrastructure Design Considerations
Physical Space and Density
Rack UPS architecture enables power protection to be deployed within existing rack space, reducing the need for dedicated electrical rooms.
Centralized UPS systems require floor-standing cabinets and supporting infrastructure, increasing total facility footprint.
Power Distribution Strategy
Rack-based systems reduce the distance between the UPS and the load, minimizing distribution complexity and potential losses.
Centralized systems rely on facility-level power distribution, increasing cabling requirements and coordination with electrical infrastructure.
Scalability and Growth
Rack UPS systems scale incrementally with infrastructure growth, allowing capacity to be added as needed.
Centralized UPS systems typically require upfront sizing or future capacity planning at the system level.
Deployment and Commissioning
Rack UPS systems can be deployed using standard rack installation practices, enabling faster rollout and reduced project timelines.
Centralized UPS deployments often require coordinated installation, electrical integration, and commissioning processes.
Factory Integration and Deployment Efficiency
Rack-based UPS systems are often integrated into complete rack solutions prior to shipment. This can include servers, networking equipment, and power distribution units (PDUs), creating a pre-configured infrastructure module.
This approach reduces on-site installation time and shifts system integration from the field to the factory.
Key advantages include:
• reduced installation labor at the data center
• minimized wiring and configuration errors
• faster commissioning and system validation
• consistent, repeatable deployment
In contrast, centralized UPS systems are installed and integrated at the site, requiring coordination between electrical contractors, IT teams, and facility infrastructure.
This model aligns with the growing adoption of prefabricated and modular data center deployment strategies.
Modern Infrastructure Trends
The shift toward distributed computing, edge deployments, and high-density AI workloads is driving increased adoption of rack-based UPS architectures.
These environments benefit from:
• localized power protection
• reduced infrastructure complexity
• improved deployment flexibility
• alignment between compute growth and power scaling
Where Centralized UPS Still Fits
Centralized UPS systems remain appropriate in:
• large-scale facility designs
• environments requiring centralized redundancy strategies
• legacy infrastructure with established electrical distribution
Rack-Level UPS Platform Example

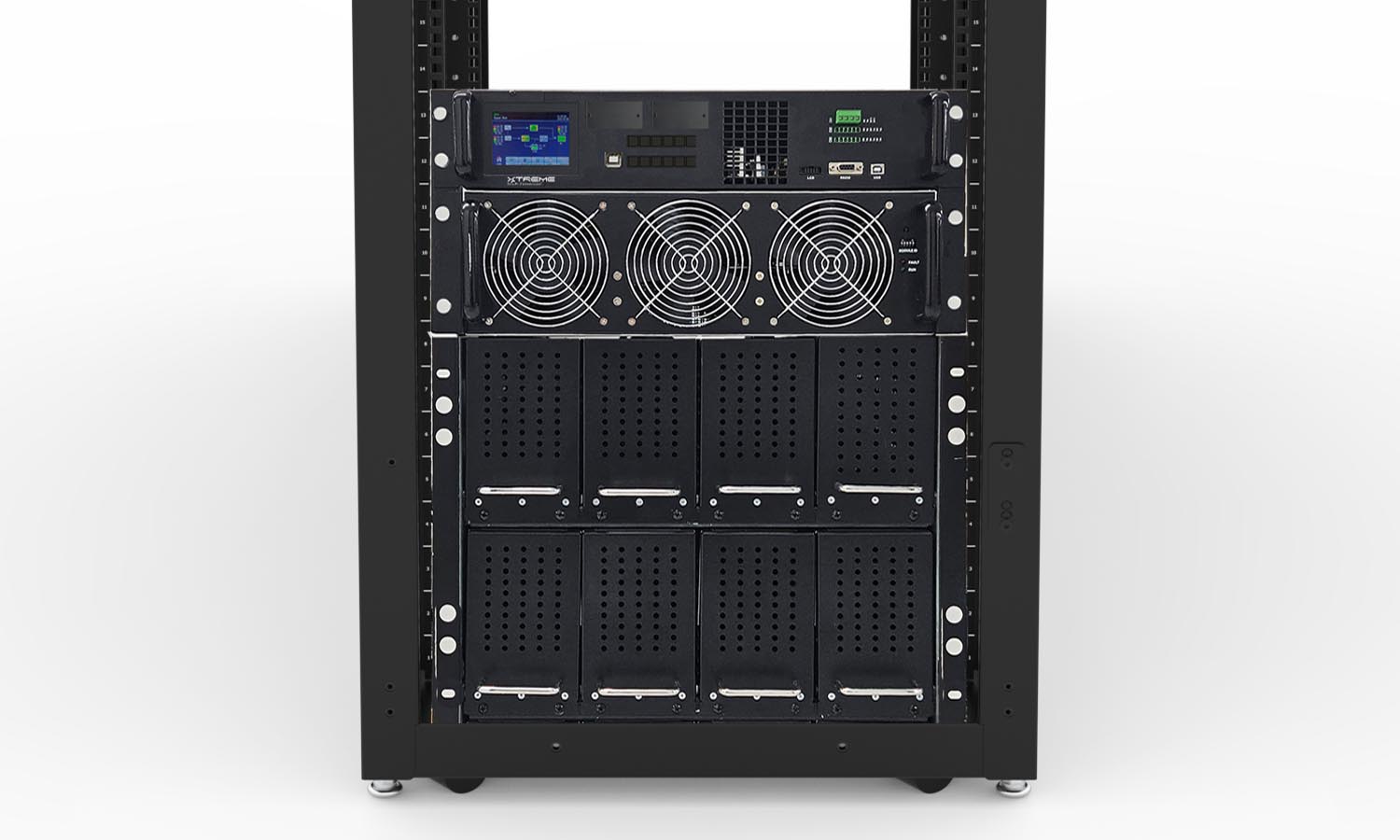

The Xtreme Power Ai90 platform represents a rack-integrated UPS architecture designed to align power protection with modern infrastructure deployment models.
By integrating UPS conversion, batteries, maintenance bypass, and distribution within a compact rack footprint, rack-based systems reduce infrastructure complexity while supporting scalable deployment.
Explore the Ai90 rack-integrated UPS platform:
• Product details: https://xpcc.com/products/ai90/
• Platform overview: https://xpcc.com/ai90-modular-ups-systems/
Conclusion
Rack-based and centralized UPS architectures represent two fundamentally different approaches to power protection.
Rack UPS systems prioritize distributed deployment, scalability, and space efficiency, while centralized UPS systems focus on facility-level protection and centralized control.
Understanding these differences is critical when designing infrastructure for modern compute environments.
