Isolation UPS for Lab & Industrial Power Quality

Most UPS systems protect against outages. Isolation transformer-based UPS systems solve a different problem — one that runtime alone can’t fix. This guide covers when electrical isolation is required, how it differs from transformerless architecture, and how to specify it correctly for laboratory, industrial, and electrically complex environments.

The problem isolation solves

A mass spectrometer doesn’t care whether your UPS has good efficiency specs. If facility noise is corrupting its ground reference, measurements drift — and the transformerless UPS you installed for runtime protection isn’t solving it. The instrument is still electrically connected to every compressor, pump, and drive on the distribution system.

This is the distinction that matters: conventional online UPS systems provide energy continuity. Isolation transformer-based UPS systems provide galvanic separation — a hard electrical break between facility power and the protected load. These are different problems with different solutions, and specifying the wrong architecture for an electrically complex environment can leave engineers chasing instrumentation anomalies that the UPS was never designed to address.

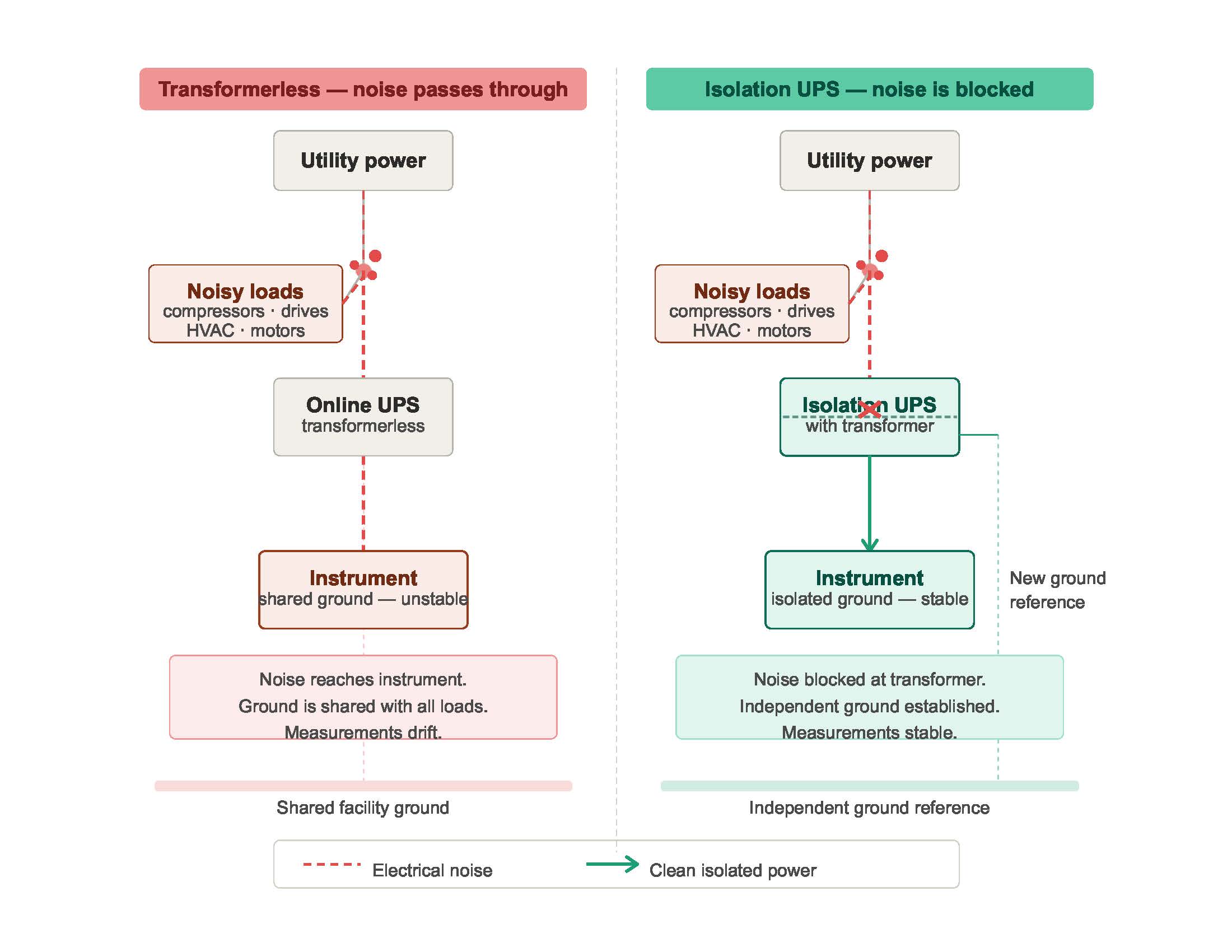

Isolation UPS vs transformerless UPS — noise propagation concept Left panel shows noise passing freely through a transformerless UPS to an instrument on a shared ground. Right panel shows noise blocked by an isolation transformer with an independent ground reference established. Transformerless — noise passes through Isolation UPS — noise is blocked Utility power Noisy loads compressors · drives HVAC · motors Online UPS transformerless Instrument shared ground — unstable Noise reaches instrument. Ground shared with all loads. Measurements drift. Shared facility ground Utility power Noisy loads compressors · drives HVAC · motors Isolation UPS with transformer New ground reference Instrument isolated ground — stable Noise blocked at transformer. Independent ground established. Measurements stable. Independent ground reference Electrical noise Clean isolated power
Fig. 1 — Galvanic separation: transformerless UPS leaves the instrument on a shared facility ground; isolation transformer creates an independent ground reference
Engineering perspective

A significant portion of power quality issues affecting sensitive instrumentation originate within facility distribution systems — not from the utility. Motor startups, VFD switching, and shared grounding across distribution zones create disturbances that bypass conventional UPS protection entirely. Isolation architecture addresses the facility source, not just the utility feed.


Where isolation UPS is required

Isolation UPS is not a universal upgrade from transformerless systems — it solves specific problems in specific environments. The following criteria identify when isolation architecture should be specified rather than conventional UPS deployment.

Specify isolation UPS when…
  • Sensitive instrumentation performance varies with electrical conditions
  • Grounding reference stability cannot be guaranteed across facility zones
  • Motor-driven equipment operates on shared or adjacent circuits
  • Variable frequency drives are present in the facility
  • Multiple distribution zones create complex grounding relationships
  • Regulatory validation requires predictable electrical performance
  • Outages AND electrical disturbances have caused operational interruptions
  • Previous UPS deployment did not resolve instrumentation instability
Transformerless UPS is sufficient when…
  • Protection goal is runtime continuity during outages only
  • Electrical environment is clean and well-controlled
  • Loads are standard IT equipment without measurement sensitivity
  • Facility grounding is modern, single-point, and well-maintained
  • No motor-driven equipment on shared distribution
  • Space and efficiency constraints outweigh power quality needs
  • New construction with dedicated clean electrical infrastructure
Design note

In practice, isolation deployment decisions are usually driven by observed operational problems — not theoretical risk assessment. If a previous transformerless UPS installation didn’t resolve the instrumentation issue, electrical isolation is the next diagnostic step, not a larger transformerless system.


Application environments

Three environments consistently present the electrical conditions that isolation UPS architecture addresses. Each has different disturbance sources, different load sensitivities, and different engineering considerations.

Application
Analytical laboratory instrumentation

Mass spectrometers, chromatography platforms, and spectroscopic systems depend on stable grounding to maintain measurement integrity. Facility-generated noise — from HVAC compressors, centrifuges, or shared circuits — can affect calibration stability and data repeatability in ways that are difficult to diagnose without power quality monitoring.

Mass spectrometry UPS considerations →
Application
Industrial automation and process control

PLCs, robotics controllers, and industrial networking systems operate alongside high-current motor loads and switching electronics. Legacy distribution infrastructure common in manufacturing compounds grounding instability. Isolation UPS limits disturbance propagation and provides a stable reference for control system electronics.

Industrial automation UPS considerations →
Application
Electrically harsh commercial environments

Refrigeration-intensive retail locations, restaurants, and legacy commercial buildings often operate with shared circuits, aging distribution infrastructure, and high-cycling compressor loads. Technology-dependent systems can experience reliability issues that trace to facility electrical conditions rather than utility reliability.

Commercial environment UPS considerations →
Application
Multi-building and legacy facility infrastructure

Facilities with electrical distribution spanning multiple buildings or decades of infrastructure evolution frequently exhibit complex grounding relationships. Ground loops, floating neutrals, and impedance mismatches across distribution zones create conditions where isolation transformer architecture provides meaningful operational benefit.

Discuss your facility conditions →
Not sure if your environment requires isolation?
Our engineers can review your facility electrical conditions and load profile before you specify.
Request an assessment

Common misconceptions about power quality

These misunderstandings consistently lead to misdiagnosed problems and misspecified solutions in laboratory and industrial environments.

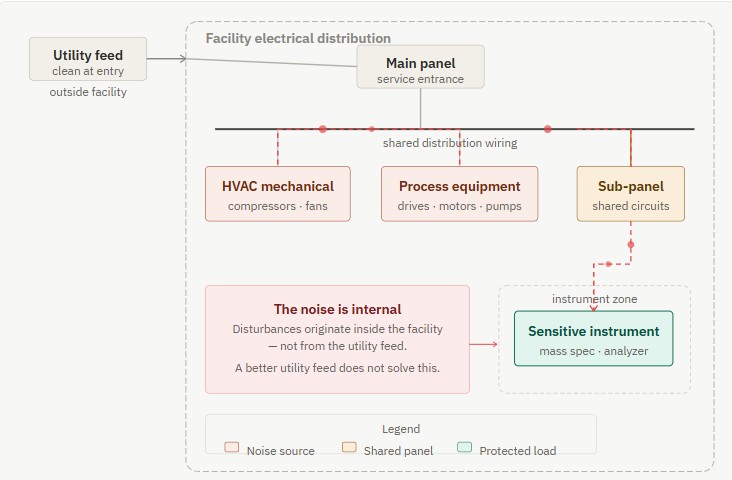

Facility disturbance sources diagram Schematic floor plan showing that electrical noise originates inside the facility from HVAC, process equipment, and shared panels — not from the utility — and propagates through shared wiring to sensitive instruments. Utility feed clean at entry outside facility Facility electrical distribution Main panel service entrance shared distribution wiring HVAC mechanical compressors · fans Process equipment drives · motors · pumps Sub-panel shared circuits instrument zone Sensitive instrument mass spec · analyzer The noise is internal Disturbances originate inside the facility — not from the utility feed. A better utility feed does not solve this. Legend Noise source Shared panel Protected load
Fig. 2 — Where disturbances originate: noise sources are internal to the facility, propagating through shared wiring to sensitive instruments regardless of utility power quality
Myth
“All power disturbances come from the utility.”
A significant share originates within the facility — from compressors, VFDs, motor startups, and shared distribution. Utility-grade power entering the building can still become problematic by the time it reaches the instrument.
Myth
“A UPS with more runtime will solve the instrumentation problem.”
Runtime addresses outages. It does nothing for electrical noise, harmonic distortion, or grounding instability — the disturbances most likely affecting analytical instrumentation during normal operation.
Myth
“Grounding variability is an unavoidable condition.”
Isolation transformer architecture creates an independent ground reference for the protected load, removing it from facility grounding variability. It’s an engineered solution, not a permanent constraint.
Myth
“All online UPS systems provide equivalent electrical performance.”
Online double-conversion provides a clean output waveform — but transformerless designs remain electrically connected to the facility ground. Isolation architecture breaks that connection entirely.
Myth
“Motor-driven equipment only affects heavy industrial systems.”
HVAC compressors, laboratory centrifuges, and even building elevators generate transients and harmonic distortion that propagate through shared facility wiring to sensitive instrumentation on adjacent circuits.
Myth
“A power conditioner is equivalent to an isolation UPS.”
Conditioning equipment addresses steady-state disturbances but provides no energy storage. During a utility outage, a power conditioner provides zero runtime. Isolation UPS combines galvanic separation with battery-backed continuity.

Isolation vs. transformerless vs. power conditioning

Capability Isolation UPS Transformerless UPS Power conditioner
Outage runtime protection✓ Yes✓ Yes✗ No
Galvanic separation✓ Yes — hard break✗ NoPartial (some designs)
Common-mode noise reduction✓ HighLowModerate
Ground reference stabilization✓ Independent reference✗ Shared facility ground✗ Shared facility ground
Output waveform quality✓ Online double-conversion✓ Online double-conversionDepends on design
Harmonic disturbance toleranceHighModerateModerate–High
Physical footprintLarger (transformer)CompactVaries
EfficiencySlightly lowerHigherHigh (no conversion)
Best forLab, industrial, harsh commercialClean IT environmentsSteady-state only

Electrical system design considerations

Integration of isolation UPS into facility infrastructure involves more than load sizing. The following factors should be evaluated as part of any isolation UPS deployment.

Grounding and bonding configuration

Isolation transformer architecture creates a separately derived system under NEC Article 250. This requires establishing a new grounding electrode connection at the secondary — a design decision that should be coordinated with the facility electrical engineer. Improper grounding of an isolation UPS negates the separation benefit.

Upstream protection coordination

Transformer impedance interacts with upstream overcurrent protection. Short-circuit current contribution from an isolation transformer secondary differs from a direct utility feed — coordination studies should account for this, particularly in facilities with existing overcurrent protection infrastructure.

Placement within the facility electrical hierarchy

Isolation UPS provides maximum benefit when positioned as close as practical to the sensitive load — not at the facility service entrance. Placing isolation UPS upstream of long distribution runs allows disturbances to re-enter the system between the UPS and the load. Subpanel-level deployment is often preferable to centralized upstream placement.

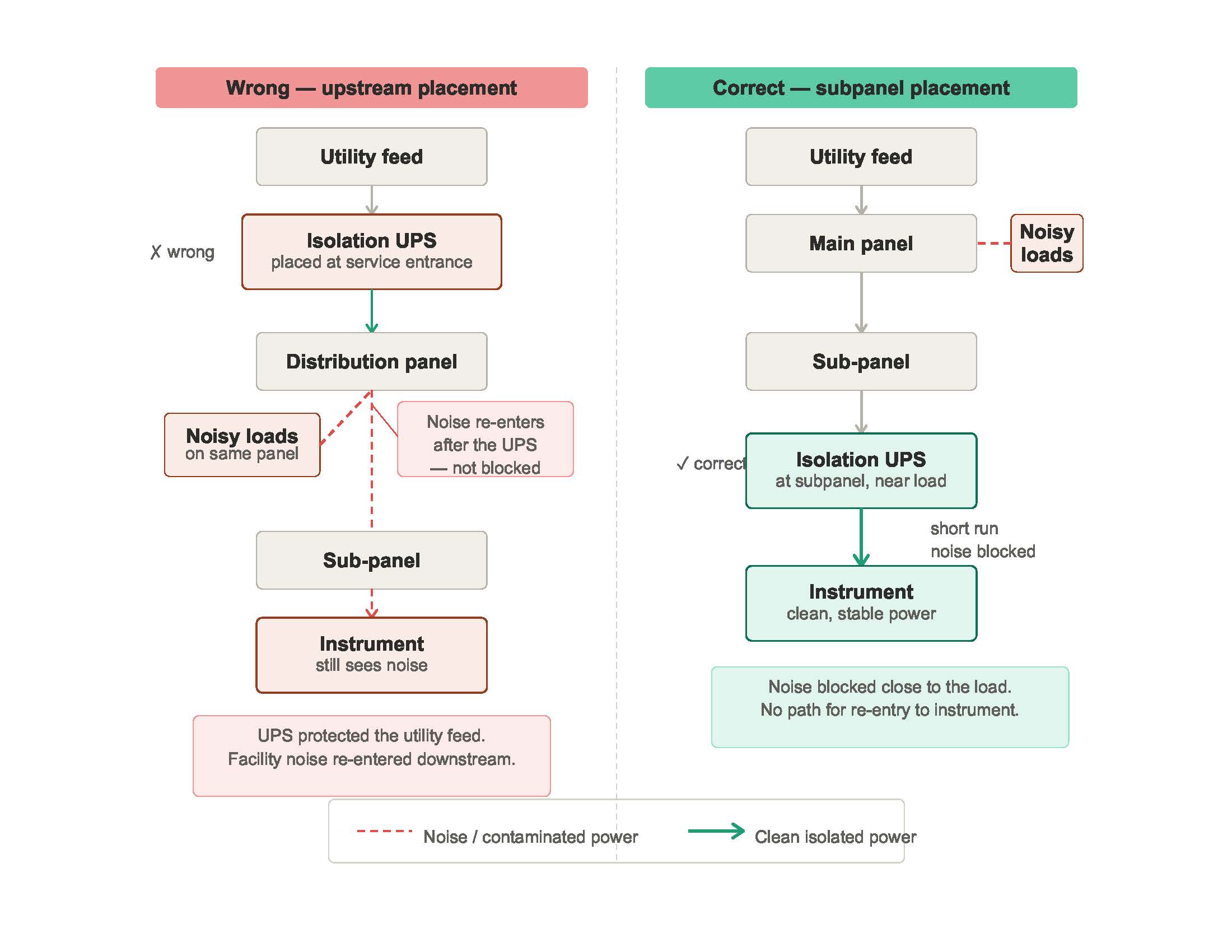

Isolation UPS placement — wrong vs correct within facility electrical hierarchy Side-by-side comparison showing incorrect upstream placement of isolation UPS at the service entrance on the left, where noise re-enters between the UPS and the instrument, versus correct subpanel-level placement close to the sensitive load on the right. Wrong — upstream placement Correct — subpanel placement Utility feed Isolation UPS placed at service entrance ✗ wrong Distribution panel Noisy loads on same panel Noise re-enters after the UPS — not blocked Sub-panel Instrument still sees noise UPS protected the utility feed. Facility noise re-entered downstream. Utility feed Main panel Noisy loads Sub-panel Isolation UPS at subpanel, near load ✓ correct short run noise blocked Instrument clean, stable power Noise blocked close to the load. No path for re-entry to instrument. Legend Noise / contaminated power Clean isolated power
Fig. 3 — Placement matters: upstream isolation UPS at the service entrance allows facility noise to re-enter downstream; subpanel placement close to the load eliminates the re-entry path

Harmonic mitigation coordination

In environments with significant VFD or nonlinear load presence, isolation UPS deployment may be coordinated with harmonic filters or power factor correction equipment. Isolation UPS does not eliminate harmonic distortion generated by downstream nonlinear loads — only disturbances originating upstream of the isolation boundary.


TX91 isolation UPS — a deployed example

TX91 Series Isolation UPS

The TX91 integrates an isolation transformer within an online double-conversion UPS architecture — combining galvanic separation, clean output waveform, and battery-backed runtime in a single system. It eliminates the need to stack a separate power conditioner upstream of a transformerless UPS.

ArchitectureOnline double-conversion with integrated isolation transformer
Capacity range3–10 kVA
Input voltage240V input / 120V or 208V output
IsolationGalvanic separation — separately derived output
Form factorRack or tower
RuntimeExtended battery options available

Isolation UPS — frequently asked questions

What does an isolation UPS do?
An isolation UPS adds a galvanically isolated transformer that separates the load from the source, blocking common-mode noise and ground faults that disrupt sensitive laboratory and industrial equipment.
When is an isolation UPS required?
It's needed where sensitive instruments demand clean, isolated power — laboratories, medical and industrial settings with ground-noise or common-mode problems, or where standards call for galvanic isolation.
What is the difference between isolation, transformerless, and power conditioning?
An isolation UPS uses a transformer for galvanic separation; a transformerless UPS is lighter and more efficient but does not isolate; a power conditioner cleans power without the full backup of a UPS. The guide compares all three.
Does an online double-conversion UPS already provide isolation?
Not necessarily. A standard online UPS conditions power but does not galvanically isolate the load unless it includes an isolation transformer — a common misconception this guide addresses.
What is the TX91?
The TX91 is Xtreme Power's isolation UPS, shown in this guide as a deployed example for laboratory and industrial power-quality applications.
