The Xtreme Power Li90 20 kVA is a compact three-phase lithium UPS designed for electrical rooms, telecom infrastructure, and facility systems requiring higher-capacity power protection in space-constrained environments. The system delivers full 20 kW three-phase power with integrated LiFePO₄ batteries and up to 22 minutes of internal runtime in a slim, lightweight cabinet that eliminates external battery cabinets and simplifies deployment.
Part of the Li90 3-phase lithium UPS platform and engineered for high-density installations, the 20 kVA model supports scalable internal runtime of 15 or 22 minutes using modular battery blocks while maintaining a compact footprint. This architecture enables deployment in locations where conventional 20 kVA UPS systems require large external VRLA battery frames to achieve similar runtime.
Li90 20 kVA lithium UPS — 12.6″ wide compact cabinet with internal LiFePO₄ batteries
Request Li90 20 kVA engineering pricing, drawings, or runtime configuration support →
(800) 582-4524
sales@xpcc.com
Compact 20 kVA 3-Phase UPS for Facility and Infrastructure Systems
Many infrastructure environments require more than distributed 10 kVA protection but cannot accommodate large centralized UPS cabinets. The Li90 20 kVA provides high-capacity lithium UPS protection in a compact footprint suitable for facility electrical rooms, telecom infrastructure, and distributed building systems.
Typical deployment environments:
- Telecom and communication rooms
- Facility electrical rooms
- Hospitality and casino infrastructure
- Industrial control systems
- Edge and distributed IT sites
- Small central equipment rooms
Internal Runtime Flexibility in a Compact 20 kVA Cabinet
The Li90 20 kVA provides scalable internal lithium runtime using modular battery blocks integrated within the UPS enclosure. This allows extended backup duration without external battery cabinets while preserving a compact footprint.
Internal runtime options:
- 15 minutes — 2 battery modules
- 22 minutes — 3 battery modules
This internal runtime capability is uncommon in compact 3-phase UPS systems, where competing 20 kVA platforms typically require external battery cabinets to achieve extended backup duration.
Key advantages:
- Extended runtime without external cabinets
- Compact installation footprint
- Simplified wiring and deployment
- Reduced floor loading
- Flexible runtime selection
Lithium UPS Architecture Eliminates External Batteries
The Li90 20 kVA integrates lithium iron phosphate batteries within the UPS cabinet, eliminating the need for external battery frames commonly required with VRLA UPS systems. This allows higher-capacity three-phase UPS deployment in constrained electrical spaces without large battery cabinets.
Architecture benefits:
- Internal lithium batteries
- Reduced installation footprint
- Simplified wiring and deployment
- Lower system weight
- Minimal maintenance access
- Faster installation
Learn more about the Li90 platform:
https://xpcc.com/products/li90/
High-Temperature 20 kVA UPS for Harsh Environments
The Li90 20 kVA supports reliable operation in ambient temperatures up to 50 °C (122 °F), enabling deployment in telecom shelters, industrial rooms, and electrical spaces where VRLA UPS systems are not suitable or require dedicated cooling.
Related solutions:
https://xpcc.com/high-temperature-ups/

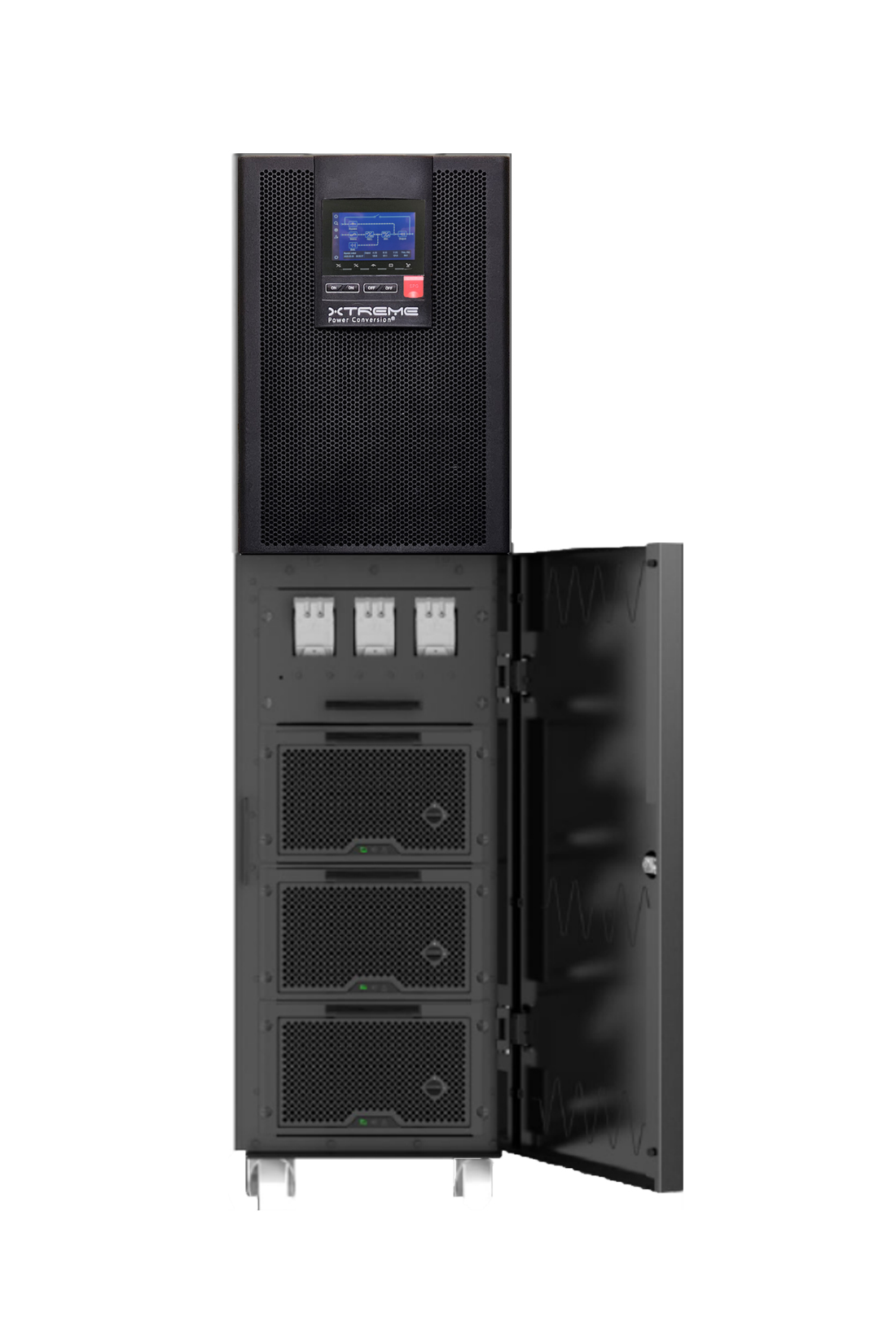

Li90 20 kVA UPS with integrated lithium battery modules and power electronics in a single slim enclosure
Internal Runtime vs Typical 20 kVA VRLA UPS Systems
Many conventional 20 kVA three-phase UPS systems provide limited internal runtime and rely on external VRLA battery cabinets to achieve extended backup duration.
The Li90 20 kVA integrates lithium batteries to deliver up to 22 minutes runtime within the UPS cabinet itself.
| Feature | Li90 20 kVA | Typical 20 kVA VRLA UPS |
| Internal runtime | Up to 22 min | 5–10 min |
| External cabinets required | No | Yes for >10–15 min |
| Battery technology | Lithium | VRLA |
| Footprint | Compact | Large with cabinets |
| Installation complexity | Low | Higher |
| Maintenance | Minimal | Higher |
Ideal Replacement for 20 kVA VRLA UPS Systems
Many legacy 20 kVA three-phase UPS installations rely on large external VRLA battery cabinets that consume floor space and require periodic replacement. The Li90 20 kVA replaces these systems with an integrated lithium UPS architecture offering long service life, extended runtime, and reduced maintenance.
Compared to typical VRLA 20 kVA UPS:
- Smaller cabinet footprint
- Lower system weight
- No external batteries
- Up to 22 minutes internal runtime
- Longer battery life
- Higher temperature tolerance
- Reduced lifecycle cost
Li90 20 kVA Applications
The Li90 20 kVA supports compact three-phase lithium UPS deployments across facility and infrastructure environments:
Telecom and distributed infrastructure
https://xpcc.com/industrial-lithium-ups/
Hospitality and casino systems
https://xpcc.com/hospitality-ups-systems/
Industrial automation and control
https://xpcc.com/industrial-lithium-ups/
IT and equipment rooms
https://xpcc.com/data-center-ups/
Li90 3-Phase Lithium UPS Family
The Li90 platform provides compact three-phase lithium UPS capacity across multiple power levels:
10 kVA lithium UPS — https://xpcc.com/li90-10kva-lithium-ups/
20 kVA lithium UPS — https://xpcc.com/li90-20kva-lithium-ups/
30 kVA lithium UPS — https://xpcc.com/li90-30kva-lithium-ups/
Explore the Li90 platform:
https://xpcc.com/products/li90/
20 kVA Lithium UPS Specifications
Rated power: 20 kVA / 20 kW
Topology: Online double conversion
Battery chemistry: Lithium iron phosphate (LiFePO₄)
Battery design life: Up to 15 years (ideal conditions)
Internal runtime: 15–22 minutes (2–3 modules)
Operating temperature: Up to 50 °C (122 °F)
Voltage: 208/120 V 3-phase
Battery location: Internal
Engineering Documents
Download detailed Li90 20 kVA technical documentation:
Li90 product flyer (10–30 kVA)
https://xpcc.com/wp-content/uploads/Li90-Flyer.pdf
Li90 outline drawing
https://xpcc.com/wp-content/uploads/Li90-Outline-Drawing.pdf
Li90 208 V outline drawing
https://xpcc.com/wp-content/uploads/Li90-OND-208-208-R0.pdf
Li90 user manual
https://xpcc.com/wp-content/uploads/LI90-Users-Manual.pdf
Evaluate Li90 20 kVA for Your Application
The Li90 20 kVA provides compact three-phase lithium UPS protection for facility and infrastructure environments requiring internal batteries, extended runtime, reduced footprint, and high-temperature capability.
