Reliable UPS Power for Your 120VAC and 230V AC Industrial Applications

The J60 Lithium UPS combined with the DIN Rail Mounting Kit offers robust power protection and versatile installation options—ideal for industrial environments including automation systems, PLCs, and industrial computers.

Features of the World’s Smallest AC UPS Battery Backup

  • Compact & Lightweight Design
    Ultra-slim profile (1.25″ thick) and lightweight (3.4 lbs) form factor makes it easy to install in tight or space-constrained industrial environments.
  • Long-Life Lithium Battery
    Equipped with Lithium Iron Phosphate (LiFePO₄) cells offering up to 10 years of service life and 2,000 discharge cycles—significantly reducing maintenance and replacement costs.
  • High-Temperature Performance
    Built to withstand demanding environments, with reliable operation at continuous temperatures up to 40°C (104°F) and peaks up to 50°C (122°F).

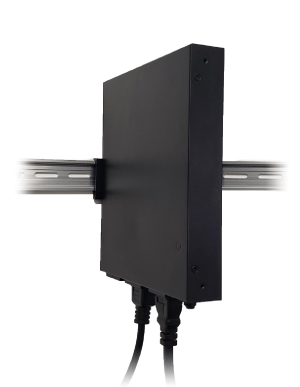

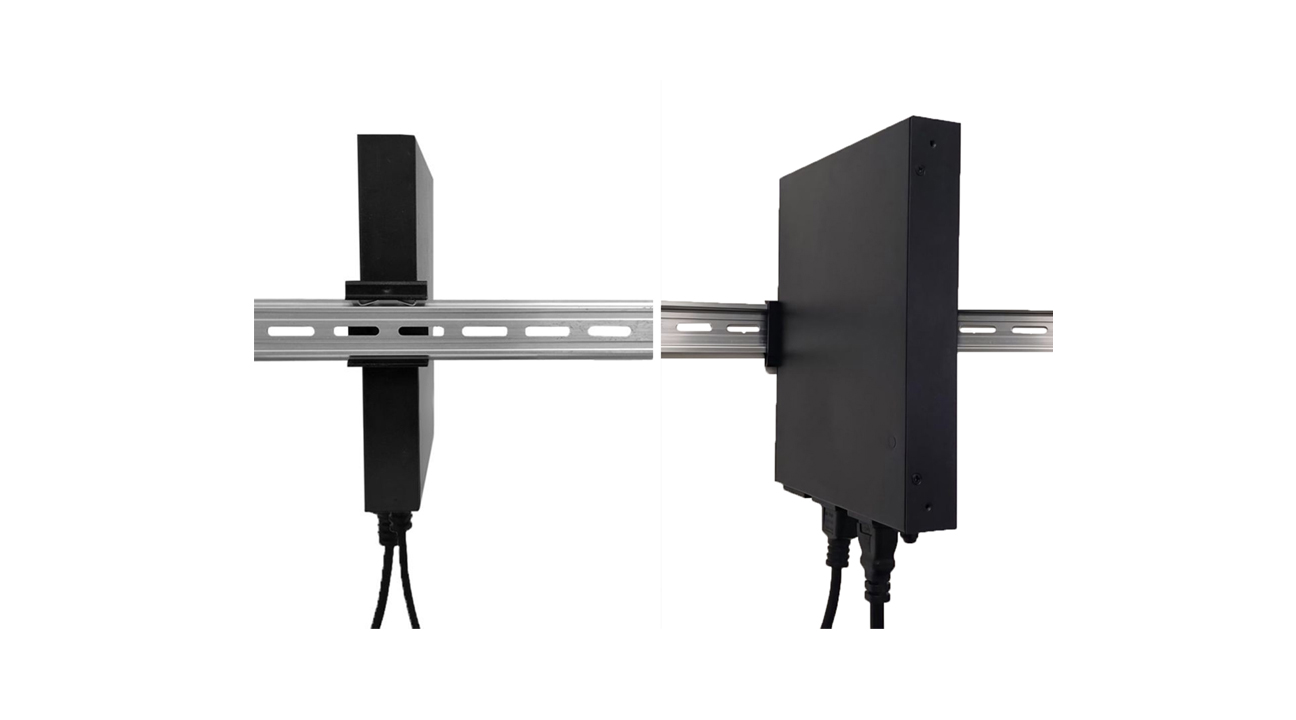

  • Versatile DIN Rail Mounting
    The optional J60-DIN Mounting Kit enables secure installation on standard 35 mm DIN rails, streamlining deployment in industrial control panels and enclosures.
  • High Efficiency Power Protection
    Delivers up to 98% energy efficiency—reducing heat output and operating costs—while providing backup runtime from 6 minutes at full load to over 2 hours at reduced loads.
  • Fanless, Silent Operation
    Passive cooling design ensures quiet performance and minimizes dust accumulation, reducing the need for ongoing maintenance.
  • Automatic Restart
    Automatically powers back on after utility power returns—ensuring continuous protection without manual intervention.

Remote UPS Monitoring and Remote Receptacle Reboot

The Xtreme Power J60-600 (120V and J60i-600 (230V) offer enhanced control and visibility with the optional Web/SNMP Card (SNMP-J60), delivering enterprise-grade management capabilities:

  • Detailed Power Metrics – Monitor voltage, load, battery health, and more in real time
  • Remote UPS Power Reboot – Remotely control output power to reboot connected equipment when needed
  • Environmental Monitoring – With the optional Environmental Monitoring Device (EMD-J60), track ambient temperature and humidity for proactive infrastructure protection

Ideal UPS for Factories, Industrial, Warehouses and Edge Computing:

  • Industrial Automation Systems
    Reliable backup power for maintaining critical processes and minimizing downtime.
  • Programmable Logic Controllers (PLCs)
    Keeps control systems running smoothly during power interruptions or transitions.
  • Industrial and Embedded Computers
    Protects sensitive computing equipment used in factory floors, SCADA systems, and data acquisition.
  • Enclosure & Panel-Mounted Installations
    Perfect for integration into control panels, cabinets, or other space-limited enclosures.

Available J60 Li-ion UPS Models

  • J60-350 (120V) or J60i-350 (230V): 350VA / 200W
  • J60-600 (120V) or J60i-600 (230V): 600VA / 360W

Warranty

5-year warranty covering electronics and battery (USA and Canada)

Certifications

UL-1778, CE, RoHS, and TAA compliant for guaranteed safety and environmental responsibility

Ready to Power Smarter?

Talk to a Lithium UPS Specialist Today
Our experts are here to help you size, design, and deploy the ideal UPS solution for your industrial application.

Email: [email protected]
Call: 1 (800) 582-4524

Maximize uptime. Minimize footprint. Choose the Xtreme Power J60 UPS
