Kiosks enable critical self-service functions across retail, healthcare, transportation, hospitality, and public spaces. When power is lost—even for a few seconds—transactions stop, screens go dark, and customers are left frustrated. A kiosk UPS with long-life Lithium Iron Phosphate (LiFePO₄) batteries provides up to 15 years of service life or 3,000–5,000 discharge cycles, delivering clean, reliable backup power that keeps your system online and protects your investment.
Why Kiosks Need a UPS
Kiosks are often installed in areas with unstable or shared power sources. A UPS provides:
- Zero Downtime – Keeps your kiosk operating through power disturbances.
- Equipment Protection – Safeguards displays, processors, payment terminals, sensors, and networking gear.
- Transaction Security – Prevents data loss during customer interactions.
- Extended System Life – Filters surges and electrical noise to reduce component wear.
- Remote Monitoring – Enables IT teams to manage multiple kiosks without on-site visits.
Common Applications
| Application Type | Power Protection Benefit |
| Retail & POS Kiosks | Prevents transaction loss during outages |
| Self-Service Terminals | Ensures consistent customer access and uptime |
| Outdoor Payment Stations | Stabilizes power exposed to temperature swings |
| Digital Signage | Keeps advertisements and messaging always live |
| Healthcare Check-In | Secures patient data and maintains accessibility |
Every kiosk benefits from a compact, high-reliability UPS solution engineered for continuous performance.
UPS Solutions Designed for Kiosks

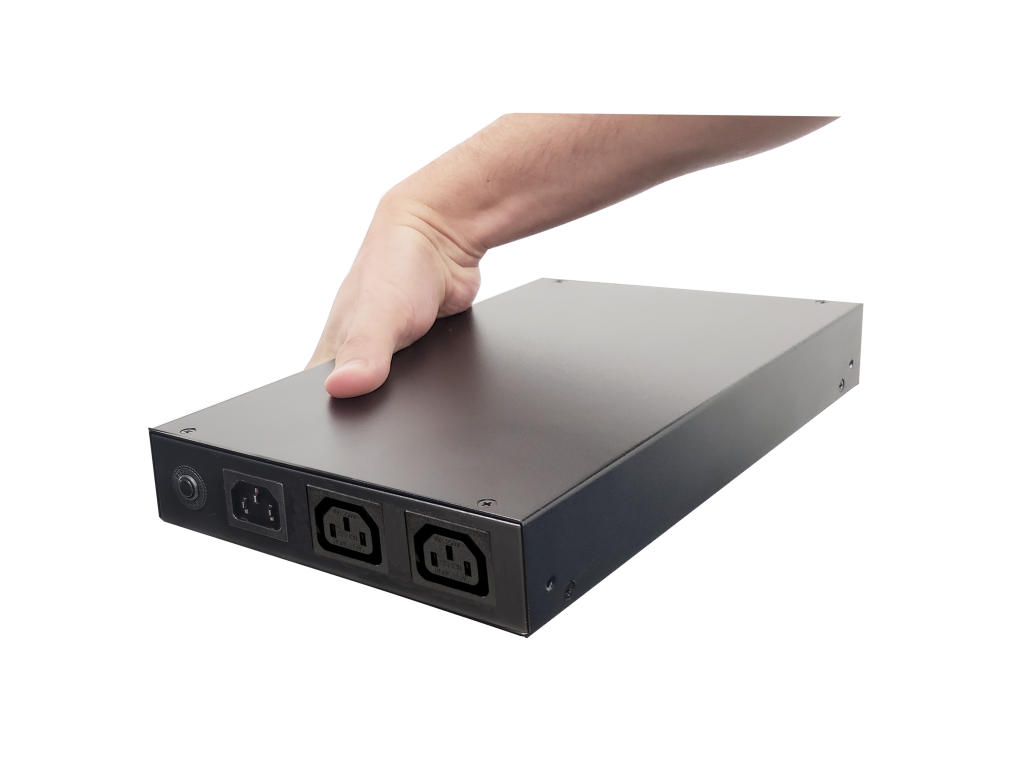

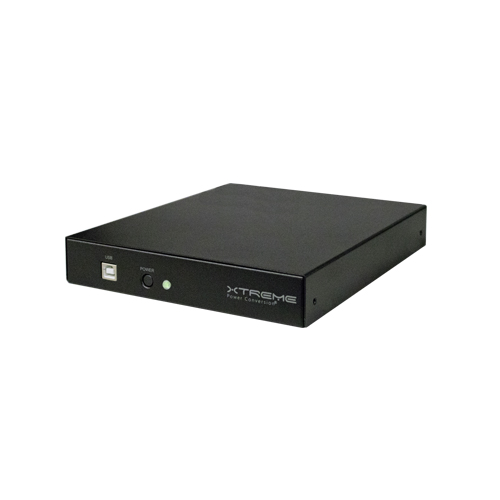

J60 Ultra-Compact Lithium UPS – World’s Smallest UPS
Long-Life Lithium Battery –Equipped with Lithium Iron Phosphate (LiFePO₄) cells offering up to 15 years of service life or 3,000–5,000 discharge cycles—significantly reducing maintenance and replacement costs.
High-Temperature Operation – Rated for operation up to 50°C (122°F) with capacity derating above 40°C (104°F).
Key Features:
- 350VA or 600VA ratings
- Fanless, silent operation—ideal for tight kiosk enclosures
- Wall, DIN-rail, or flat-mount ready
- Remote monitoring with optional SNMP/web card
- Proven field performance in national retail and QSR deployments
- 5-year standard warranty

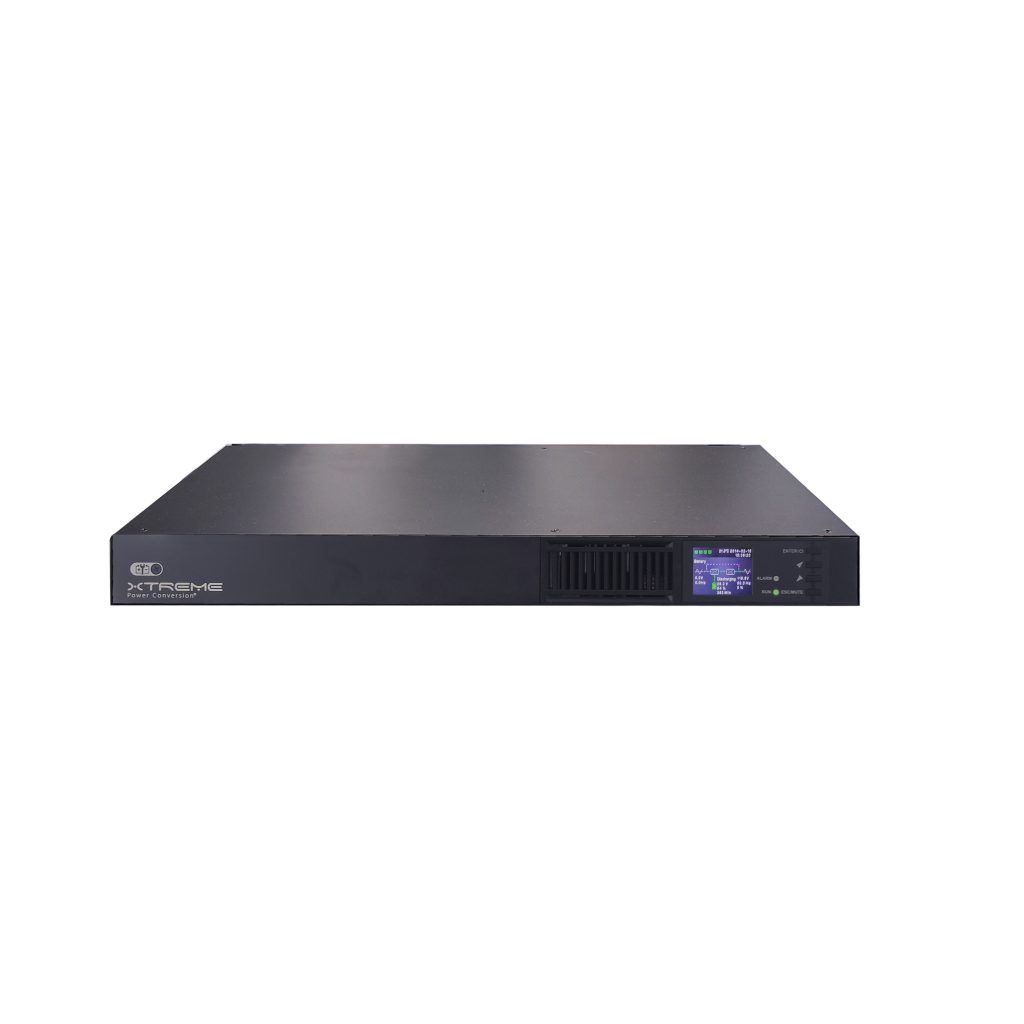

J90 Online Lithium UPS – High Power in a Compact Form
Long-Life Lithium Battery
Equipped with Lithium Iron Phosphate (LiFePO₄) cells offering up to 15 years of service life or 3,000–5,000 discharge cycles.
Premium Power Protection
- 1000VA or 1500VA ratings
- Slim 1U form factor
- Online double-conversion architecture eliminates spikes, surges, and electrical noise
- Switchable output receptacles for remote reboot of individual loads
- Rack or wall-mount flexibility for kiosk or digital signage enclosures
- 6-year standard warranty

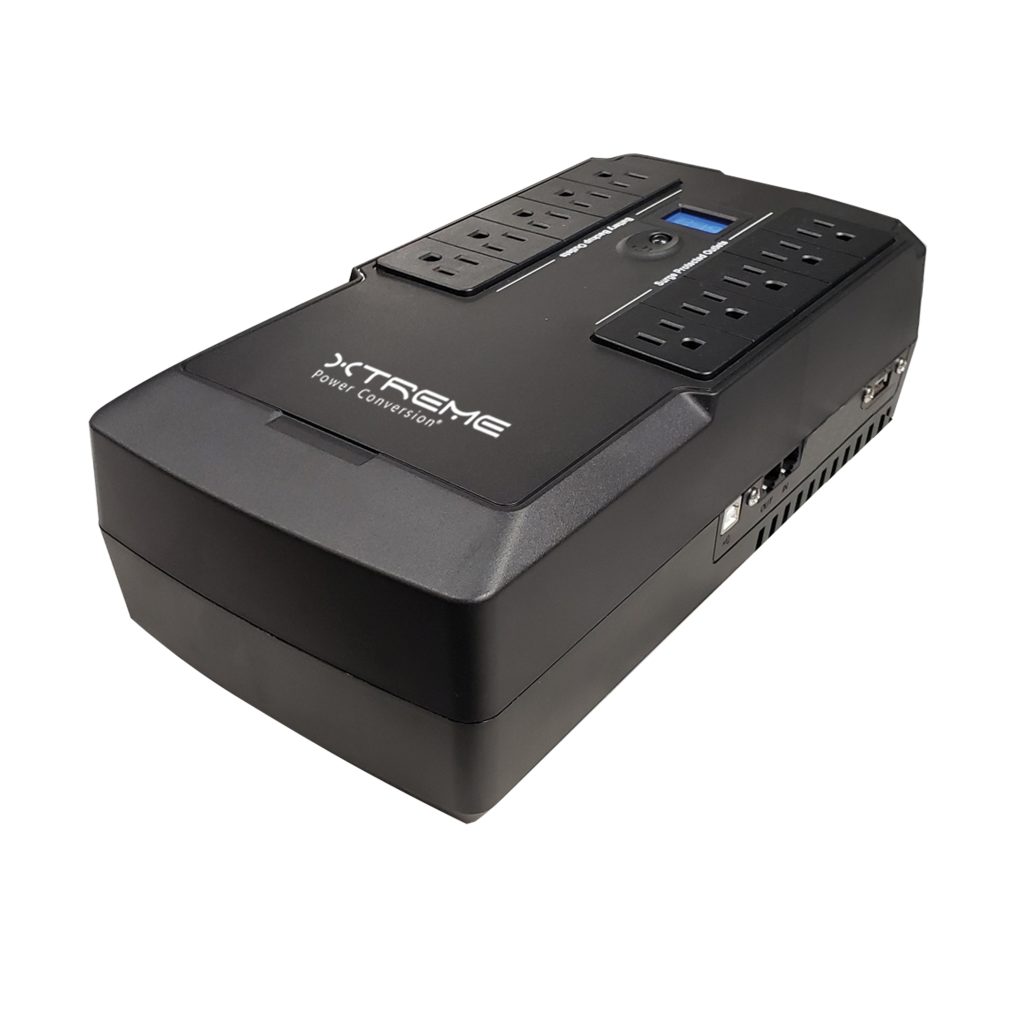

A60 UPS – Budget-Friendly Power Protection
- Cost-effective standby UPS for kiosks with basic backup needs
- Ideal for indoor, non-critical runtime applications
- Strong surge suppression to protect digital signage and POS systems
Compare UPS Models for Kiosk Deployment
| Feature | J60-350 | J60-600 | J90-1000 | A60-550 |
| Capacity (VA) | 350 | 600 | 1000 | 550 |
| Runtime @ 100W | 14 min | 28 min | 60 min | 14 min |
| Outlets | 3 UPS | 3 UPS | 4 UPS (Switchable) | 5 UPS + 5 surge |
| Battery Technology | LiFePO₄ – Up to 15 years | Same | LiFePO₄ – Up to 15 years | Lead-Acid – 3–5 years |
| Warranty | 5 years* | 5 years* | 6 years* | 3 years |
| Operating Temp | Up to 50°C | Up to 50°C | Up to 50°C | Up to 40°C |
* Warranty is reduced to 2-years when installed in environments where temperature exceeds 40°C (104°F) and is less than 50°C (122°F).
Power Conditioning for Maximum Reliability
While a UPS protects against outages, kiosks in noisy environments also need clean, isolated power.
JX Series Isolation Transformer Power Conditioner
- Complete line isolation via toroidal isolation transformer
- Filters common-mode and normal-mode noise
- Neutral-to-ground bonding
- Slim profile for kiosk enclosures
- 5-year warranty
Use together with J60, J90, or A60 for the ultimate power protection package.
Trusted by Leading Self-Service and Transaction Systems
Xtreme Power is the OEM choice for:
- Bank ATMs
- Retail self-checkout kiosks
- Parking payment terminals
- Transit ticketing machines
- Quick-service restaurant ordering stations
- Digital signage networks
Ready to Blackout-Proof Your Kiosks?
Contact our team to choose the best UPS configuration for your deployment.
sales@xpcc.com
1 (800) 582-4524
