700VA-2000VA
120V
Value series line interactive power protection for harsh temperature environments.

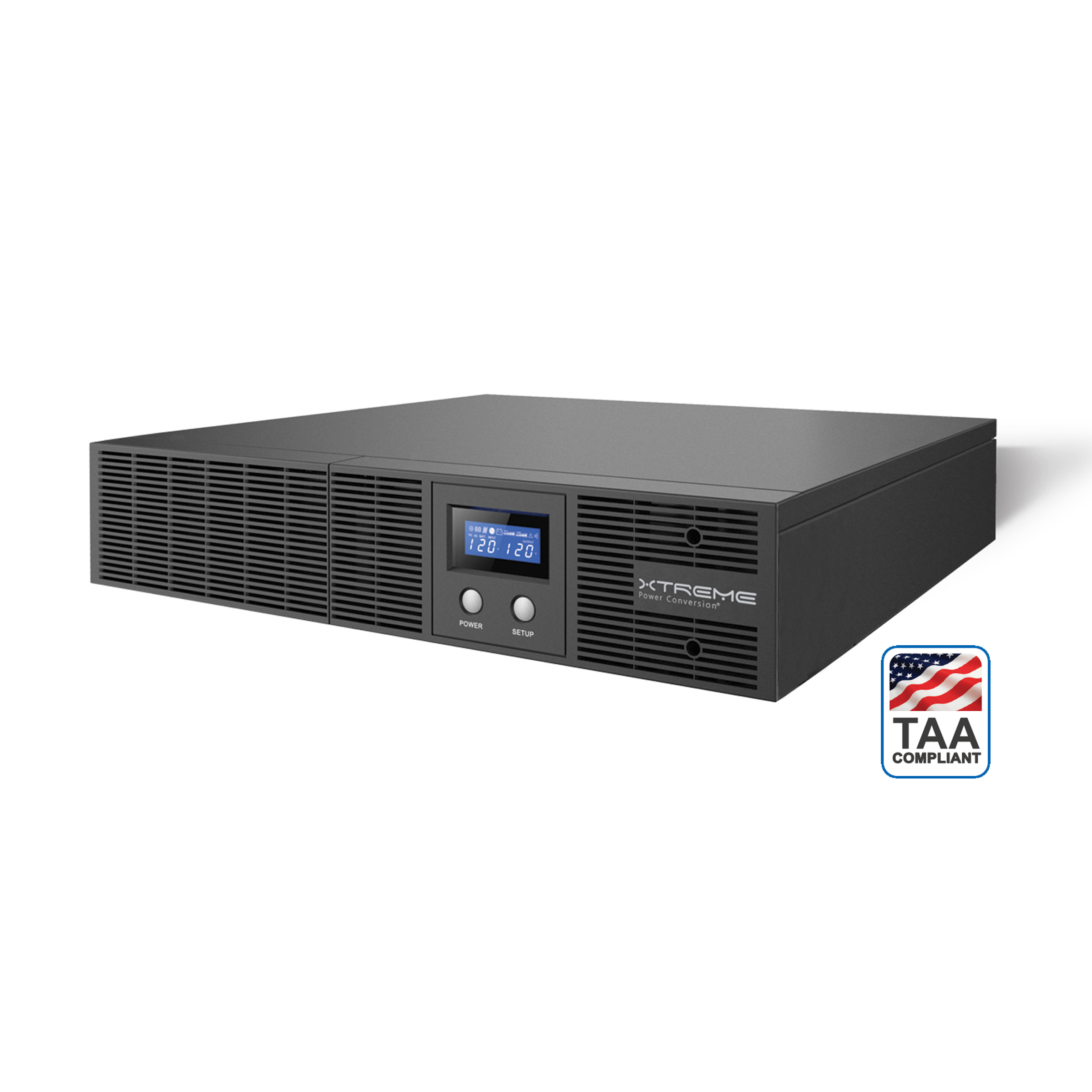

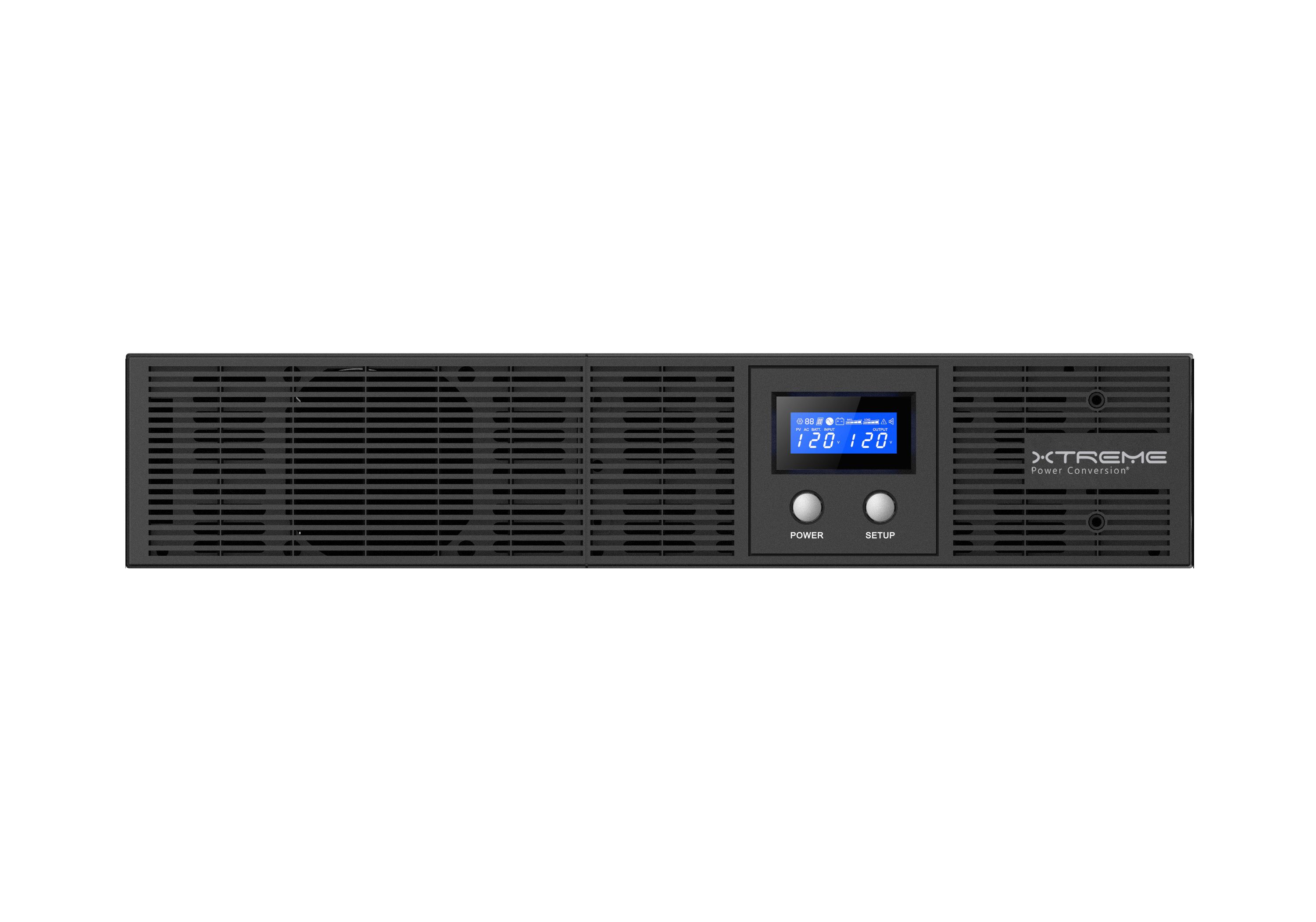

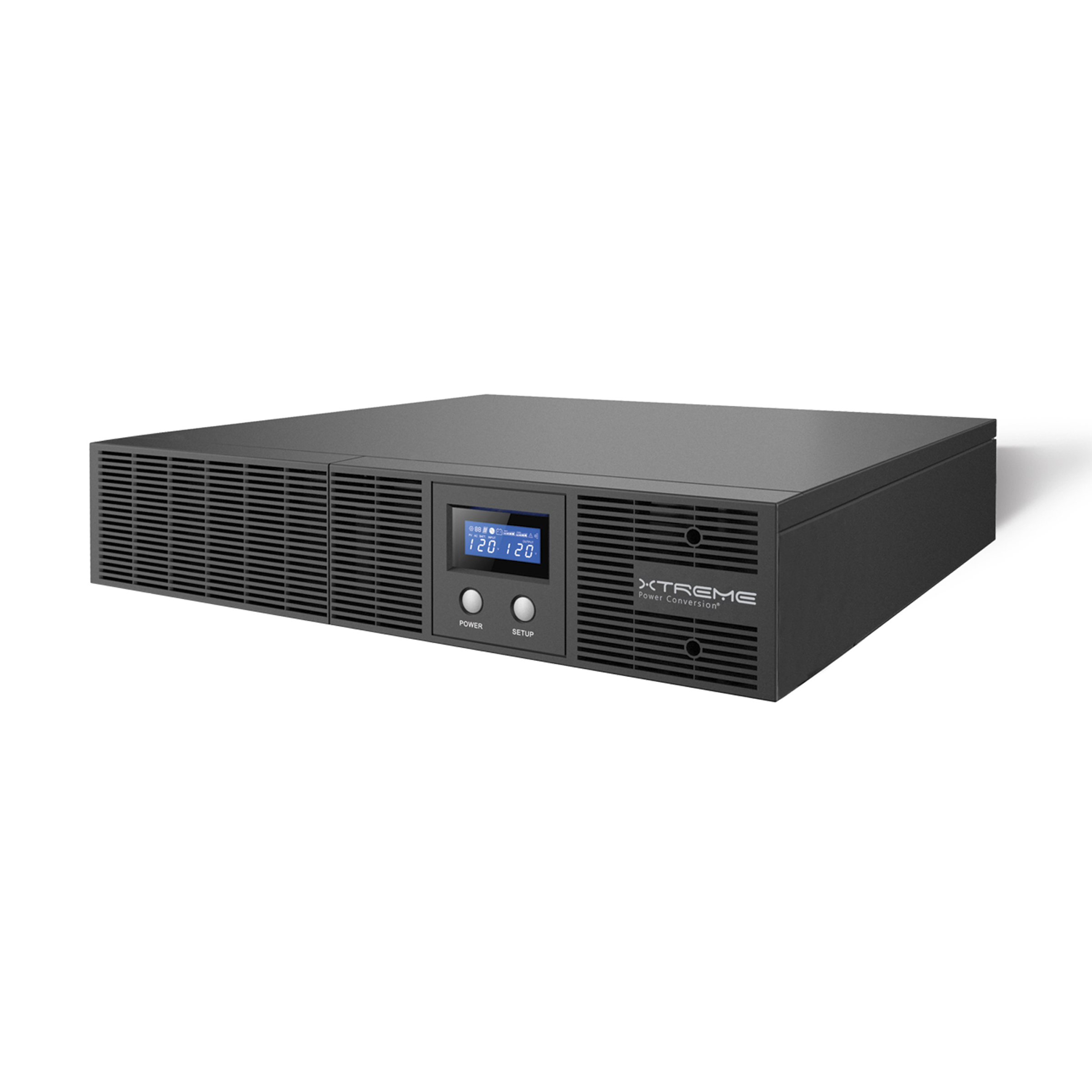

V80 HT is a pure sine wave line interactive UPS that protects critical data and equipment form power problems while supplying clean and reliable network grade power.
V80 HT units have the highest efficiency ratings available, providing utility cost savings at all load levels. V80 HT design provides flexible mounting including tower, wall and rack mounting. V80 HT models combine high performance with value pricing.
Product Snapshot
- Available Models: 700VA, 1000VA, 1500VA, 2000VA
- Pure sine wave output
- Automatic voltage regulation (AVR)
- Tower, rack and wall mounting available
- UL and cUL listed, RoHS and TAA compliant
- 3 years electronics, 3 years battery warranty (USA and Canada)
| MODEL NUMBER | V80-700HT | V80-1000HT | V80-1500HT | V80-2000HT | |
|---|---|---|---|---|---|
| INPUT | Capacity | 700VA (420W) | 1000VA (600W) | 1500VA (900W) | 2000VA (1200W) |
| Voltage range | 82–148VAC | ||||
| Frequency | 50/60Hz auto-sensing | ||||
| OUTPUT | Voltage | 120VAC | |||
| Waveform | Pure sine wave | ||||
| Transfer time (typical) | 2-6 ms | ||||
| Efficiency | Up to 96% ECO mode, 93% buck and boost mode | ||||
| Harmonic distortion | 2% @ 100% linear load; 5% @ 100% non-linear load | ||||
| BATTERY | Battery quantity and size | (1) 12V 8.5AH | (2) 12V 8.5AH | (2) 12V 8.5AH | (2) 12V 8.5AH |
| Battery type | Sealed, maintenance-free lead acid | ||||
| Charge current | 1A max | ||||
| Recharge | Typically < 4 hours to 90% capacity | ||||
| PHYSICAL | Dimensions (W x D x H) | 17.2 x 16.1 x 3.5 | |||
| Weight | 25.5 lbs | 31.3 lbs | 32.3 lbs | 34.3 lbs | |
| Line cord | 8 ft, C13 to 5–15P | 8ft, 5-20P to C19 | |||

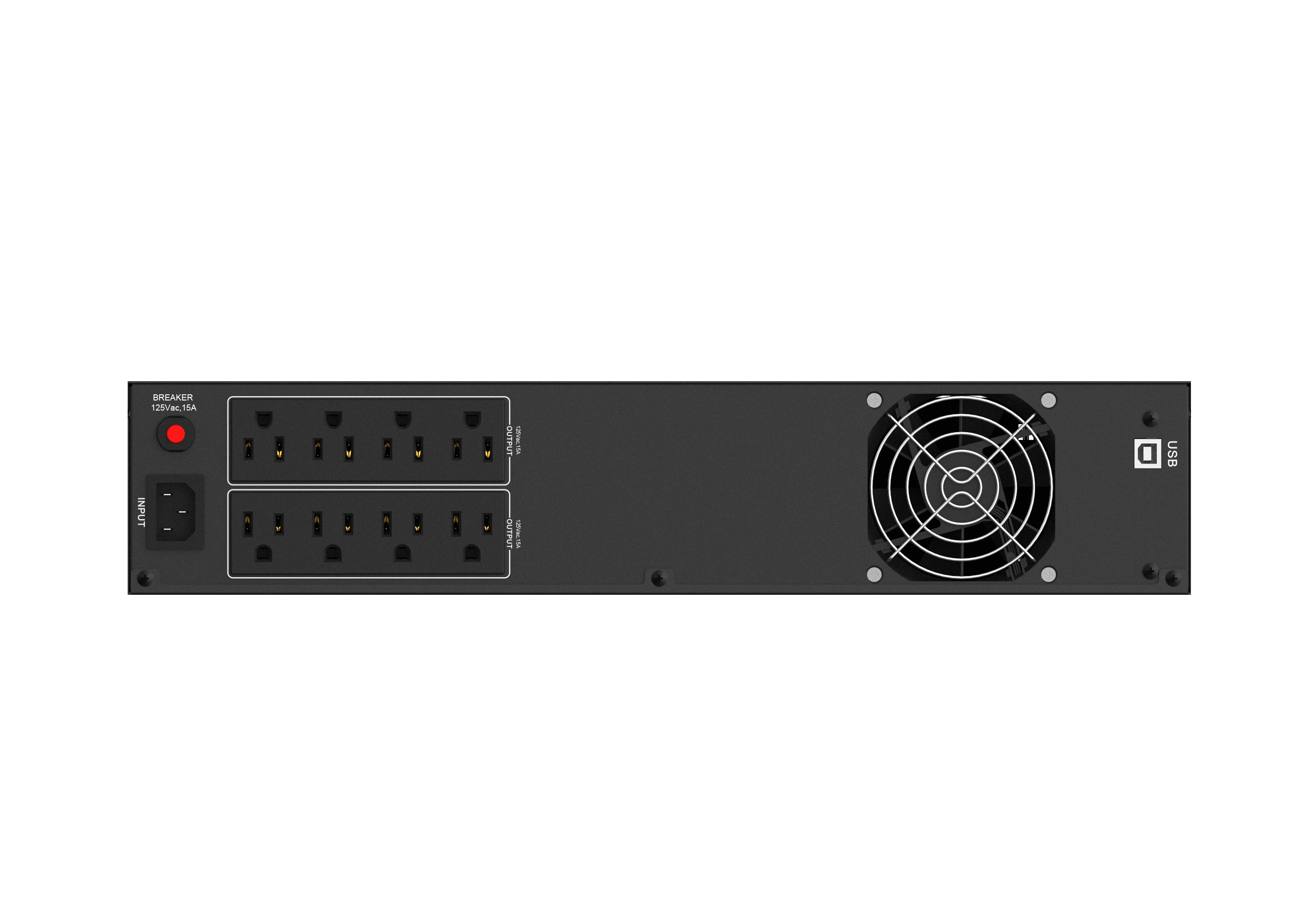

| Receptacles | (8) NEMA 5–15R | ||||
| ENVIRONMENT | Operating temperature | 32-122°F (0-50°C) | |||
| Audible noise | < 40dBA | < 45dBA | |||
| Altitude | 11,500 ft above sea level | ||||
| APPROVALS | UL, cUL, RoHS, TAA compliant | ||||
| WARRANTY | 3 years electronics, 3 years battery warranty (USA and Canada) | ||||
| COMMUNICATIONS INTERFACE | USB | ||||
| INCLUDED IN BOX | 5-15P line cord, tower pedestals, user manual, USB cable, Xtreme Power Monitor software | ||||
| AVAILABLE OPTIONS | 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket | ||||
-

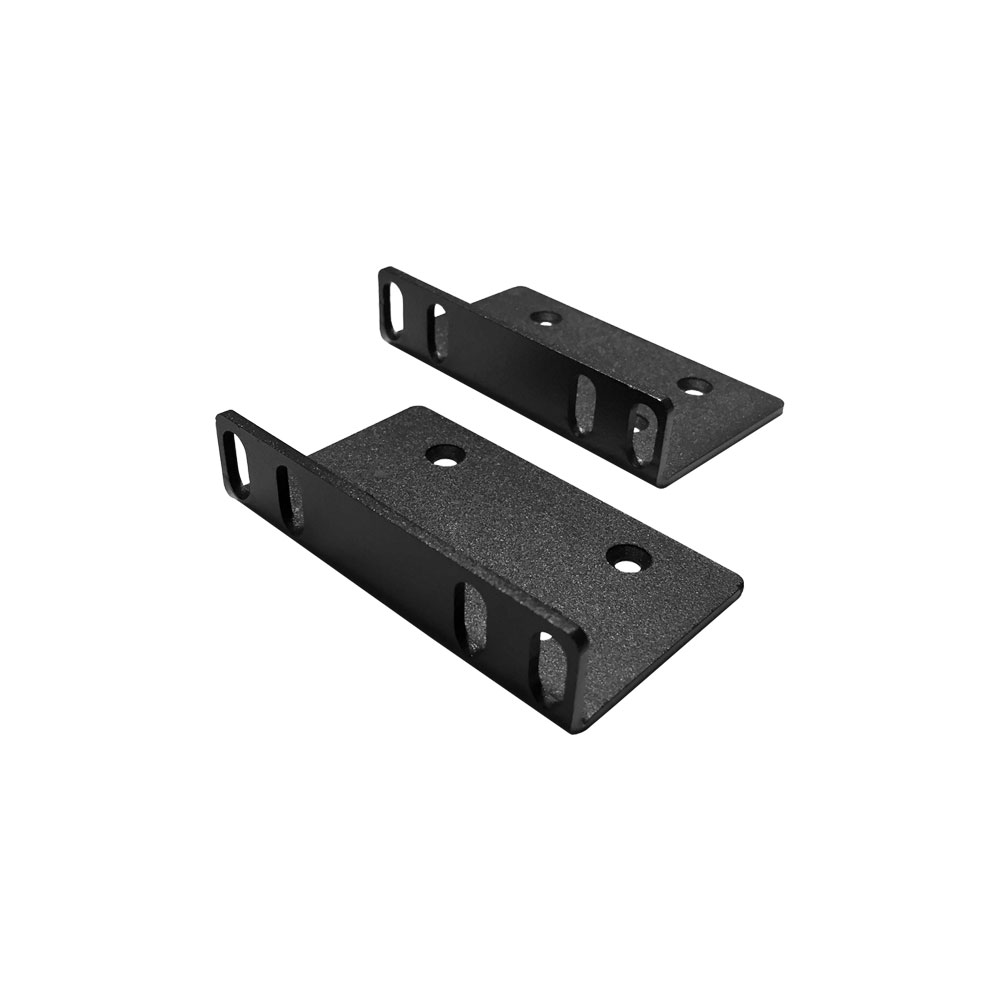

Mounting Kits
Model Description Unit Weight Unit Dimensions

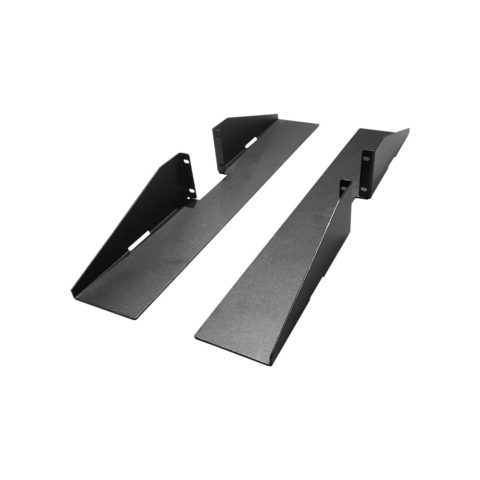

XPC-2PRAIL 2-Post Rail Kit; Rated for 125 lbs 5 lbs 4.0” x 20.0” x 3.0”
XPC-2POSTL 2-Post Shelf Kit; Rated for 150 lbs 9 lbs 21.5″ x 23.3″ x 3.5″
