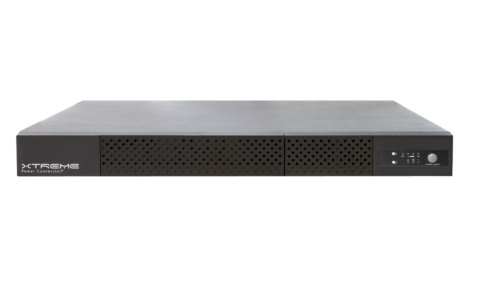

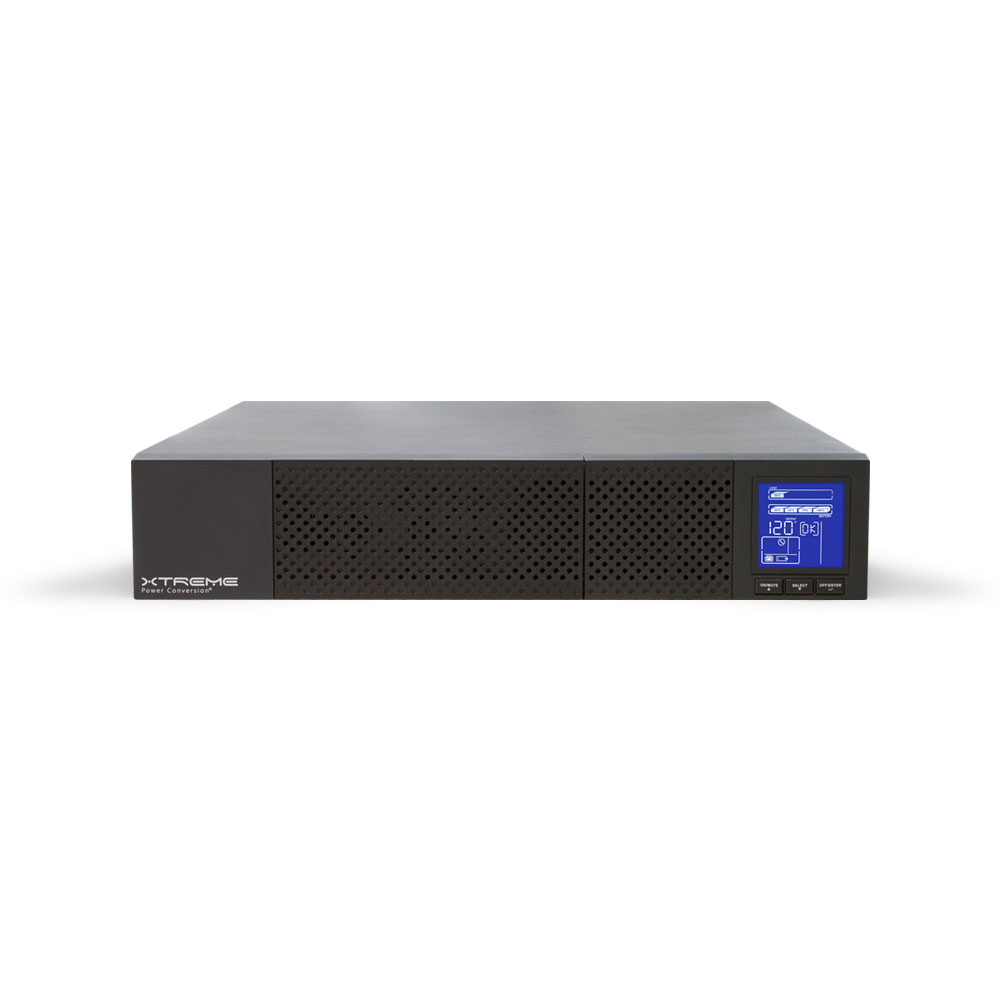

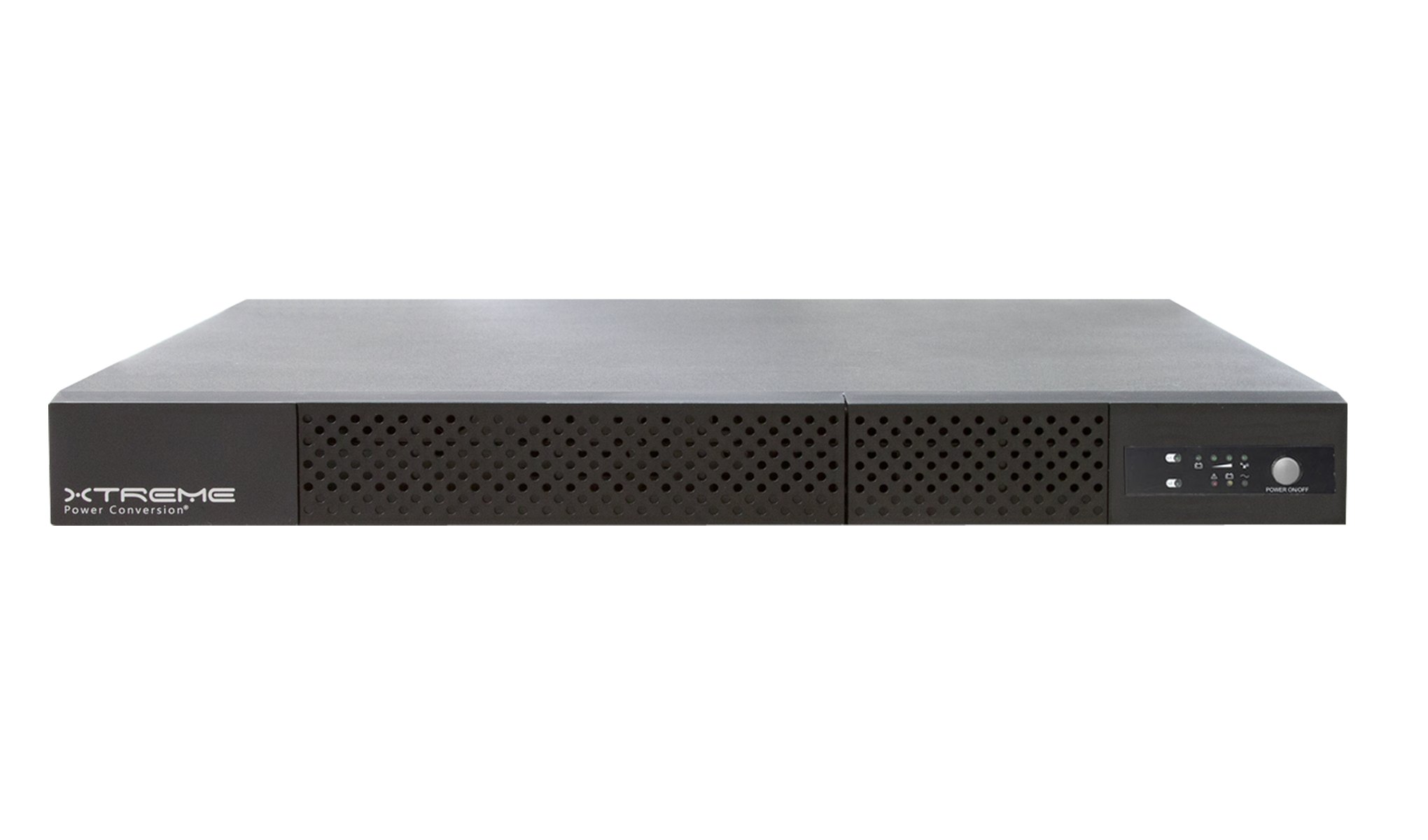

P90 Online UPS
1000VA-3000VA
120VAC
Slim form factor UPS delivers clean and continuous power to IT equipment during power disturbances.
The P90 is a true online UPS that delivers continuous, high quality AC power to servers and network equipment with no break when transferring to battery.
The P90 provides tower, rack, and wall mount options. It protects your equipment from blackouts, brownouts, sags, surges, and noise interference. The P90 offers the lowest total cost of ownership by cutting energy costs and lowering heat output.
Product Snapshot
- Available models: 1000VA, 1500VA, 2000VA, 3000VA
- 98% efficiency in ECO mode
- Tower, wall, 2-post and 4-post rack mounting configurations available
- Extended battery runtimes with optional matching battery modules
- UL, cUL, CE, RoHS
- 3 years electronics, 3 years battery warranty (USA and Canada)
| MODEL NUMBER | P90c-1000 | P90-1000 | P90-1500 | P90-2000 | P90-3000 | ||
|---|---|---|---|---|---|---|---|
| CAPACITY | Power rating | 1000VA (800W) | 1000VA (900W) | 1500VA (1350W) | 2000VA (1800W) | 3000VA (2700W) | |
| INPUT | Voltage range | 50–150VAC* | |||||
| Frequency | 50/60Hz auto sensing | ||||||
| Surge protection | >800J | ||||||
| OUTPUT | Voltage | 120VAC | 120VAC nominal (100/110/115 selectable) | ||||
| Waveform | Pure sine wave, zero transfer time | ||||||
| Frequency | 50/60Hz ± 0.5Hz | ||||||
| Efficiency | 98% ECO mode, 90% online mode | ||||||
| Crest factor | 5:1 | ||||||
| Overload capacity | ≤ 130% for 2 min; ≤ 200% for 10 sec; >200% for 1 sec | ||||||
| BATTERY | Battery type | Sealed, maintenance-free lead acid | |||||
| Battery quantity and size | (4) 6V 290W | (2) 12V 9AH | (3) 12V 9AH | (4) 12V 9AH | (6) 12V 9AH | ||
| Typical recharge | < 6 hours to 90% | < 4 hours to 90% with 1A charger current | |||||
| PHYSICAL | Dimensions (W x D x H) | 17.2 x 17.8 x 1.7 in | 17.2 x 15.9 x 3.5 in | 17.2 x 18.9 x 3.5 in | 17.2 x 26.8 x 3.5 in | ||
| Weight | 28 lbs | 29.1 lbs | 41.7 lbs | 47.4 lbs | 65.7 lbs | ||
| Line cord | 5 ft, 5–15P | 6 ft, 5–15P | 6 ft, 5–15P | 6 ft, 5–20P | 6 ft, L5–30P | ||

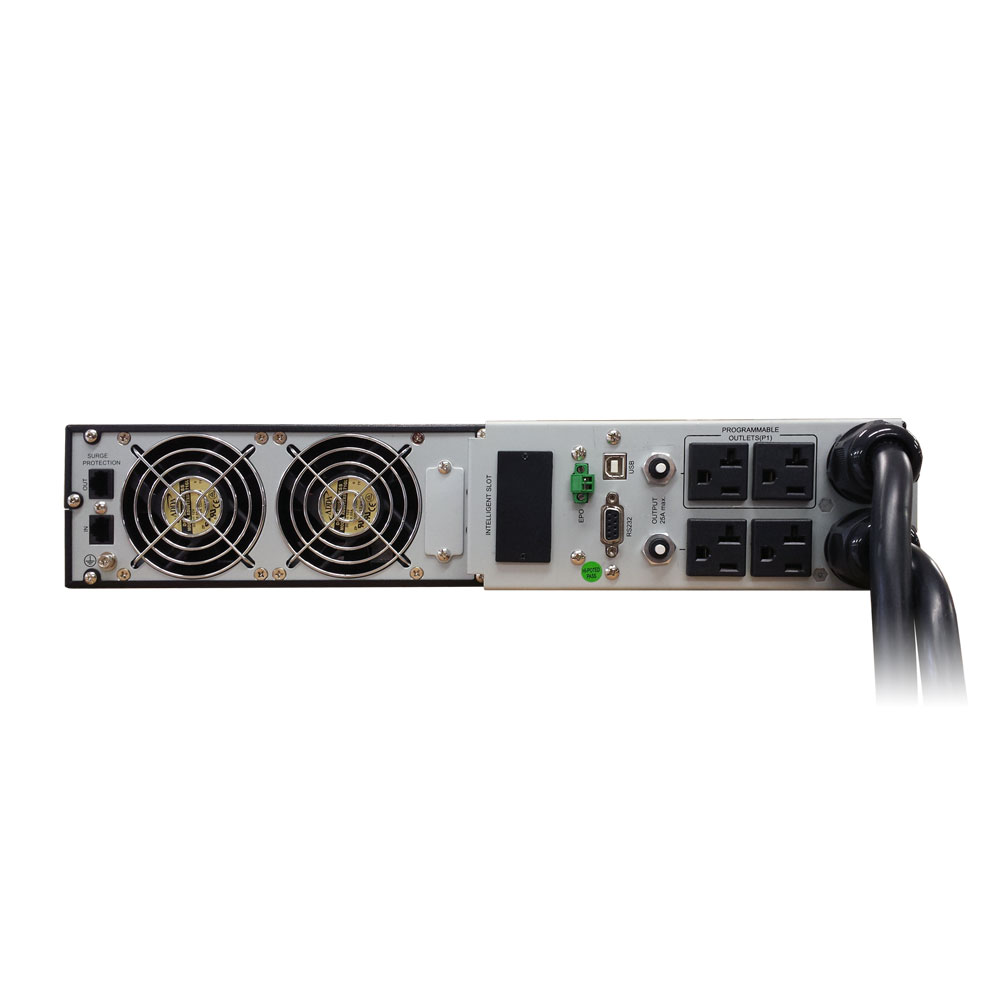

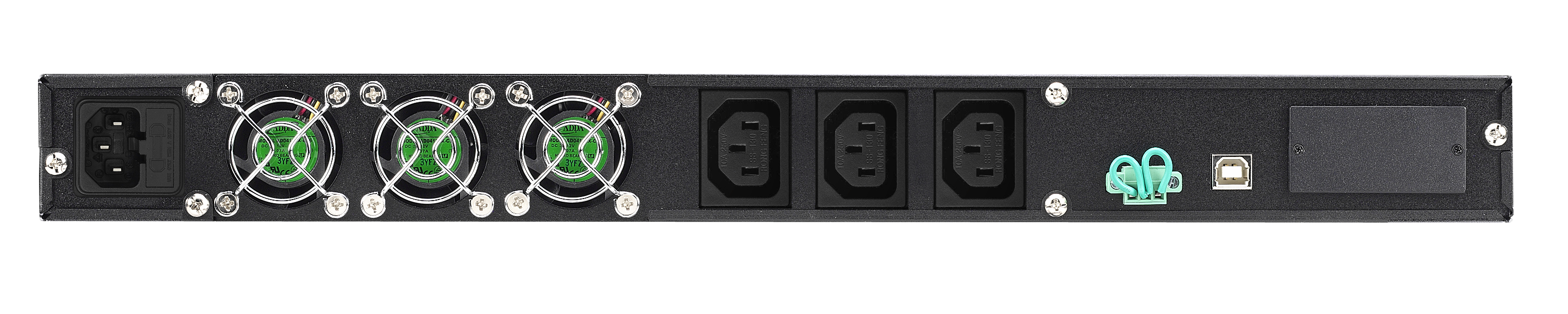

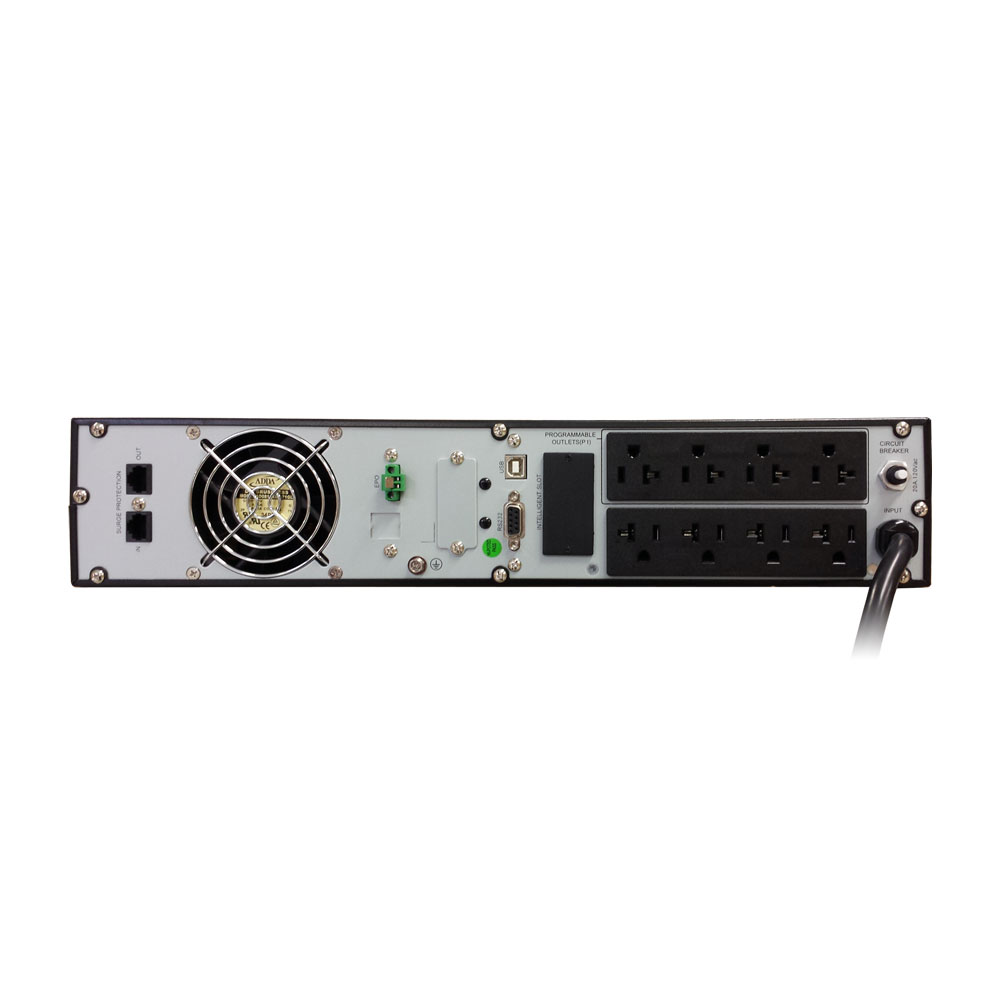

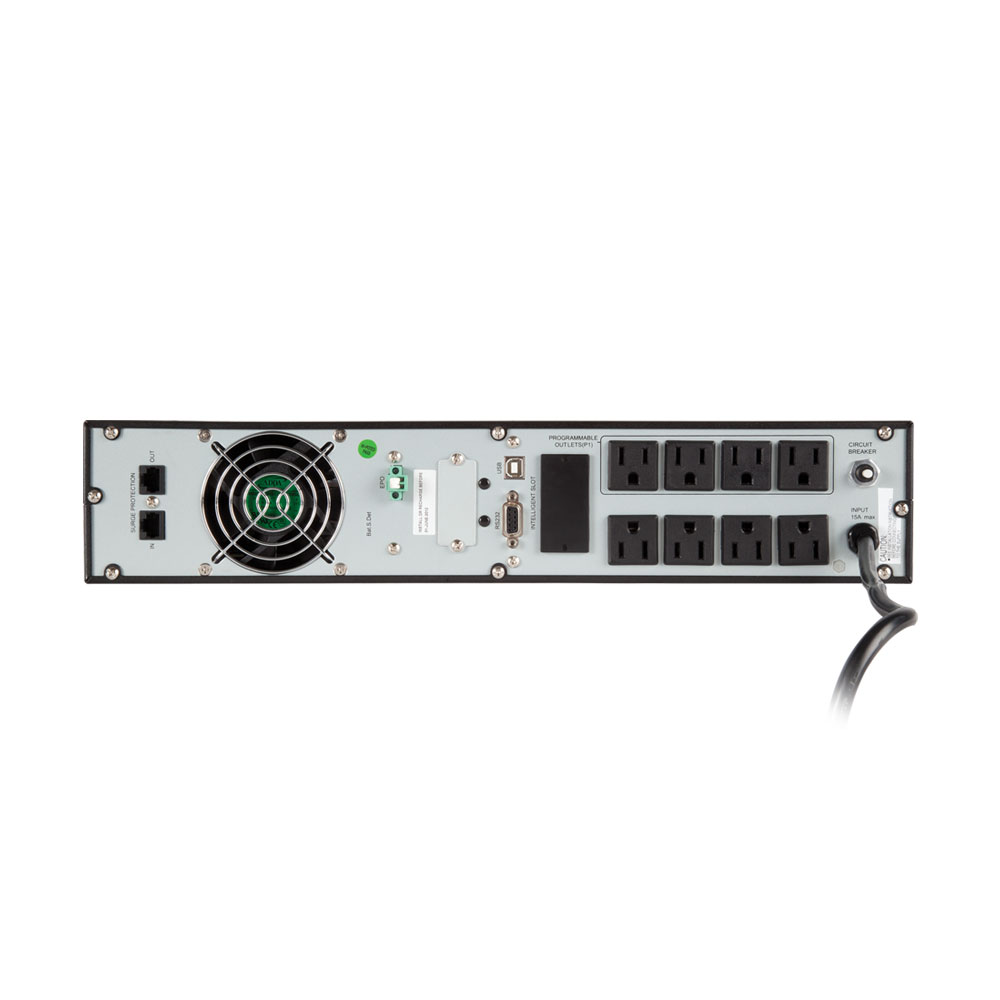

| Receptacles | (3) NEMA 5–15R | (8) NEMA 5–15R | (8) NEMA 5–15/20R | L5–30R+(4)5–15/20R | |||
| OPTIONAL BATTERY PACKS | Model number | N/A | P90-BP36 / 36E | P90-BP48 | P90-BP72 | ||
| Dimensions (W x D x H) | N/A | 17.2 x 19.9 x 3.5 in** | 17.2 x 19.9 x 3.5 in | 17.2 x 24.6 x 3.5 in | |||
| Weight | N/A | 58.1 lbs / 104.4 lbs (E) | 74.6 lbs | 104.4 lbs | |||
| Battery | N/A | (6) 12V 9AH/36V** | (8) 12V 9AH / 48V | (12) 12V 9AH / 72V | |||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | |||||
| Audible noise | < 45dBA | ||||||
| Altitude | 11,500 ft above sea level | ||||||
| APPROVALS | UL, cUL, RoHS,CE, RoHS | ||||||
| WARRANTY | 3 years electronics, 3 years battery warranty (USA and Canada) | ||||||
| COMMUNICATIONS INTERFACE | RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) | ||||||
| INCLUDED IN BOX | Software CD, horizontal brackets, tower pedestals, user manual | ||||||
| AVAILABLE OPTIONS | 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket | ||||||
*Depending on load level
**P90 capacity derates 20% at 100V output voltage
-

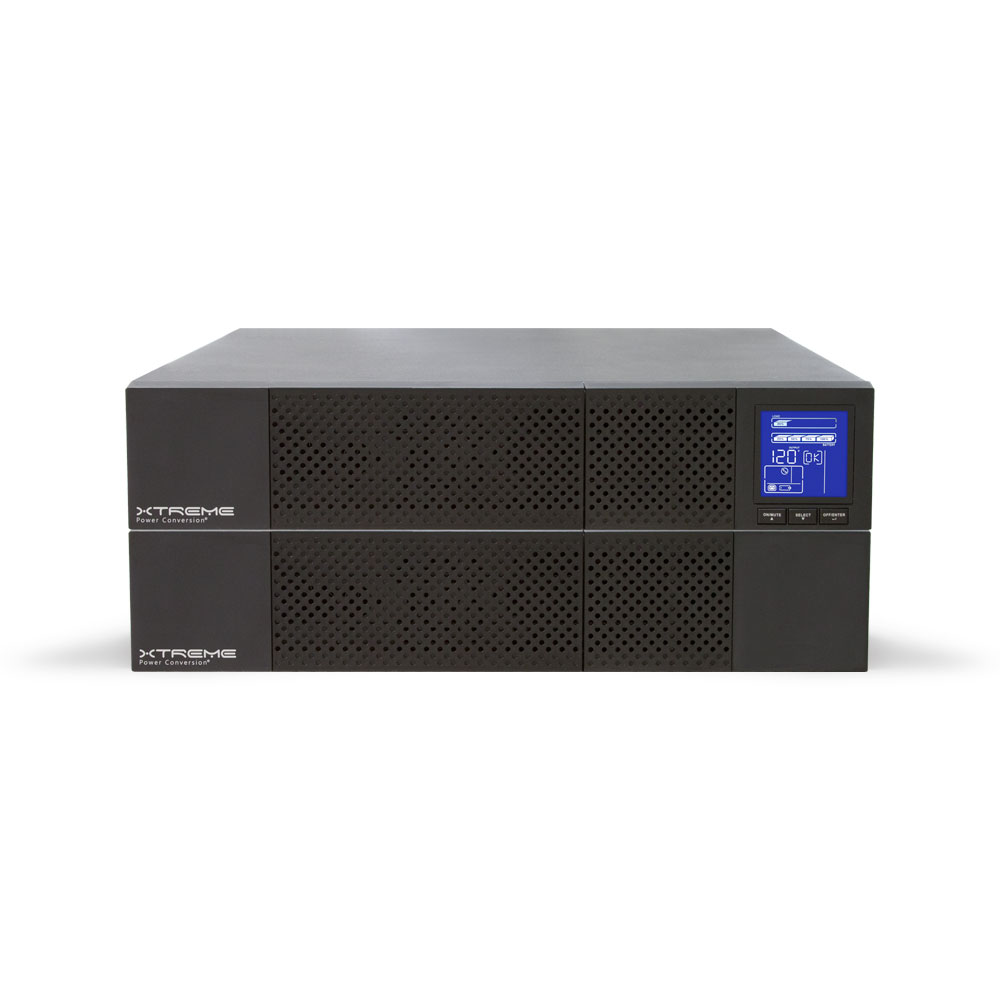

UPS Battery Packs
Model Description Unit Weight Unit Dimensions

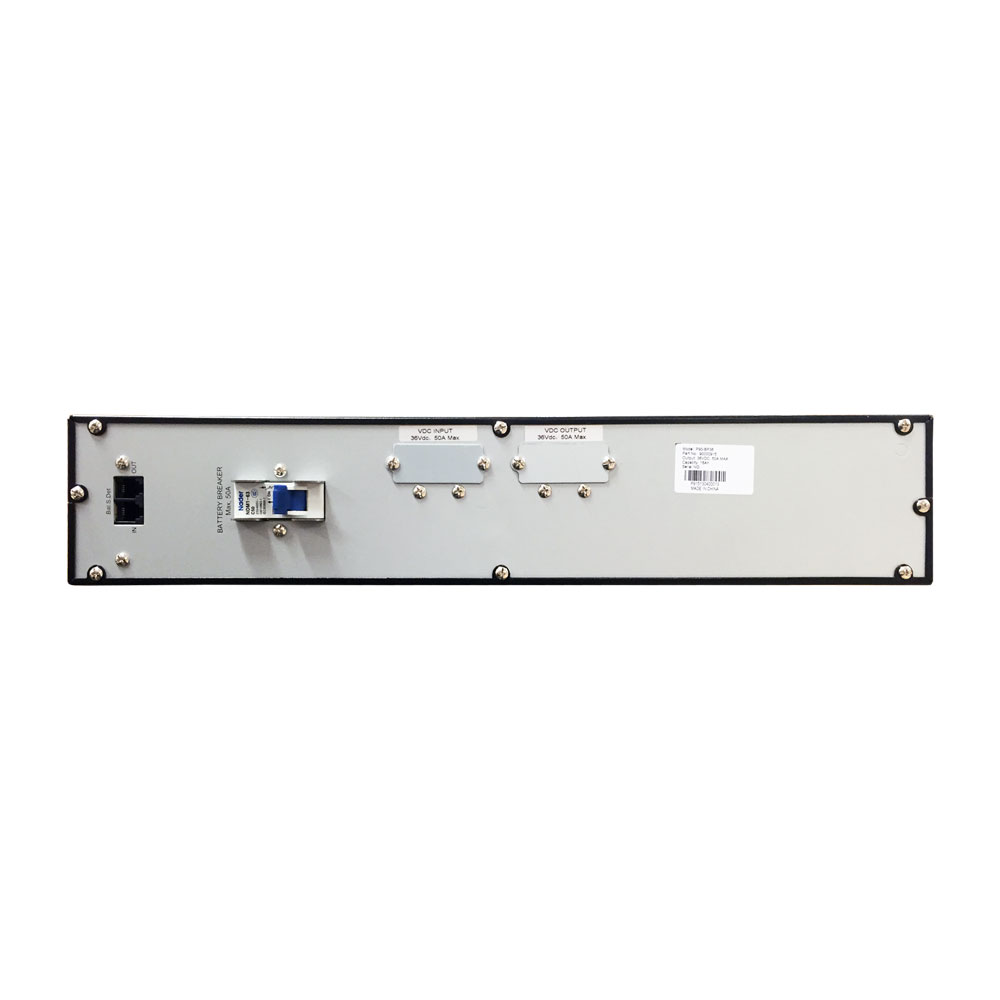

P90-BP36 36V Battery Pack for P90-1500, 2U 58.1 lbs 17.2” x 19.9” x 3.5” P90-BP36E 36V 4 String Extended Battery Pack for P90-1500, 2U 104.4 lbs 17.2” x 24.8” x 3.5” P90-BP48 48V Battery Pack for P90-2000, 2U 74.6 lbs 17.2” x 19.9” x 3.5” P90-BP72 72V Battery Pack for P90-3000, P90g-3000, 2U 104.4 lbs 17.2” x 24.6” x 3.5” -
Mounting Kits
Model Description Unit Weight Unit Dimensions
P90-RAIL 4-Post Rail Kit 5 lbs 3.8″ x 19.8″ x 2.8″
XPC-2PRAIL 2-Post Rail Kit; Rated for 125 lbs 5 lbs 4.0” x 20.0” x 3.0”
XPC-2POSTL 2-Post Shelf Kit; Rated for 150 lbs 9 lbs 21.5″ x 23.3″ x 3.5″

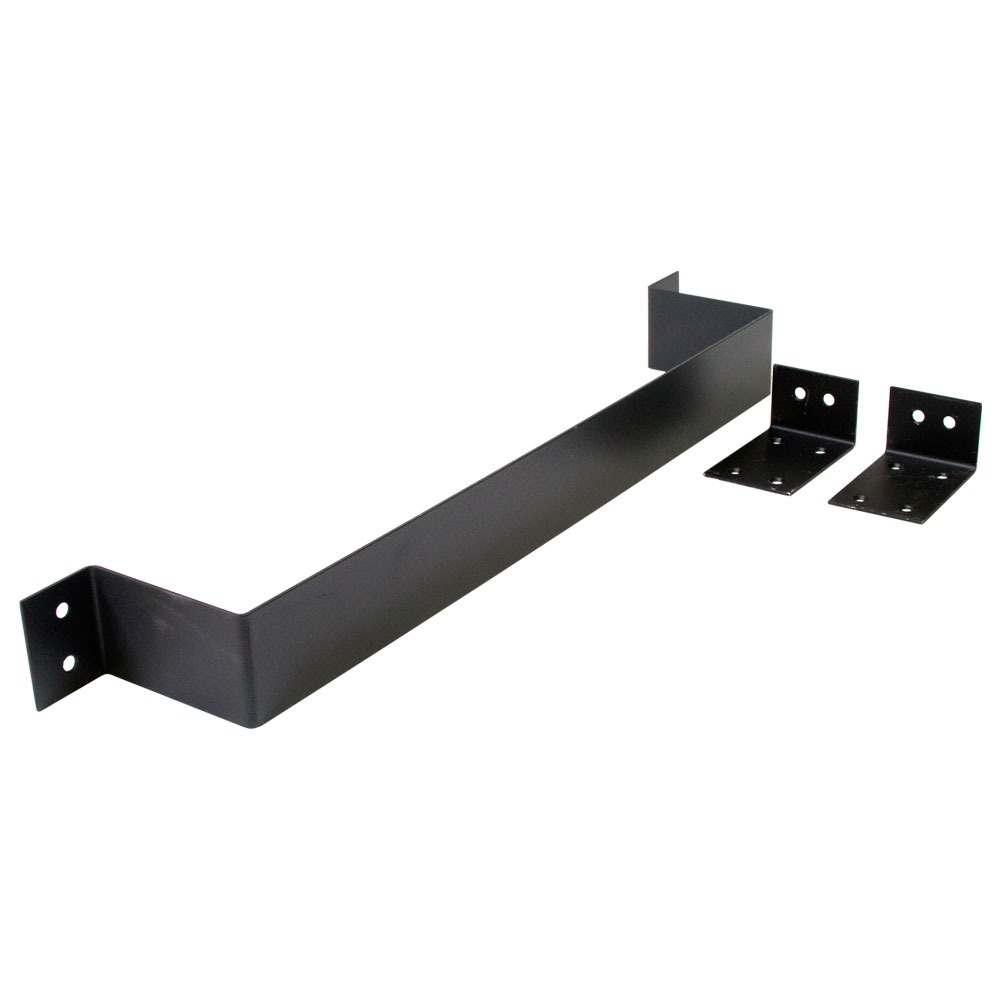

P90-WMB Wall Mount Bracket 5 lbs 4.0″ x 24.0″ x 4.0″
P90-FRMB Front Rackmount Bracket for P90-1000, P90-1500, P90-2000 1 lb 0.9″ x 2.0″ x 3.4″ -
Connectivity
Model Description Unit Weight Unit Dimensions
SNMP-2PMINI Two Port Internal SNMP Card 1 lb 7.25″ x 6″ x 2.5″
SNMP-EMD Environmental Monitoring Device 1 lb 7.25″ x 6″ x 2.5″
MODBUS-IN Modbus Card 1 lb 7.25″ x 6″ x 2.5″
RELAY-MINI General Relay Contacts with DB9 & Terminal Block Adapter 1 lb 7.25″ x 6″ x 2.5″ -
Bypass Distribution Modules
Model Description Utility Input Output Connections UPS Connections Unit Weight Unit Dimensions
XBDM-1015LV Bypass 15A/120VAC for use with P90-1000, P90-1500 5–15P, 12ft (6) 5–15R front, (4) 5–15R back 5-15R 3.4 lbs 19” x 3.5” x 1.75”
XBDM-1020LV Bypass 20A/120VAC for use with P90-2000 5–20P, 12ft (6) 5–20R front, (4) 5–20R back 5-20R 3.4 lbs 19” x 3.5” x 1.75”
XBDM-1030LV Bypass 30A/120VAC for use with P90-3000 L5–30P, 6ft (6) 5–20R front, (4) 5–20R back L5-30R 3.4 lbs 19” x 3.5” x 1.75” -
Power Distribution Units
Model Description Input Power Cord Outlets Unit Weight Unit Dimensions

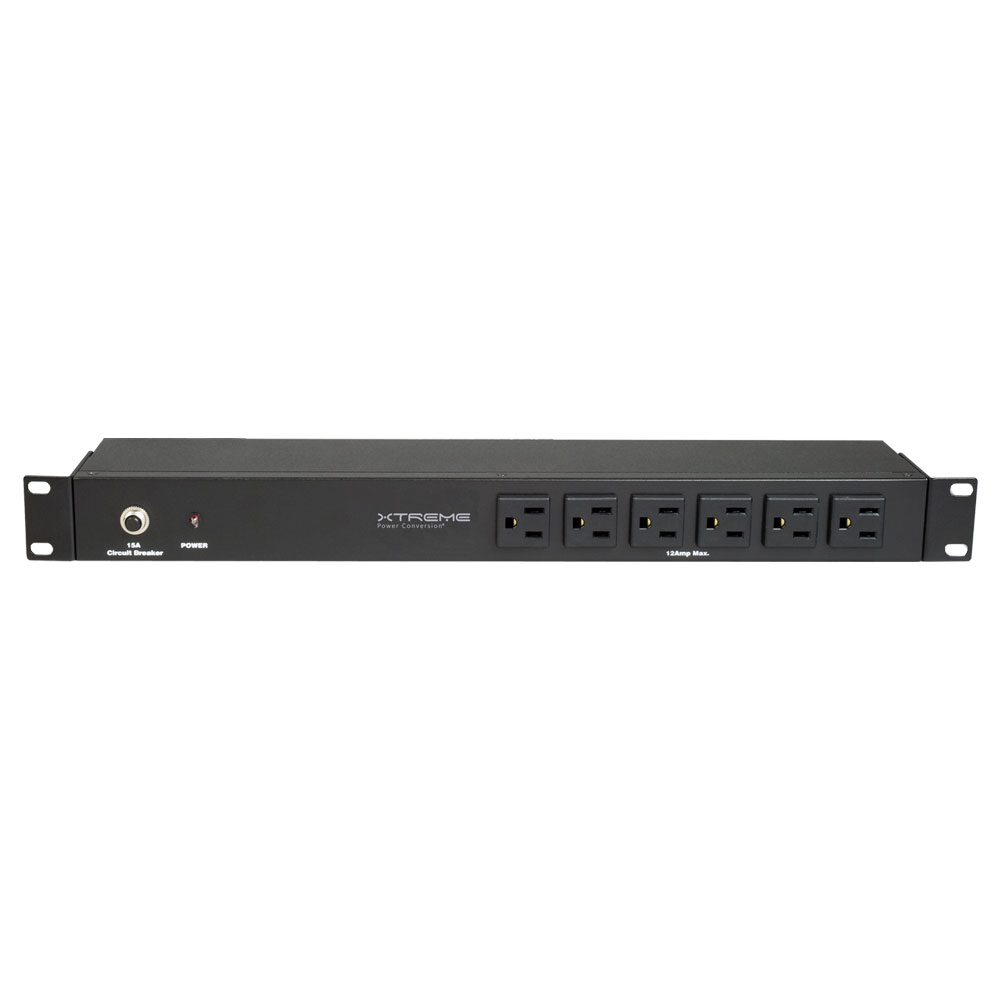

XPD-1415HV 120V Basic Power Distribution Unit 5–15P, 12ft (14) 5–15R 3.5 lbs 19.0″ x 3.5″ x 1.75″

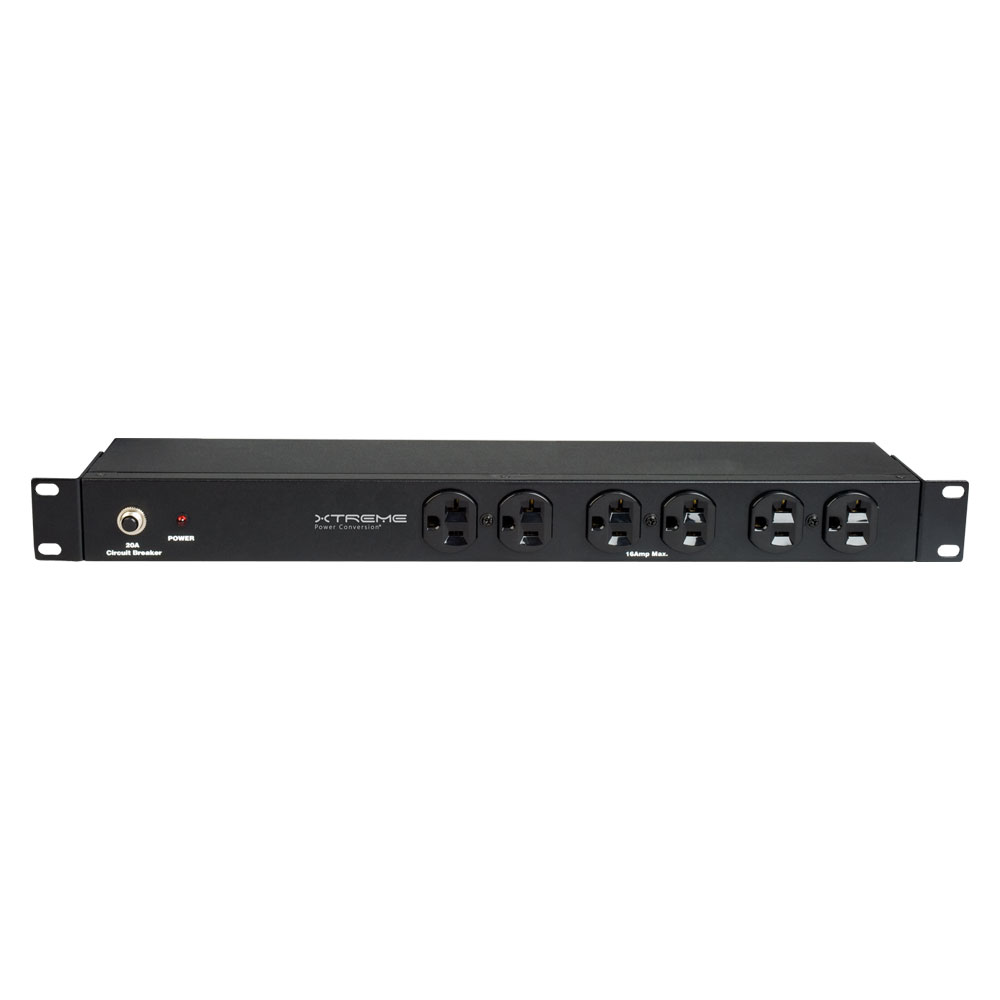

XPD-1420HV 120V Basic Power Distribution Unit L5–20P, 12ft or 5–20P with adapter (14) 5–25R 4.8 lbs 19.0″ x 3.5″ x 1.75″
