Modern data centers require uninterruptible power systems that deliver scalability, redundancy, efficiency, and predictable runtime performance. Whether supporting edge computing environments, enterprise server rooms, or full data halls, UPS architecture is foundational to uptime.
Xtreme Power designs modular single- and three-phase UPS systems for mission-critical data center applications, supporting capacities from per-rack protection to multi-hundred-kilowatt deployments. Edge data centers require different design considerations than centralized facilities. Explore UPS for Edge Data Centers.

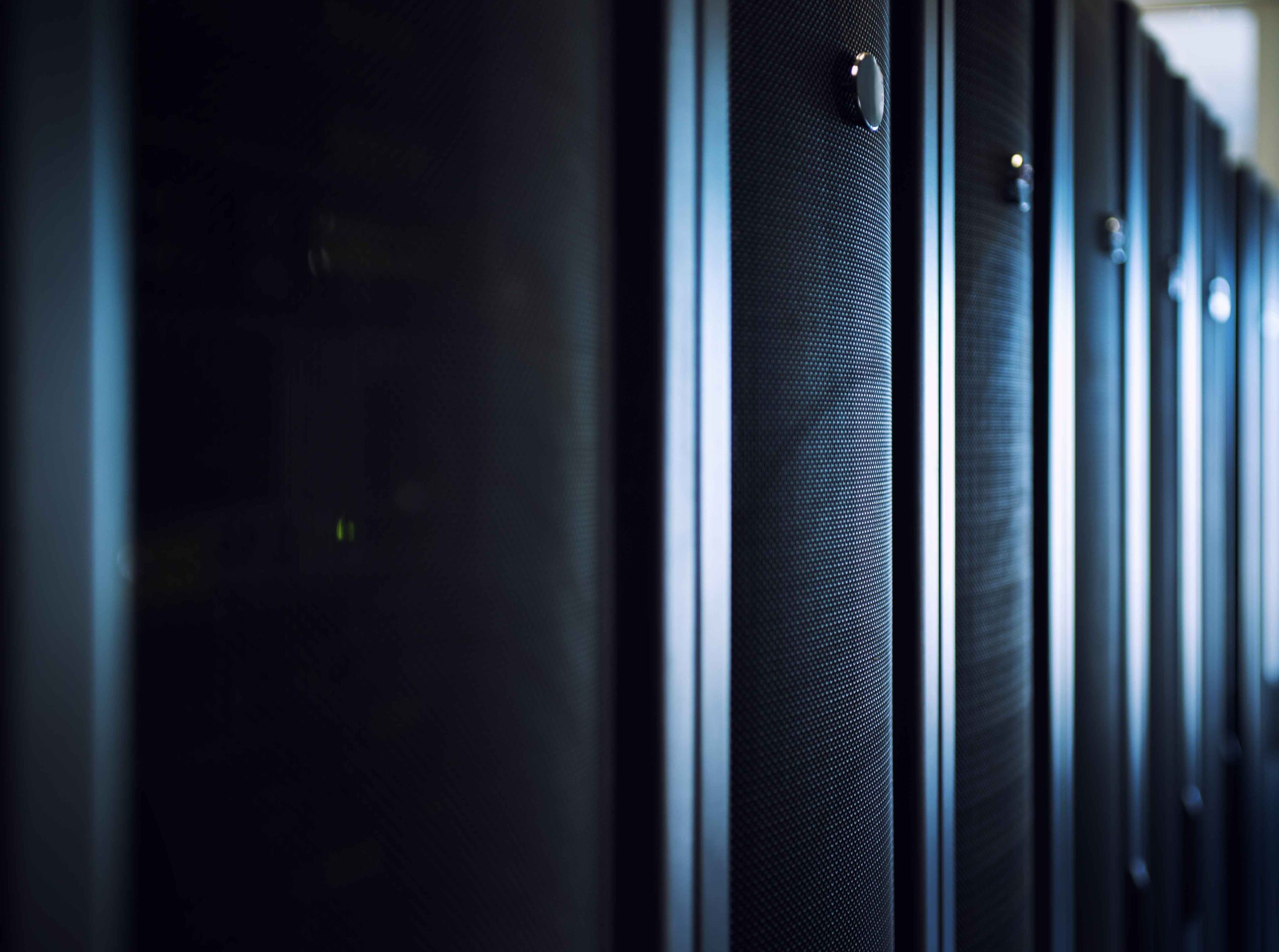

Modern data centers rely on scalable modular UPS systems to maintain continuous power availability.
Why Data Center UPS Architecture Matters
A data center UPS system performs two critical functions:
- Maintains uptime during utility outages until generator transfer
- Conditions power to protect sensitive IT infrastructure
Proper UPS design ensures:
- Clean, regulated output voltage
- Generator ride-through capability
- Redundancy for maintenance and failure tolerance
- Scalable capacity growth
UPS architecture must support both current IT load and future expansion.
Data Center UPS Design Considerations
Redundancy Topology
Common data center redundancy strategies include:
- N — Single UPS system sized for full load
- N+1 — Additional module for fault tolerance
- 2N — Two independent systems for full redundancy
- 2N+1 — Dual systems with spare capacity
Modular UPS systems simplify N+1 and scalable redundancy without full system replacement.
Distributed vs Centralized UPS Architecture
Data centers typically deploy one of two architectural approaches:
Distributed UPS Architecture
- Per-rack or row-based protection
- Modular scalability
- Reduced single points of failure
- Ideal for edge and high-density rack deployments
Centralized UPS Architecture
- Large-capacity systems supporting entire rooms or halls
- Simplified upstream distribution
- Efficient for large enterprise deployments
Hybrid approaches are increasingly common in modern data center environments.
Runtime Strategy
Most data centers design for 2–15 minutes of runtime, sufficient to bridge generator startup and transfer.
Runtime planning should account for:
- Generator start time
- Critical vs non-critical load segmentation
- Battery lifecycle cost
- Physical footprint constraints
Lithium battery systems reduce footprint and extend service life compared to traditional VRLA batteries.

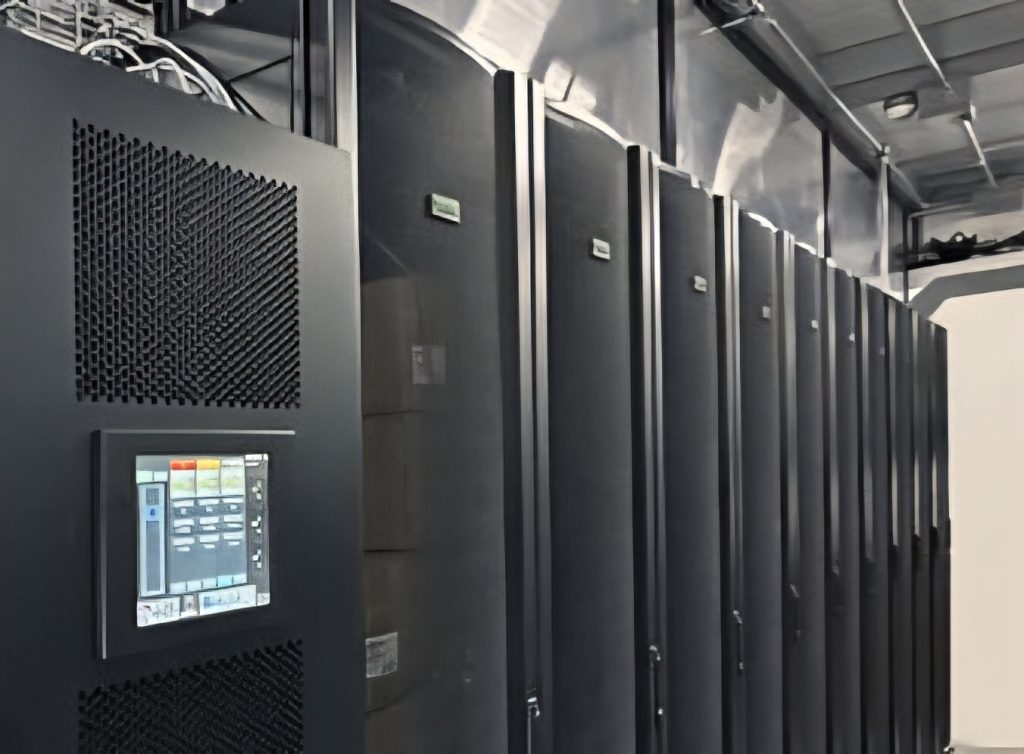

Modular UPS architecture allows data centers to scale capacity and redundancy as IT loads grow.
UPS Technology for Data Centers
Data center UPS platforms should include:
- Online double-conversion architecture
- Modular hot-swap power modules
- Unity power factor (PF = 1.0)
- Scalable battery integration
- SNMP and BMS communication support
These features support high availability and simplified maintenance.
Xtreme Power Data Center UPS Platforms
M90C Modular UPS
5–24 kW
Modular architecture for per-rack and edge deployments
https://www.xpcc.com/xtreme-power-m90c-modular-ups-systems/

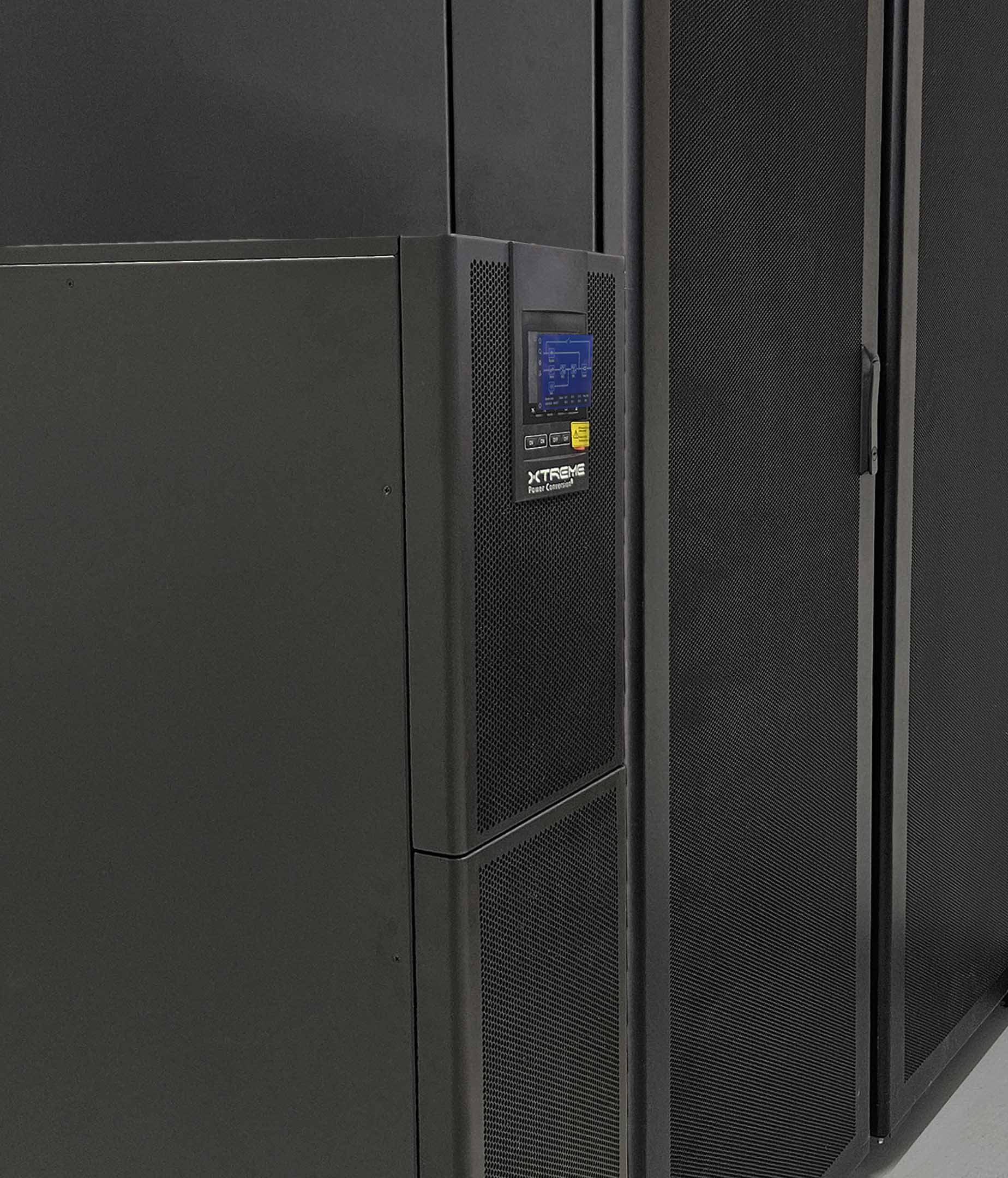

Li90 Three-Phase Lithium UPS
10–30 kW
Three-phase lithium UPS platform with up to 15-year battery design life
https://xpcc.com/3-phase-lithium-ups-li90/
M90U Modular UPS
15–140 kW
Enterprise modular UPS for row-based or centralized data center applications
https://www.xpcc.com/xtreme-power-m90u-ups-family/
Ai90 Rack Modular UPS
50–70 kW per rack
High-density rack-level UPS for distributed deployments
https://www.xpcc.com/ai90-modular-ups-systems/

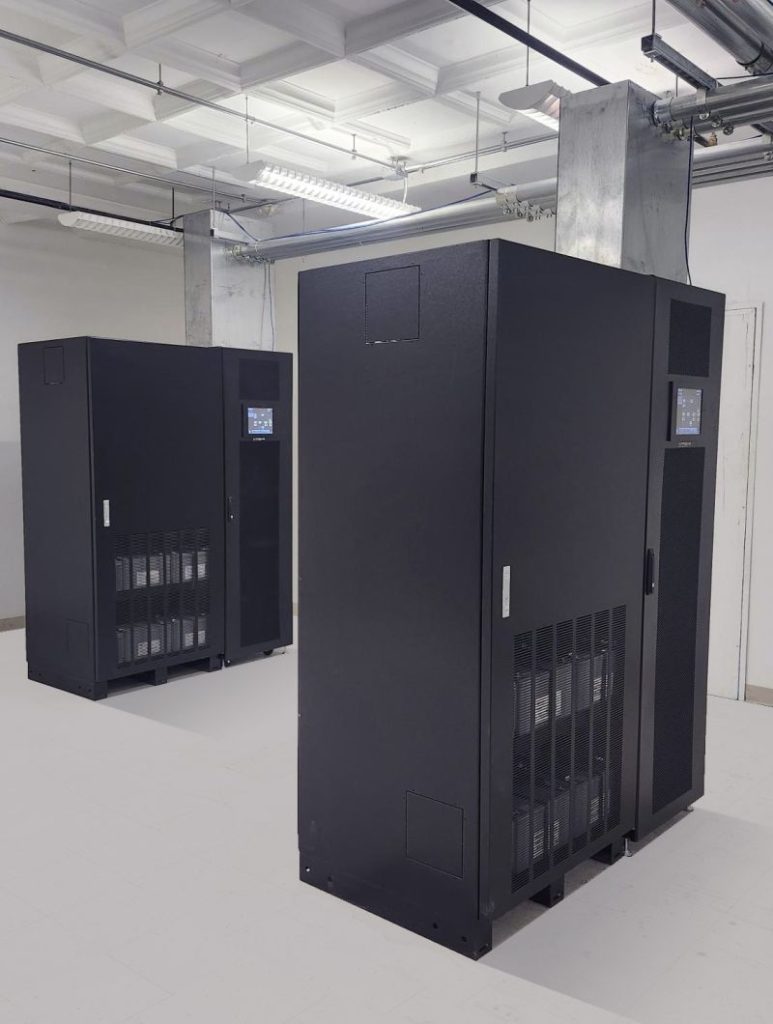

X90 Series Modular UPS
50–700 kW scalable modular architecture for large data halls
https://www.xpcc.com/x90-modular-ups-series/
Lithium Battery Strategy for Data Centers
Xtreme Power lithium UPS platforms provide:
- Up to 15-year battery design life
- Reduced footprint and weight
- Stable runtime over lifecycle
- Operation up to 50 °C (122 °F), depending on configuration
Explore Lithium UPS Systems →
https://www.xpcc.com/lithium-ups/
Calculate Your Data Center UPS Requirements
UPS selection depends on total kW load, redundancy configuration, runtime requirement, and growth planning.
Use the Xtreme Power UPS Sizing Tool to calculate:
- Required kVA capacity
- Runtime
- Battery configuration
- Recommended UPS platform
Use the UPS Sizing Tool →
https://xpcc.com/ups-sizing-tool/
