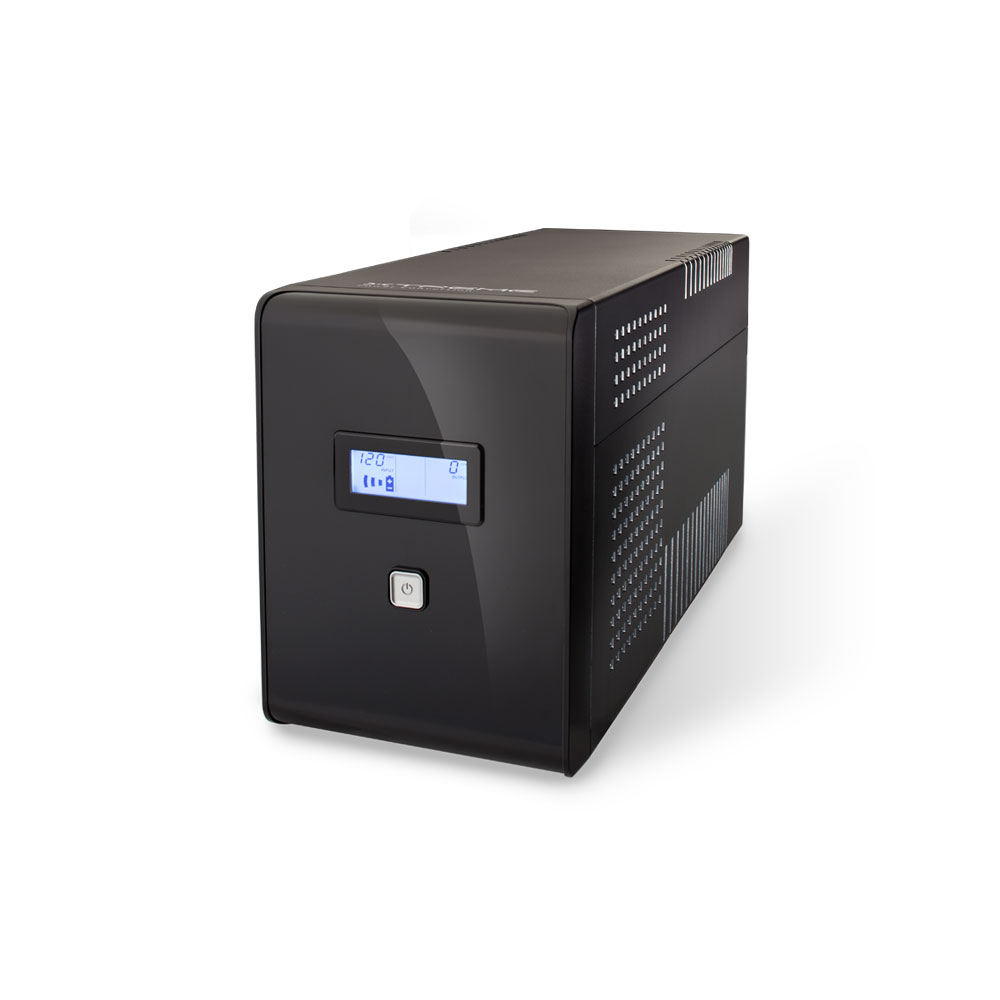

S70 Line Interactive UPS
500VA-2000VA
120VAC
Equip your office with reliable battery backup and protection from power outages.
Power quality disturbances including voltage fluctuations, over voltage, under voltage, and voltage blackouts occur unexpectedly. In the event of any of these common power problems, the S70 UPS activates to protect all connected critical loads—ranging from your computer to your business telephone system.
The S70 streamlines installation to just a few simple steps, allowing backup power protection right out of the box. The smart LCD screen offers real-time monitoring of UPS parameters while shutdown and monitoring software enables UPS and remote device control over your network.
Product Snapshot
- Available models: 500VA, 700VA, 1000VA, 1500VA, 2000VA
- Smart LCD display
- Auto restart
- Automatic voltage regulation (AVR)
- UL and cUL listed, RoHS compliant
- Primary applications: home or small office, desktop computers, routers, and switches
- 3 years electronics, 3 years battery warranty (USA and Canada)
[table colalign=”left|left|center|center|center|center|center”]
,MODEL NUMBER,S70-500,S70-700,S70-1000,S70-1500,S70-2000
INPUT,Capacity,500VA (300W),700VA (420W),1000VA (600W),1500VA (900W),2000VA (1200W)
,Voltage,120VAC[attr colspan=”5″]
,Frequency,60Hz[attr colspan=”5″]
OUTPUT,Voltage,120VAC[attr colspan=”5″]
,Waveform,”Sine wave (normal), simulated sine wave (battery mode)” [attr colspan=”5″]
,Frequency,60Hz ± 1Hz[attr colspan=”5″]
,Transfer time,4ms (typical)[attr colspan=”5″]
BATTERY,Battery type,”Sealed, maintenance-free lead acid”[attr colspan=”5″]
,Battery quantity and size,(1) 12V 7AH,(1) 12V 9AH,(2) 12V 7AH,(2) 12V 9AH[attr colspan=”2″]
,Recharge,4–6 hours to 90% capacity[attr colspan=”5″]
PHYSICAL,UPS dimensions (W x D x H),3.9 x 11.3 x 5.6 in[attr colspan=”2″],5.7 x 13.8 x 6.3 in,5.7 x 15.6 x 8.1 in[attr colspan=”2″]
,Shipping dimensions,5.5 x 13.1 x 8.7 in[attr colspan=”2″],7.5 x 17.4 x 10 in,9.1 x 19.3 x 11.3 in[attr colspan=”2″]
,UPS weight,9.5 lbs,10.8 lbs,17.6 lbs,24.5 lbs,25.4 lbs
,Shipping weight,10.1 lbs,11.5 lbs,19.4 lbs,27.1 lbs,28.0 lbs
,Line cord,5 ft 5–15P,C13 to 5–15P*,5 ft 5–15P,4 ft 5–15P,4 ft 5–20P
,Receptacles,(4) 5–15R[attr colspan=”2″],(6) 5–15R,(8) 5–15R[attr colspan=”2″]
,Cooling,Convection cooled[attr colspan=”3″],Fan cooled[attr colspan=”2″]
ENVIRONMENT,Operating temperature,32–104°F (0–40°C) [attr colspan=”5″]
,Humidity,0–90%[attr colspan=”5″]
,Altitude,”11,500 ft above sea level”[attr colspan=”5″]
INDICATORS & ALARMS,LCD display,”AC mode, battery mode, load/battery level, input/output voltage, overload fault, low battery”[attr colspan=”5″]
,Data line protection,N/A[attr colspan=”2″],RJ45[attr colspan=”3″]
APPROVALS,,RoHS[attr colspan=”2″],”UL, cUL, RoHS”[attr colspan=”3″]
WARRANTY,,”3 years electronics, 3 years battery (USA and Canada)” [attr colspan=”5″]
COMMUNICATIONS INTERFACE,,USB[attr colspan=”4″], “USB, RS-232”
INCLUDED IN BOX,,”Shutdown and monitoring software, USB cable, user manual”[attr colspan=”5″]
[/table]
*Removable input cord connects to C14 inlet
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions

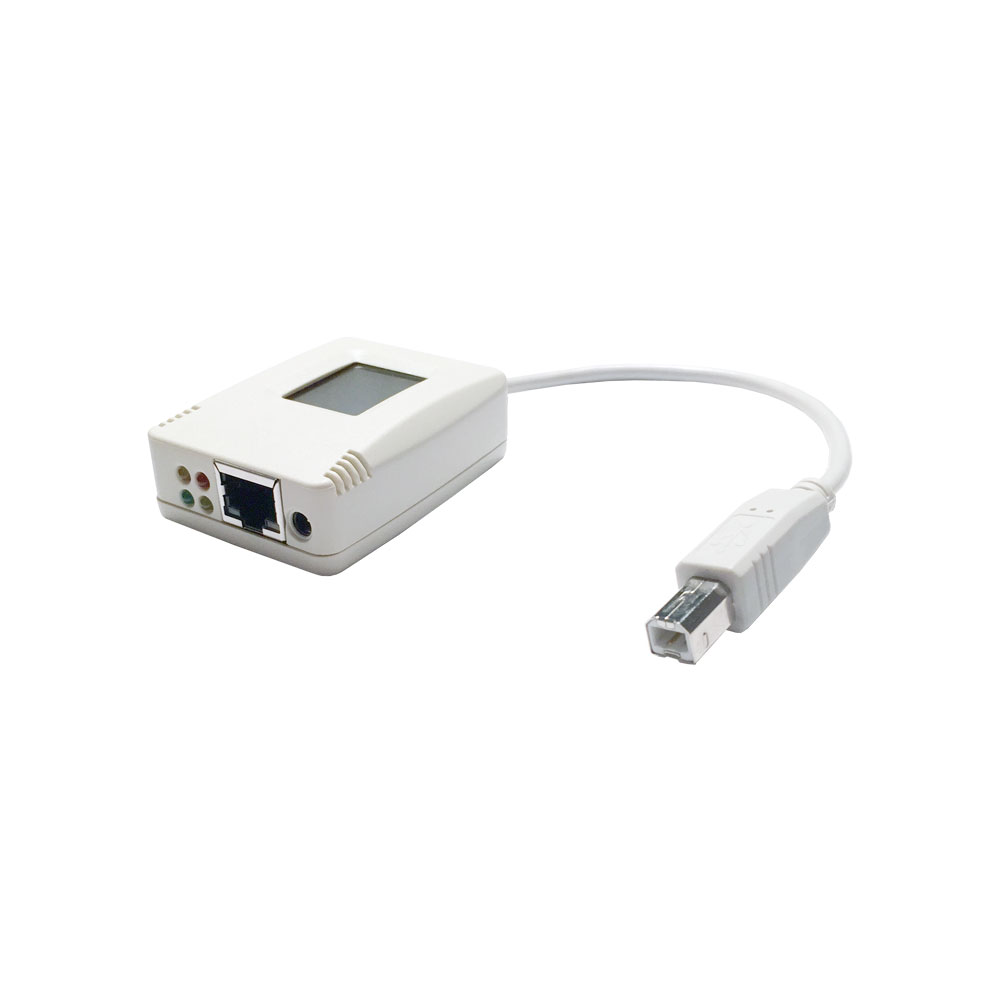

,SNMP-USB,External Web/SNMP Card,1 lb,7.25″ x 6″ x 2.5″
[/table]
