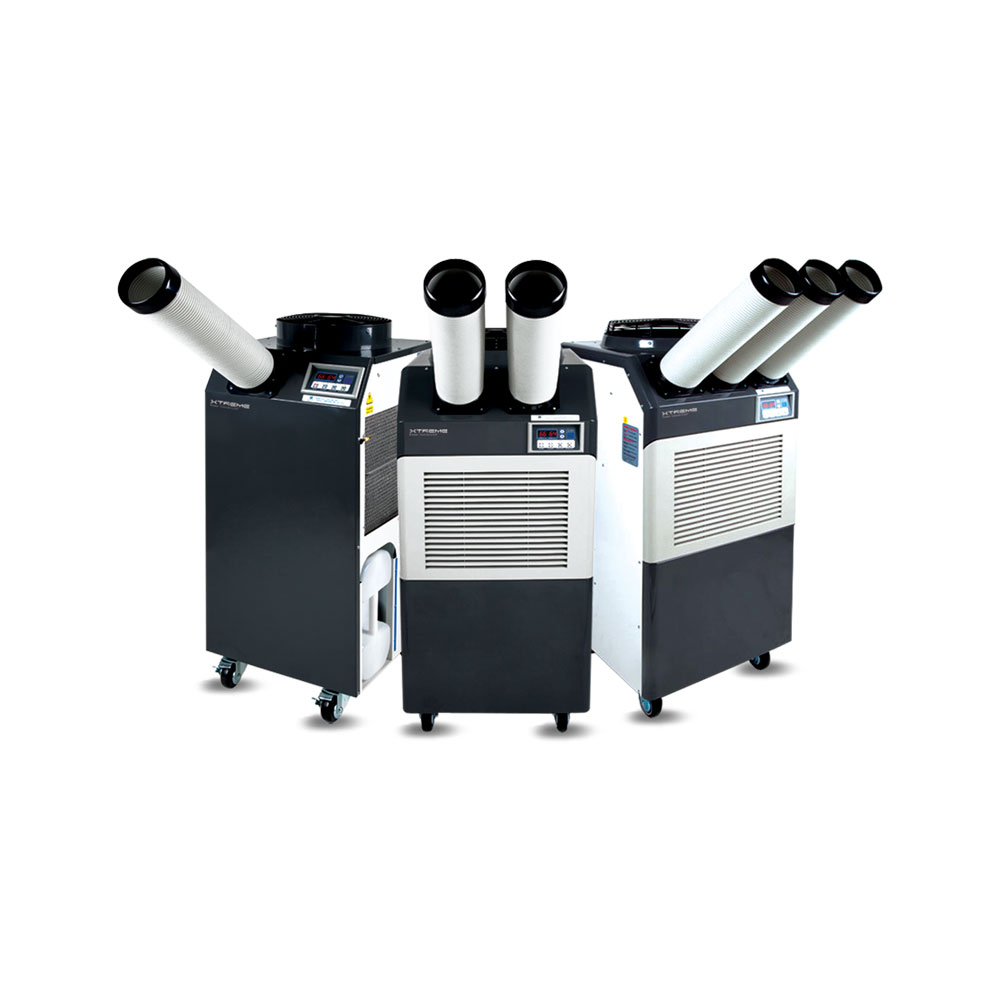

XC Portable Cooling
13,200 BTU/H, 21,000 BTU/H, 29,000 BTU/H
Protect critical electronics from high temperature environments.
XC portable cooling units are designed to provide cooling for rooms filled with heat generating electronics. Networks, computers, communications, and office equipment will shut down when temperatures increase. XC units provide cost effective spot cooling and are easy to install: simply plug it in and turn it on.
Product Snapshot
- Available models: 13,200 BTU/H, 21,000 BTU/H, 29,000 BTU/H
- Primary, backup, or after hours cooling
- Easy to install; heavy duty, commercial grade construction
- Uses earth friendly R410A refrigerant
- Primary applications: networks, communications, server rooms
- 1 year warranty (USA and Canada)

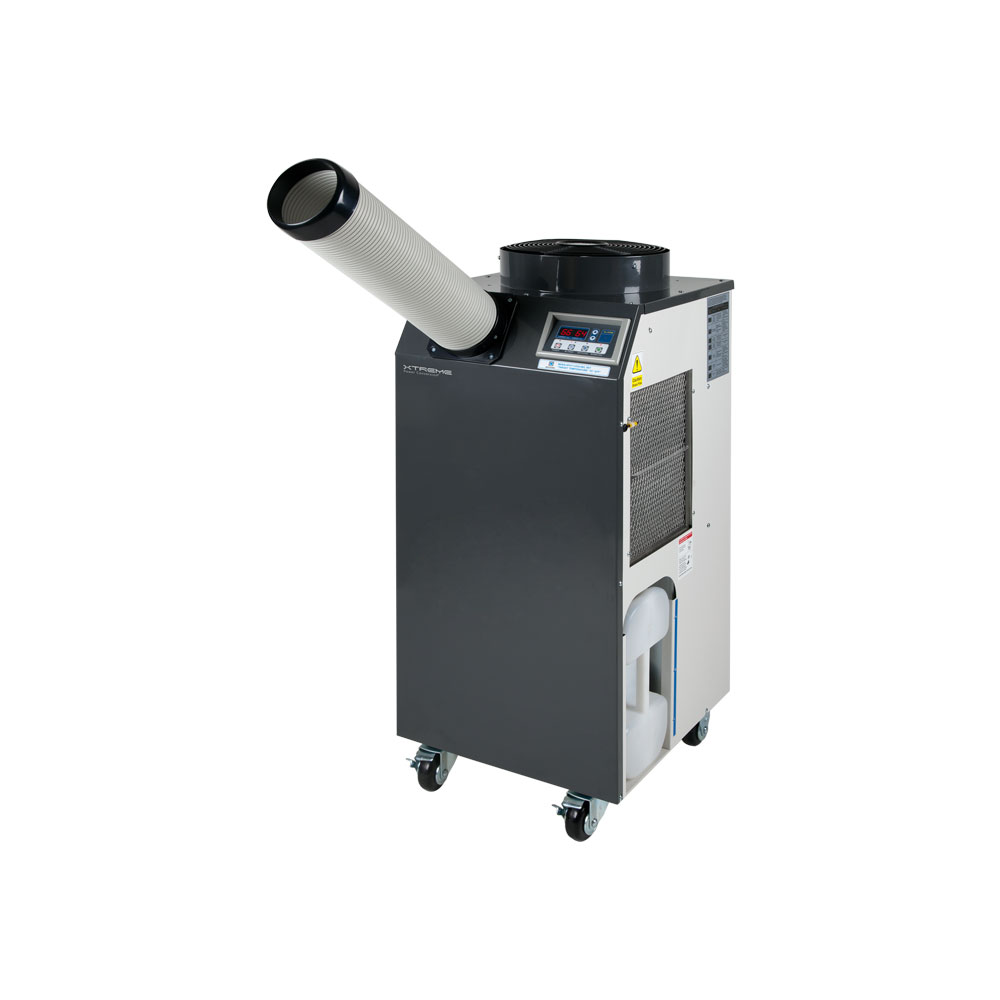

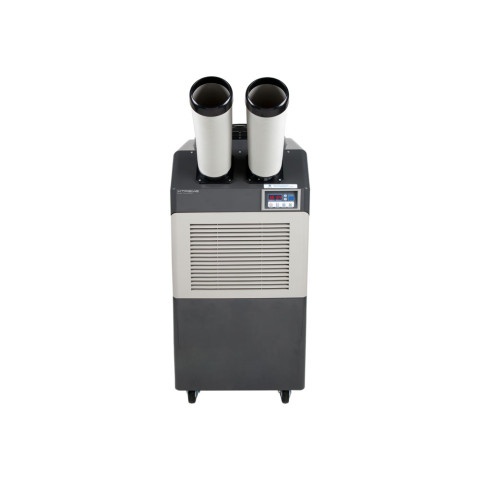

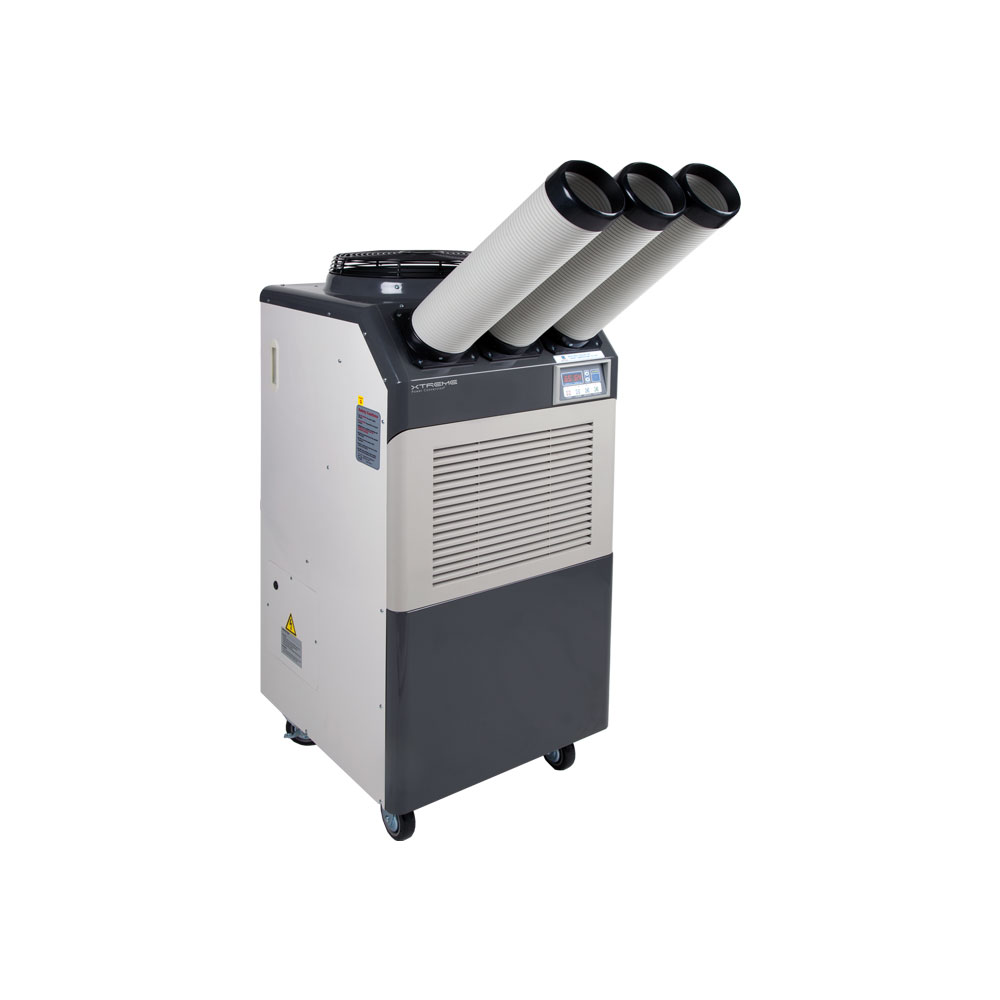

| MODEL NUMBER | XC-14A | XC-22A | XC-30A | |
|---|---|---|---|---|
| COOLING | Cooling capacity | 13,200 BTU/H | 21,000 BTU/H | 29,000 BTU/H |
| Air flow (high/low) evaporator | 375/285CFM | 464/393CFM | 571/500 CFM | |
| Air flow condenser | 610CFM | 857CFM | 1142CFM | |
| Refrigerant | R410A, 15.9oz | R410A, 42.3oz | R410A, 39.9oz | |
| Free protection control | Cycles the compressor off preventing unit damage if coil freezes | |||
| ELECTRICAL | Power supply voltage | 115V | 208/230V | |
| Power supply frequency | 60Hz | 60Hz | 60Hz | |
| Current consumption | 11.5A | 11.0/10.0A | 15.0/14.0A | |
| Circuit breaker size | 15A | 15A | 20A | |
| Power consumption | 1.4kW | 2.3kW | 3.1kW | |
| Compressor input | 1.2kW | 2.0kW | 2.4kW | |
| Motor (high/low) evaporator | 0.091/0.089kW | 0.24/0.20kW | 0.13/0.11kW | |
| Motor input condenser | 0.08kW | 0.26kW | 0.24kW | |
| NEMA plug | 5–15P | 6–15P | 6–20P | |
| Power cord gauge | 12AWG | 14AWG | 12AWG | |
| Power cord length | 10 ft | 10 ft | 10 ft | |
| Automatic restart | Unit automatically restarts when power is reapplied after outage | |||
| PHYSICAL | Dimensions (W x D x H) | 17.5 x 19.9 x 43.3 in | 22.0 x 24.4 x 50.4 in | |
| Weight | 132 lbs | 198 lbs | 208 lbs | |
| Air filter | Aluminum | Aluminum/vinyl chloride | ||
| Operating conditions | 64–113°F | 64–113°F | 64–113°F | |
| Hot air duct diameter | 12 in | 16 in | 16 in | |
| Maximum duct length | 30 ft | 30 ft | 30 ft | |
| Condensate tank capacity | 3 gal | 3 gal | 3 gal | |
| Multiple application accessories | Ducting and hose options, condensate pump kits, remote control panel, ceiling tile kits | |||
| APPROVALS | UL 484 | |||
| WARRANTY | 1 year warranty (USA and Canada) | |||
| Model | Description | Unit Weight | Unit Dimensions | |
|---|---|---|---|---|
 |

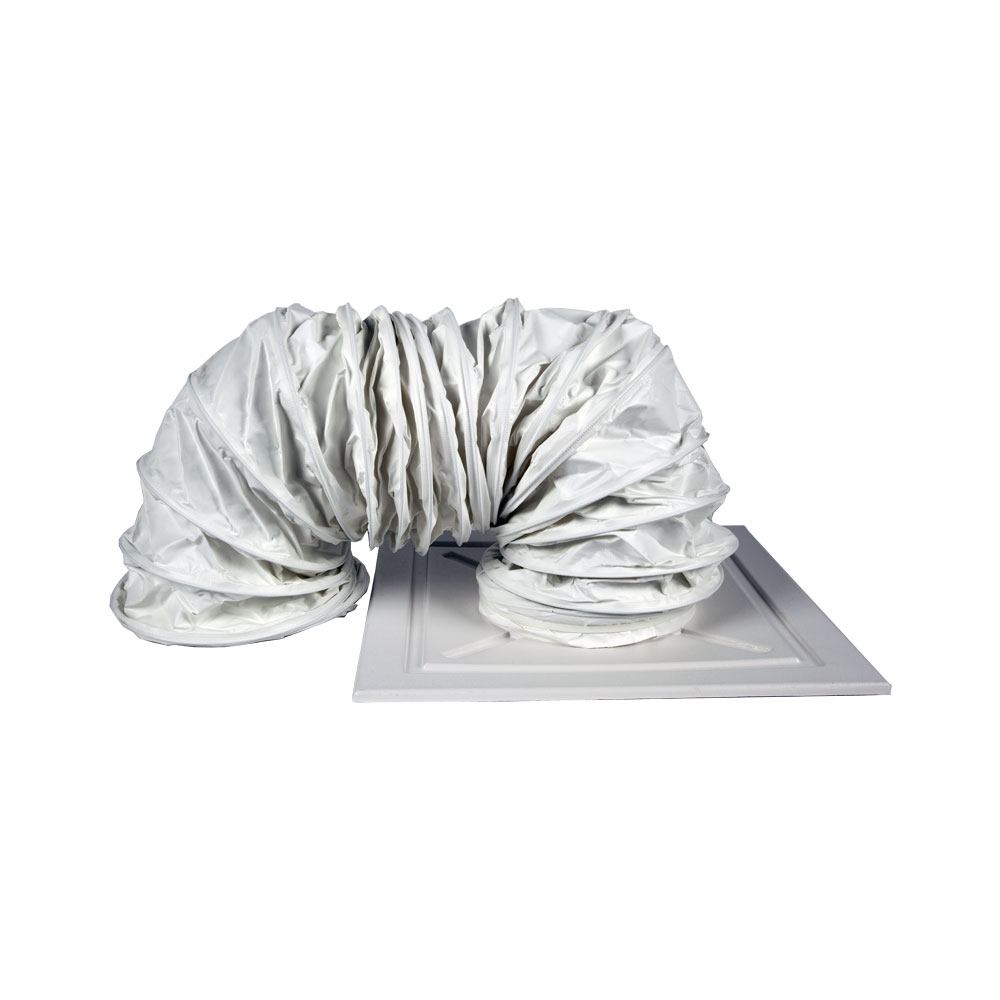

XC-TILE12 | XC-14A Warm Air Discharge Kit | 8 lbs | 26.0" x 26.0" x 6.0" |
 |

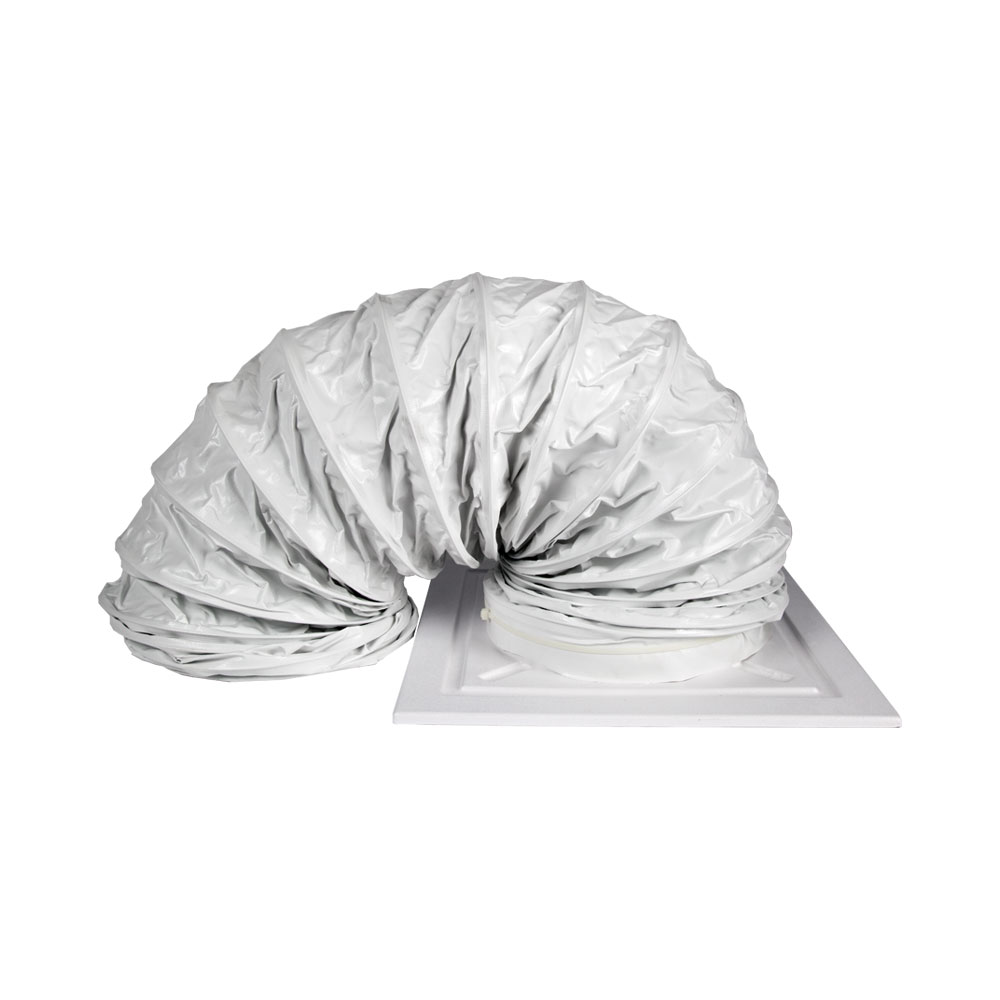

XC-TILE16 | XC-22A, XC-30A Warm Air Discharge Kit | 9 lbs | 26.0" x 26.0" x 6.0" |
 |

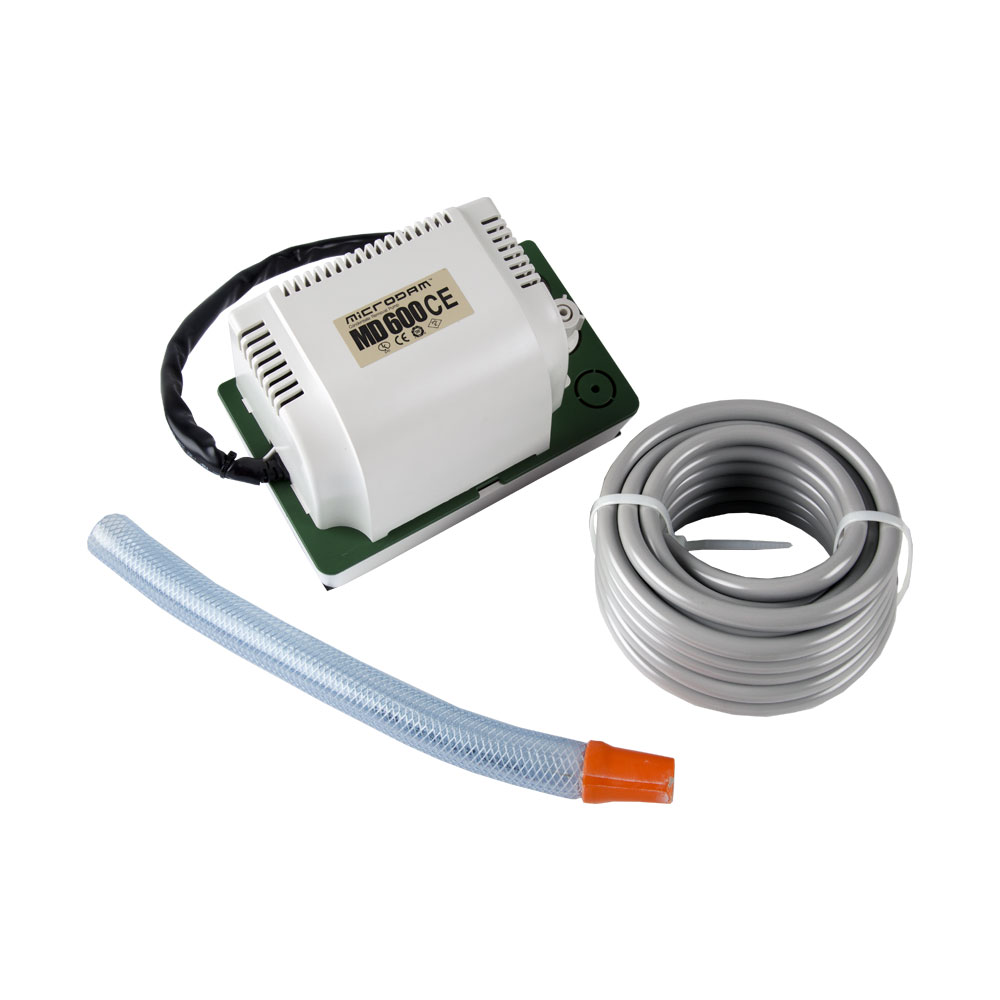

XC-PUMP1 | XC-14A Condensate Pump Kit | 5 lbs | 9.0" x 7.8" x 5.9" |
|
XC-PUMP1 | XC-22A,XC-30A Condensate Pump Kit | 5 lbs | 9.0" x 7.8" x 5.9" |
 |

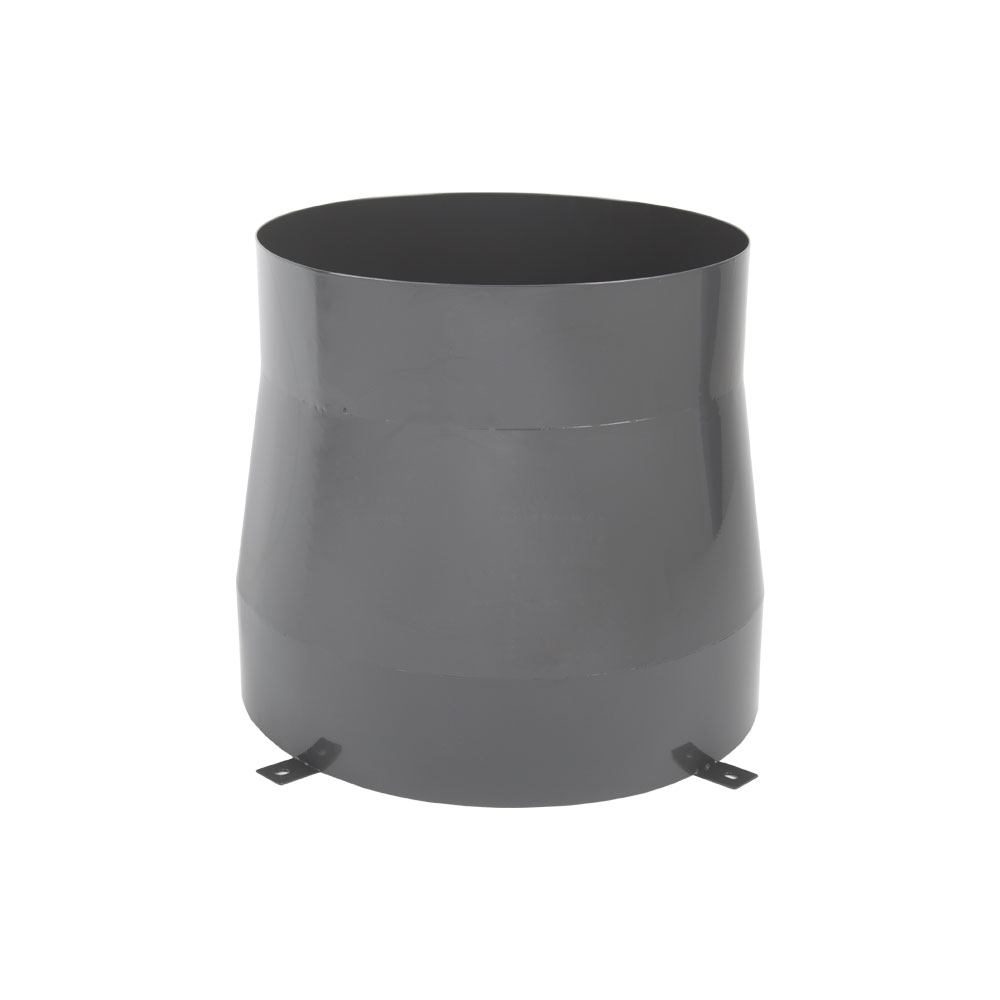

XC-FL12 | XC-14A Exhaust Flange | 9 lbs | 14.9" x 12.5" x 14.9" |
 |

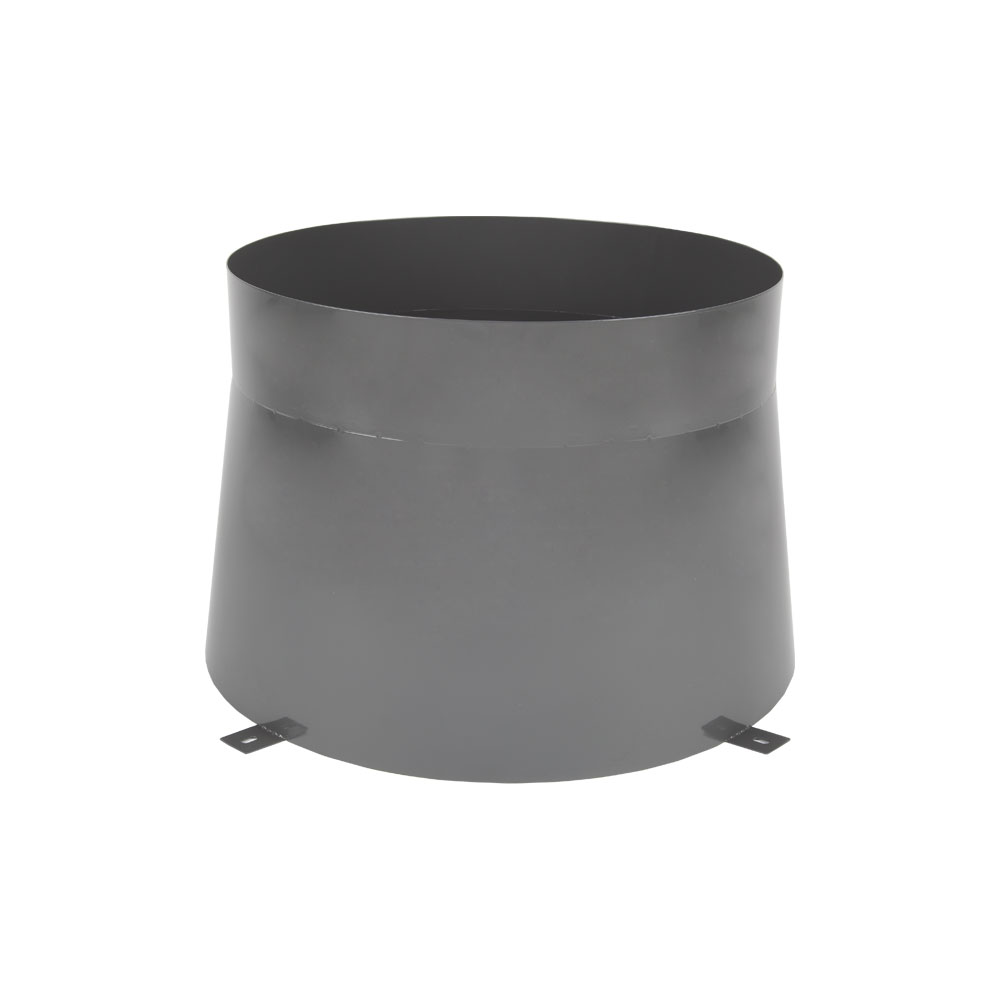

XC-FL16 | XC-22A, XC-30A Exhaust Flange | 11 lbs | 19.6" x 12.5" x 19.6" |
 |

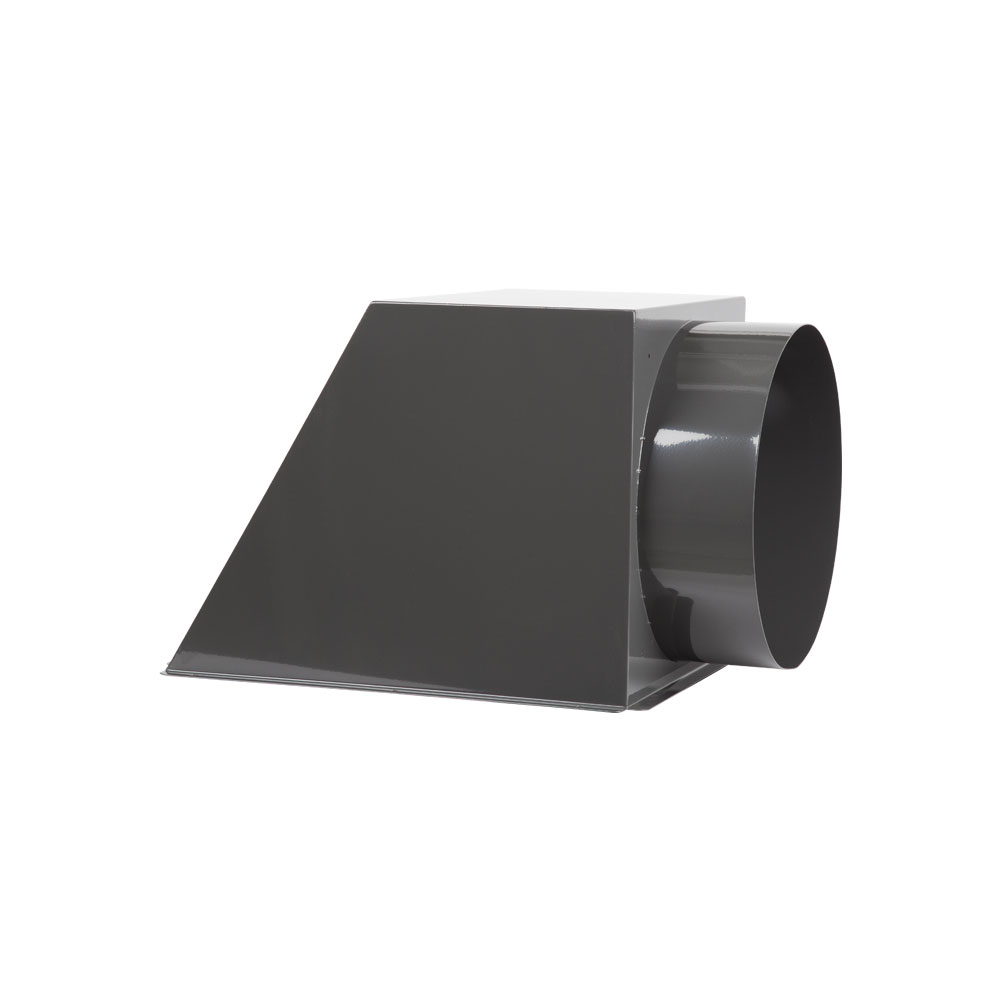

XC-ADPT1 | XC-14A Condenser Plenum | 12 lbs | 13.4" x 14.6" x 21.7" |
 |

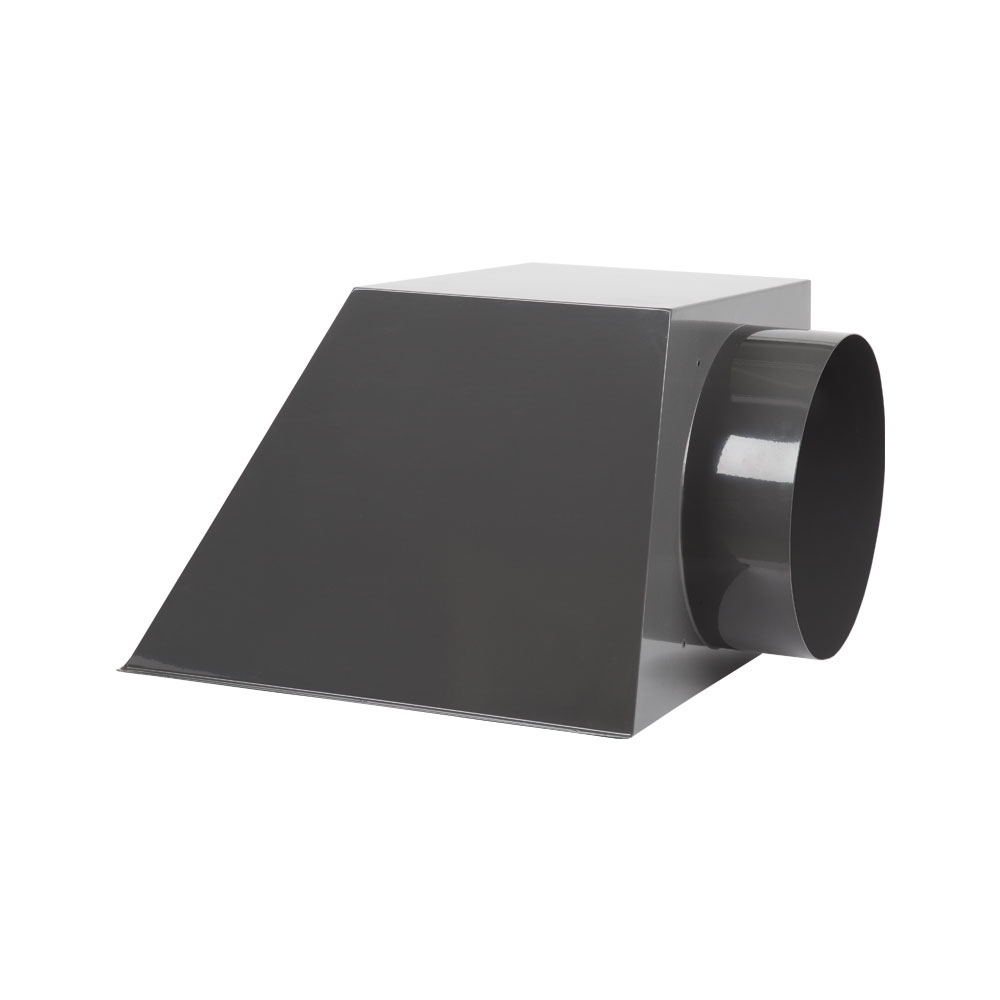

XC-ADPT2 | XC-22A, XC-30A Condenser Plenum | 17 lbs | 15.0" x 22.4" x 25.2" |
