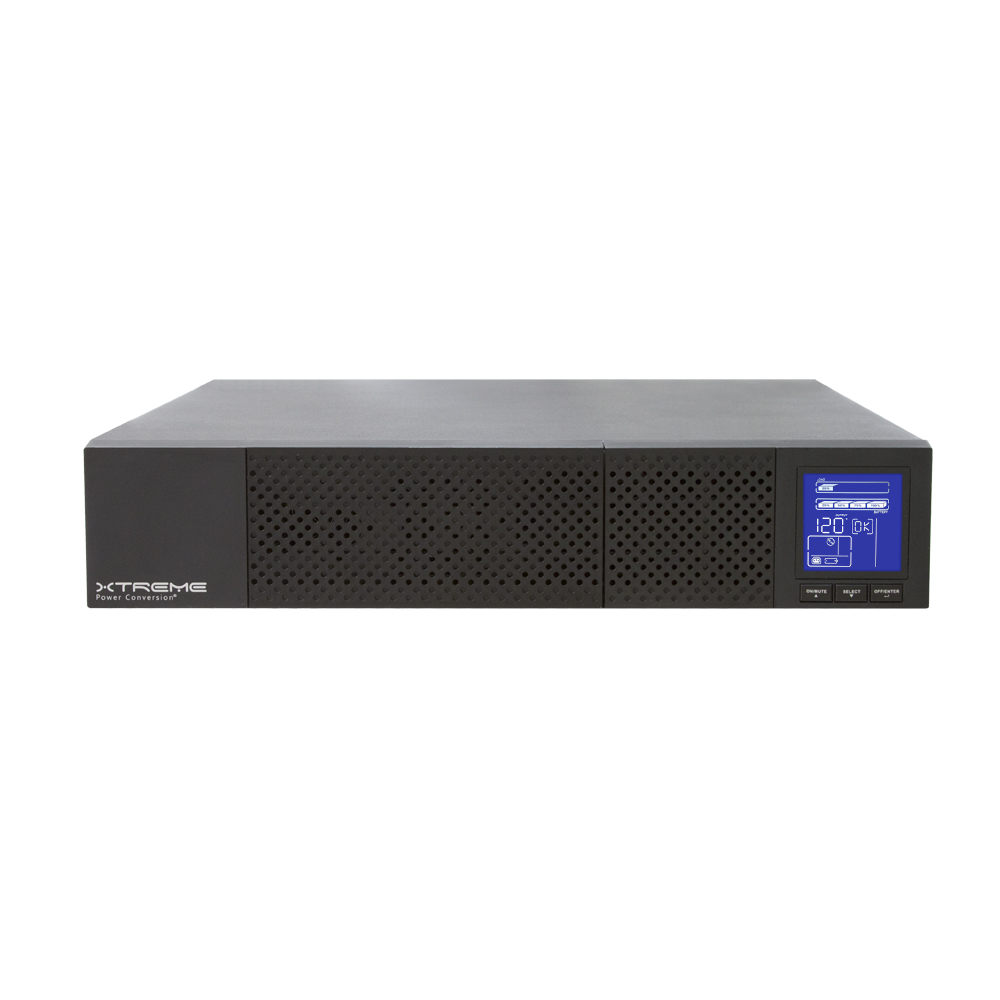

P90g Online UPS
1500VA, 3000VA
208/230VAC
Slim 2U form factor UPS delivers clean and continuous power to IT equipment during power disturbances.
The P90g is a true online line interactive UPS that delivers continuous, high quality AC power to servers and network equipment with no break when transferring to battery.
The P90g provides tower, rack, and wall mount options. It protects your equipment from blackouts, brownouts, sags, surges, and noise interference. The P90g offers the lowest total cost of ownership by cutting energy costs and lowering heat output.
Product Snapshot
- Available models: 1500VA, 3000VA
- 98% efficiency in ECO mode
- Tower, wall, 2-post and 4-post rack mounting configurations available
- Extended battery runtimes with optional matching battery modules
- CE, RoHS
- 3 years electronics, 3 years battery warranty (USA and Canada)
| MODEL NUMBER | P90g-1500 | P90g-3000 | |
|---|---|---|---|
| CAPACITY | Power rating | 1500VA (1350W) | 3000VA (2700W) |
| INPUT | Voltage range | 110–300VAC* | |
| Frequency | 50/60Hz auto sensing | ||
| Surge protection | > 800J | ||
| OUTPUT | Voltage | 208/220/230/240VAC** | |
| Waveform | Pure sine wave, zero transfer time | ||
| Frequency | 50/60Hz ± 0.5Hz | ||
| BATTERY | Battery type | Sealed, maintenance-free lead acid | |
| Battery quantity and size | (3) 12V 9AH | (6) 12V 9AH | |
| Typical recharge | < 4 hours to 90% with 1A charger current | ||
| PHYSICAL | Dimensions (W x D x H) | 17.2 x 18.9 x 3.5 in | 17.2 x 25.8 x 3.5 in |
| Weight | 41.7 lbs | 65.7 lbs | |
| Line cord | 8 ft, C13 to L6–20P | 8 ft, C19 to L6–20P | |
| Receptacles | (8) IEC C13 | (1) IEC C19 + (6) IEC C13 | |
| OPTIONAL BATTERY PACKS | Model number | P90-BP36 / 36E | P90-BP72 |
| Dimensions (W x D x H) | 17.2 x 19.9 x 3.5 in / 17.2 x 24.8 x 3.5 in (E) | 17.2 x 24.6 x 3.5 in | |
| Weight | 58.1 lbs / 104.4 lbs (E) | 104.4 lbs | |
| Battery | (6) 12V 9AH, 36V / (12) 12V 9AH, 36V (E) | (12) 12V 9AH, 72V | |
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | |
| Audible noise | < 45dBA | ||
| Altitude | 11,500 ft above sea level | ||
| APPROVALS | CE, RoHS | ||
| WARRANTY | 3 years electronics, 3 years battery warranty (USA and Canada) | ||

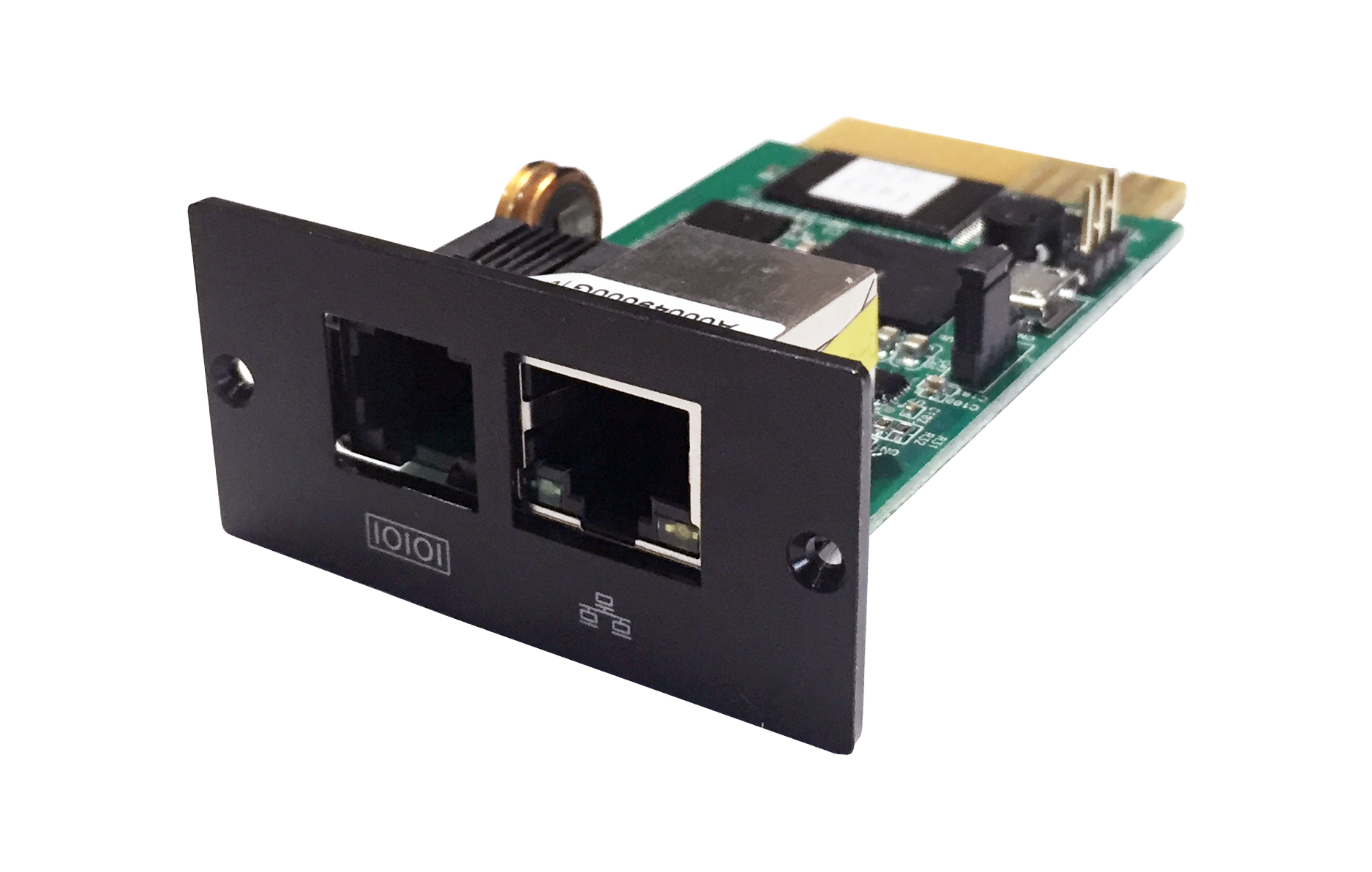

| COMMUNICATIONS INTERFACE | RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) | ||
| INCLUDED IN BOX | Software CD, horizontal brackets, tower pedestals, user manual | ||
| AVAILABLE OPTIONS | 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket | ||
*Depending on load level;
**P90g-3000 capacity derates 20% at 208VAC output voltage
