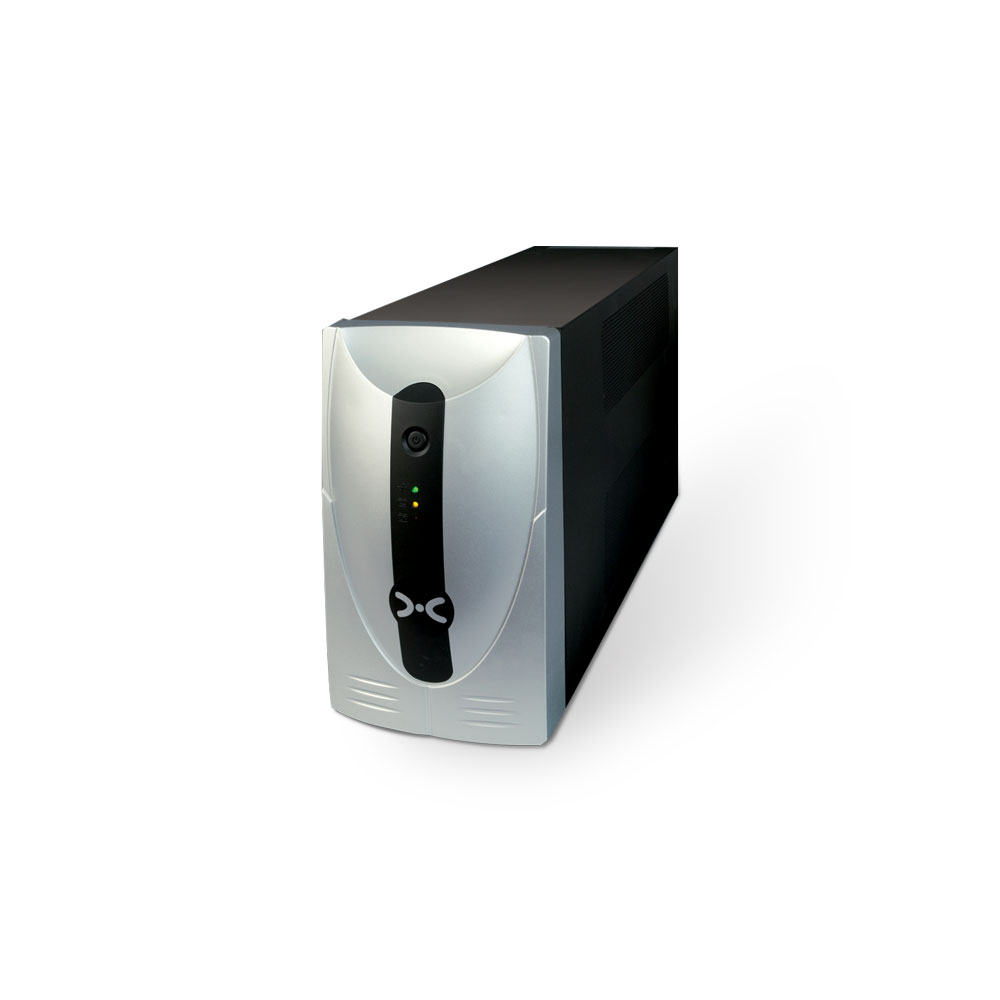

XVT Line Interactive UPS
XVT models are discontinued. Stock is available, but in limited quantities
600VA-1500VA
120VAC
Cost effective backup power solution for small office and point of sale applications.
The XVT is the ideal power protection solution for servers, VoIP equipment, business telephone systems, desktop computers, and other network grade equipment. The XVT provides integral surge and lightning protection.
Product Snapshot
- Available models: 600VA, 800VA, 1200VA, 1500VA
- Automatic Voltage Regulation (AVR)
- Intelligent battery management
- UL, cUL, FCC agency listed
- Protection for short circuit and overload conditions
- Primary applications: servers, VoIP equipment, desktop computers
- 2 years electronics, 2 years battery warranty (USA and Canada)
| MODEL NUMBER | XVT-600 | XVT-800 | XVT-1200 | XVT-1500 | ||
|---|---|---|---|---|---|---|
| INPUT | Capacity | 600VA (360W) | 800VA (480W) | 120VA (720W) | 1500VA (900W) | |
| Voltage | 120VAC | |||||
| Frequency | 60Hz ± 5Hz | |||||
| OUTPUT | Voltage | 120VAC | ||||
| Waveform | Sine wave (normal), simulated sine wave (battery mode) | |||||
| Frequency | AC mode follows utility battery mode 60Hz ± 0.5Hz | |||||
| Transfer time | 4 ms (typical) | |||||
| Surge protection | 320 joules | |||||
| Input protection | Compliance with IEEE 587 | |||||
| Short circuit | Breaker | |||||
| BATTERY | Battery type | Sealed, maintenance-free lead acid | ||||
| Battery quantity and size | (1) 12V 7AH | (1) 12V 9AH | (2) 12V 7AH | (2) 12V 9AH | ||
| Recharge | Less than 10 hours 100% capacity (2 hours typical) | |||||
| Backup time | 3 min (100% load) ≥ 8 min (50% load) | |||||
| Charge current | 1.5A (max) | |||||
| PHYSICAL | UPS dimensions (W x D x H) | 3.7 x 14.6 x 6.2 in | 4.9 x 16.9 x 8.7 in | |||
| Shipping dimensions | 6.1 x 16.2 x 10.2 in | 7.5 x 18.9 x 12.8 in | ||||
| UPS weight | 15.3 lbs | 16.8 lbs | 27.6 lbs | 31.3 lbs | ||
| Shipping weight | 17.6 lbs | 19.2 lbs | 29.8 lbs | 32.4 lbs | ||
| Line cord | 6 ft | NEMA 5–15P | ||||

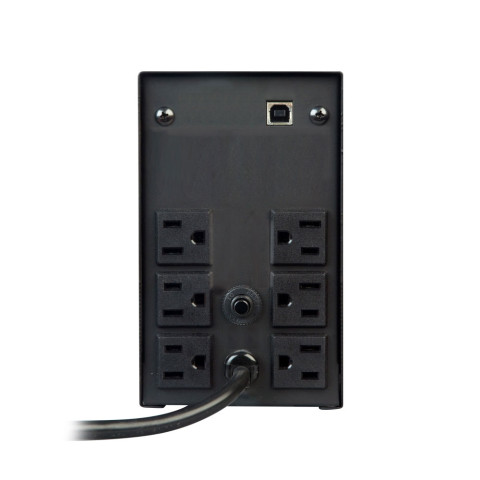

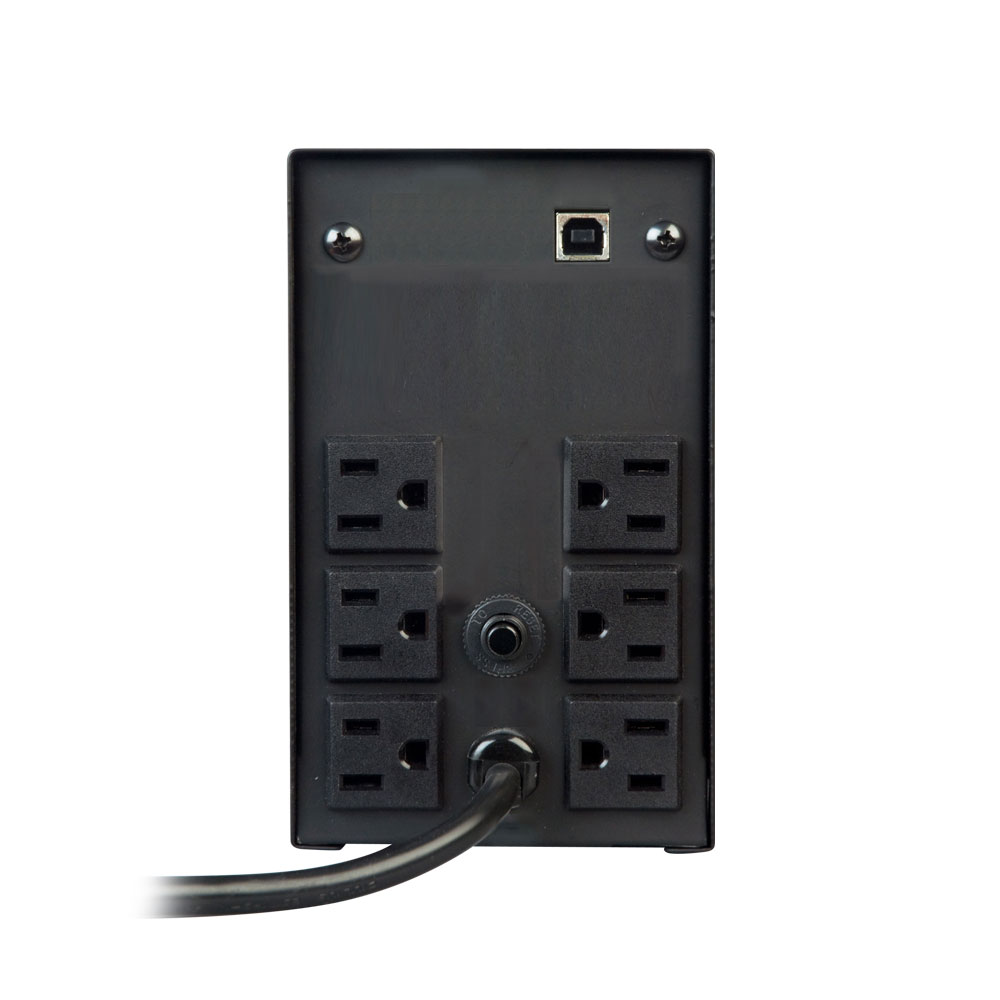

| Receptacles | (6) NEMA 5–15R (3 surge protected; 3 battery back up) | |||||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | ||||
| Humidity | 0–90% | |||||
| Audible noise | < 45 dBA | |||||
| Altitude | 11,500 ft above sea level | |||||
| INDICATORS & ALARMS | AC mode | Green LED, orange LED on, red LED off, no beep | ||||
| Charging battery | Orange LED on until 80% charge | |||||
| Battery mode | Green and orange LED off, red LED flash, buzzer slowly beeps | |||||
| Battery low | Green and orange LED off, red LED, buzzer beeps quickly | |||||
| APPROVALS | UL, cUL, FCC | |||||
| WARRANTY | 2 years electronics, 2 years battery (USA and Canada) | |||||
| COMMUNICATIONS INTERFACE | USB | |||||
| INCLUDED IN BOX | PowerManager CD, USB cable, user manual | |||||
